10 Expansions Cards
You can find information about availability and order numbers on page 135.
Expansions cards can only be built into amplifiers without option -FN or -EC!
10.1 Guide to installation of expansion cards
Before you start working, safely disconnect the device from any voltage, that means nei-
ther the electrical power supply nor the 24 V auxiliary voltage of the servo amplifier nor
the supply voltages of any other connected equipment is switched on.
l

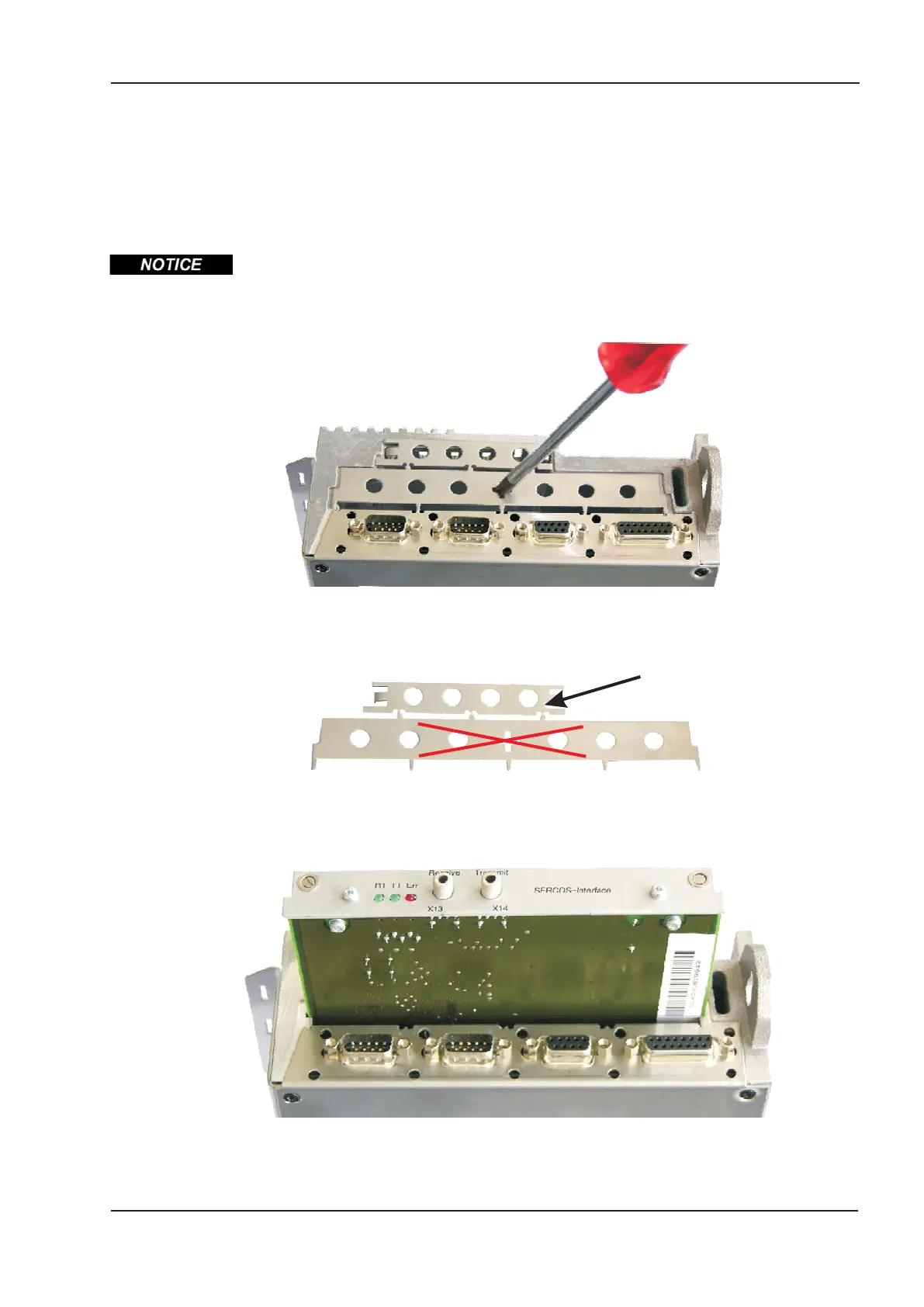

Use a suitable screwdriver to lever off the cover of the option slot.
l
Take care that no small items (such as screws) fall into the open option slot.
l
Lever off the small metall sheet and push it back to the small slot. Dispose the big
metall sheet.
l
Push the expansion card carefully into the provided guide rails of the main slot, with-
out twisting it.
l
Press the expansion card firmly into the slot.
l
Screw the screws on the front cover into the threads in the fixing lugs. This ensures
that the connectors make good contact.
S300 Instructions Manual 115
Kollmorgen 02/2017 Expansions Cards
