Kollmorgen SERVOSTAR 300 User Manual

10.5 Expansion card -DEVICENET-
This section describes the DeviceNet expansion card for S300.
Information on the range of functions and the software protocol can be found in our man
-
ual “DeviceNet Communication Profile”.
10.5.1 Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmis-
sion times are all described in the “DeviceNet Specification, Volume I, II, Edition 2.0”,
published by ODVA.

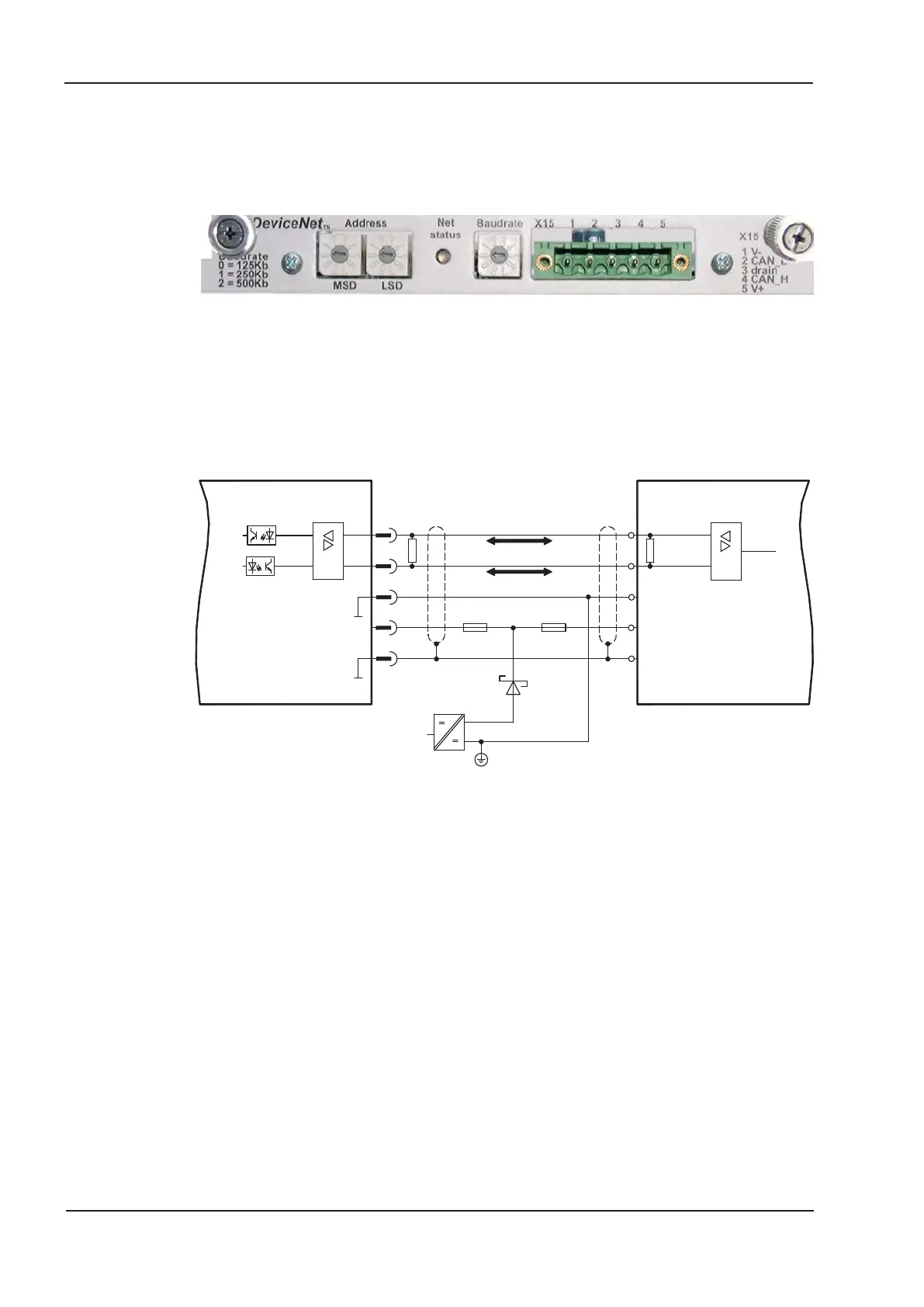

10.5.2 Connection diagram
122 S300 Instructions Manual
Expansions Cards 02/2017 Kollmorgen
11-25V
CANH
CANL
X15
5
3
AGND
1
2
4
Shield
DeviceNet server/client
V-
120 *Ù
120 *Ù
* according to line impedance
S300
