Ch.4 Description of Screens
< 102 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2

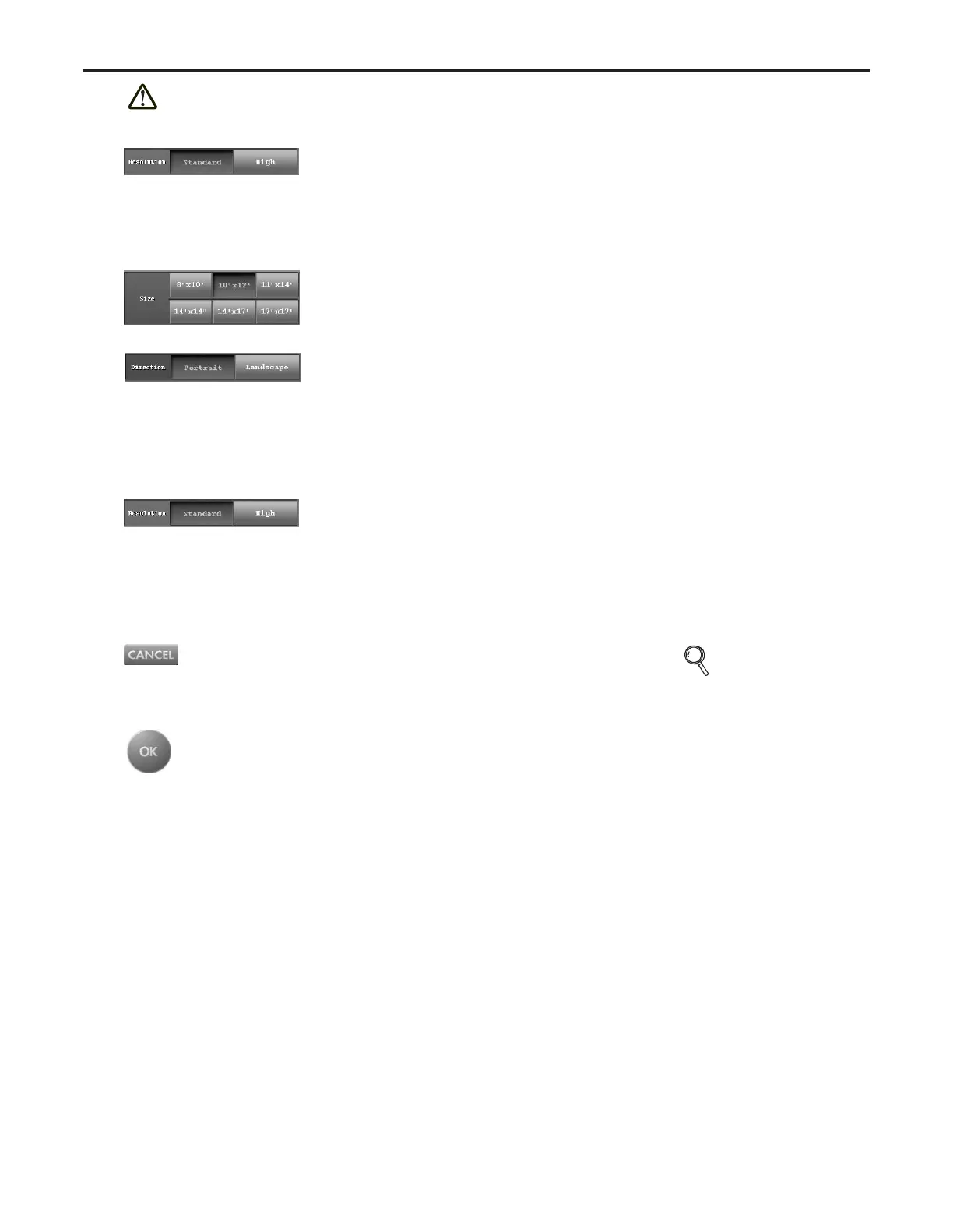

[Resolution] Button
Enables selection of the read resolution. Usually,
"Standard" (175µm) or "High" (87.5µm) is selected.
However, when editing the mammo exam tag
keys,these buttons will be replaced by "Standard"
(87.5µm) or "High" (43.75µm).
[Size] Button
Used to select the size for the image to be read.
• This selection cannot be made if the cassette reader is
used.
[Direction] Button
Used to select the read direction. [Portrait] or
[Landscape] may be selected.
• When a read size of 14" X 14" or 17" X 17" has been
selected, "Landscape" may not be set.
• These selections are not available when the cassette read-
er is used.
[Area] Button
Used to select the vertical read position. [Upper],
[Middle] or [Lower] may be selected.
• When a read size of 14" X 17" or 17" X 17" has been
selected, [Middle] or [Lower] may not be set.
• These selections are not available when the cassette read-
er is used.
[CANCEL] Button
Cancels the exposure parameter selection mode.
• Display returns to the examination check screen.
[OK] Button
Sets the selected exposure parameters
• Display returns to the examination check screen.
p.81, 85
Examination
Check
Screen
[Single-Image
Screen]
[Multiple-
Image Screen]
