Ch.4 Description of Screens
< 122 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2
Enables selection of the scale or grid overlaid on the image.

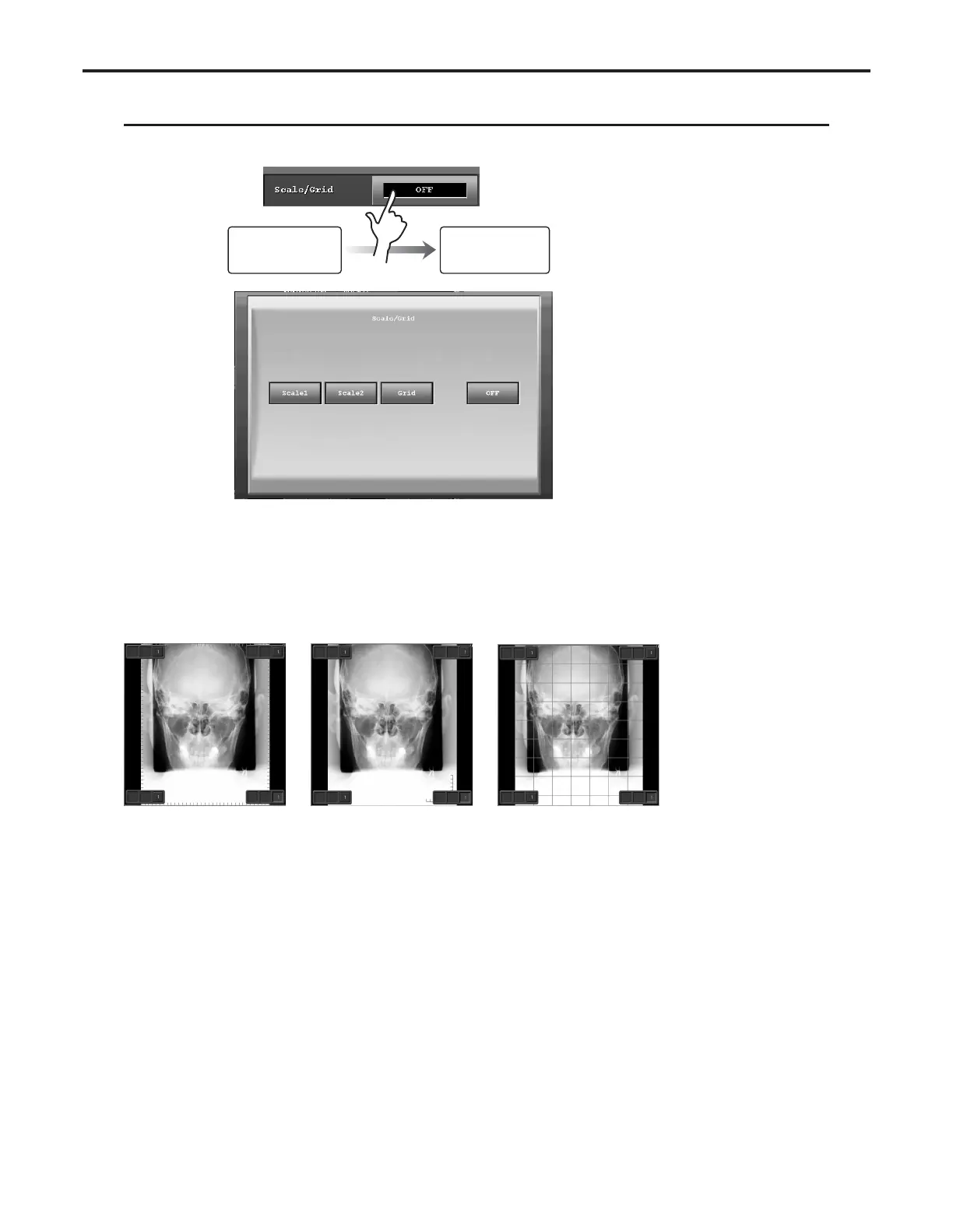

Scale/Grid Selection Screen
Scale/Grid List
A list of scale and grid available for output is displayed in button format.
Touch the button corresponding to the required scale or grid.
• If the [OFF] button is selected, the scale/grid will not be output.
• The scale/grid selection screen is closed.
Scale/Grid
Selection Screen
Detailed Data
Setting Screen
(Overlay)
Scale 1
•A scale overlay is output
around the image at 5mm
intervals.
Scale 2
•A scale overlay is output at
the right and lower center of
the image at 5mm intervals.
Grid
•A 50mm square grid overlay
is overlaid on the image.
To Next Page
