Ch.3 Sequence of Examination
< 41 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2

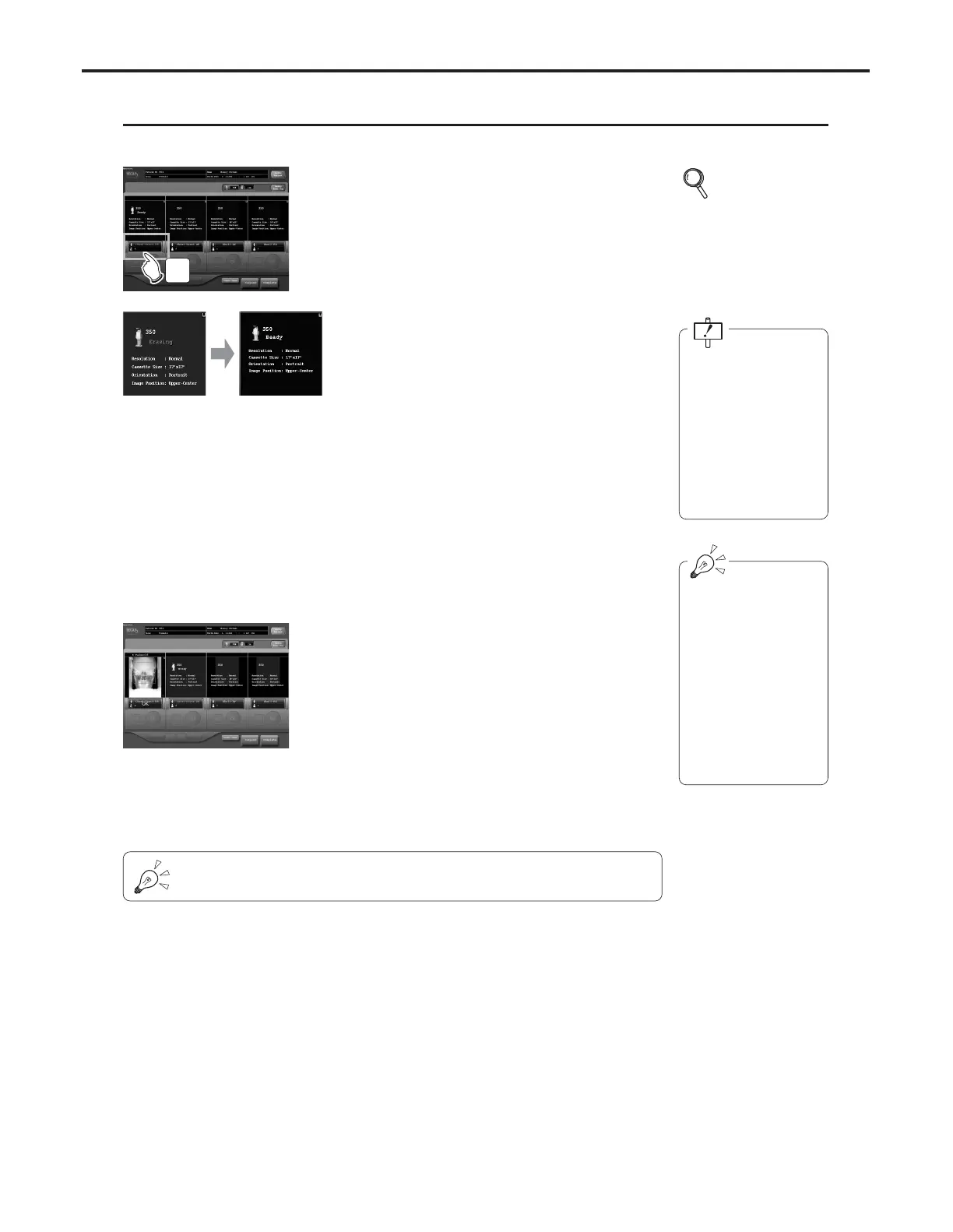

The procedure for carrying out an examination using an upright position reader with the examination check screen in
multiple-image format is described below.
Exposure [Multiple-Image Format/Upright Position Reader]
1 Touch the order to be read on the order list.
• The selected order will be shown in a green frame.
• Parameters corresponding to exposure parameters
and reader status will be displayed in the image
display field.
2 Ensure that "Ready" is displayed in the reader
status window.
• If "Erasing" is displayed, wait until erasure has
been completed and the display changes to
"Ready".
p.85 Examination
Check
Screen
[Multiple Image
Screen]
If the reader device is
REGIUS 350, the
patient name and
patient ID will be dis-
played in the reader
display panel.
Check with the patient
to ensure that the cor-
rect name is displayed.
3 Position the reader device to match the patient.
• If it is necessary to alter size, angle or position,
use the panel switches on the reader device or
touch the image display field on the CS-3
Operation Unit, select them on the detailed data
selection screen.
• For details of operation of the reader device, refer
to "Upright Reader Operation Manual".
4 Depress the exposure button on the X-ray gener-
ator.
• The image read by the reader will be displayed in
the image display field.
• The S-value of the image read will be displayed
below the image display field.
• The green frame will move to the next order on the
order list.
5 Repeat steps 1~4 to execute exposure for
each of the orders on the order list.
Whenever the examina-
tion is started and the
device is switched to
another device, an era-
sure is carried out.
In order to expose
smoothly, it is recom-
mended that order
selection be made prior
to positioning the
patient for exposure.
The automatic confirmation function cannot be used in the multiple-image format.
