Ch.8 Operating the Optional Equipments
< 184 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2

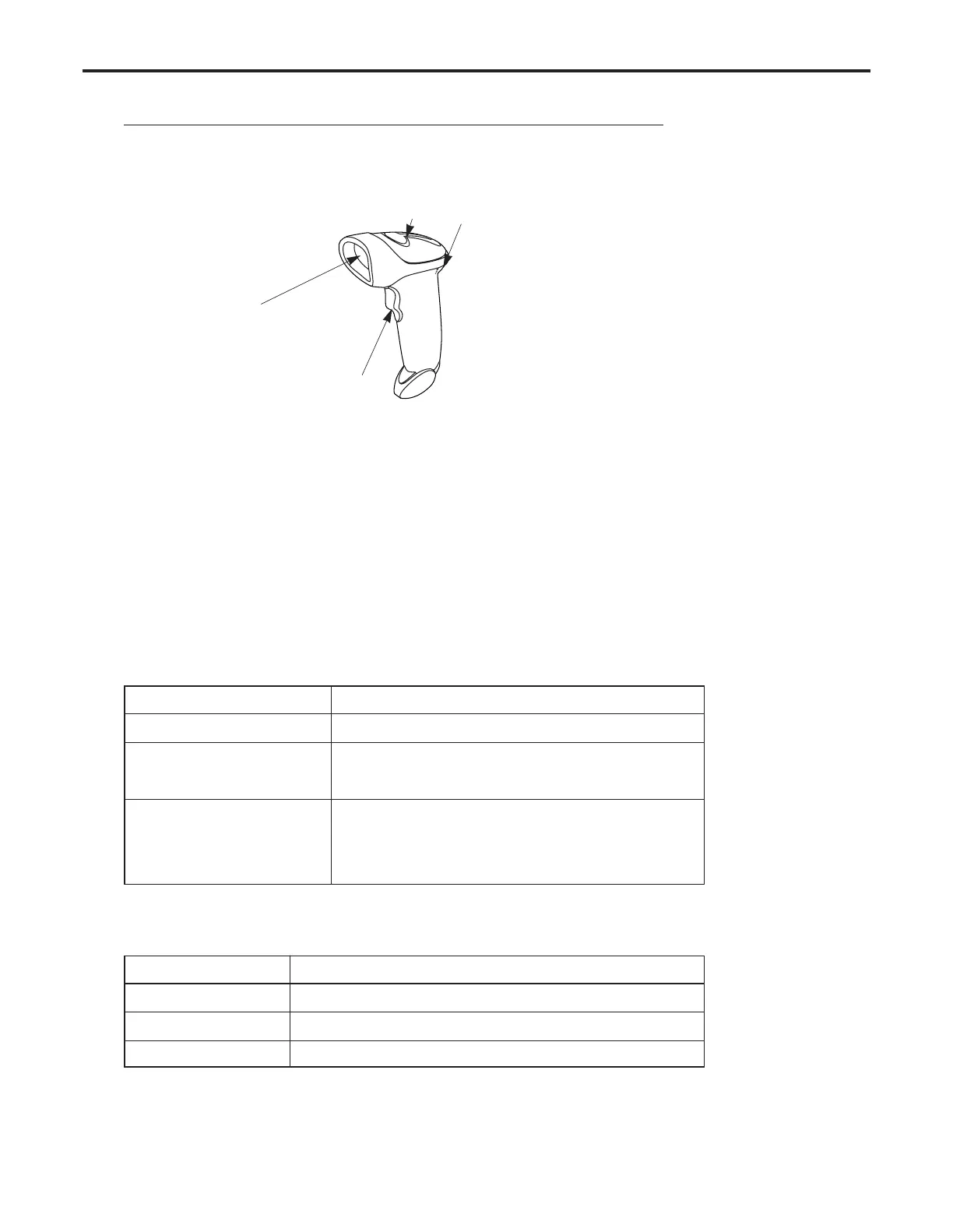

Single Bar Code Reader (Option)
The single bar code reader is used to read the bar code when registering a cassette into the
REGIUS MODEL 170/190.
A description of audible (beep) tones and LED indications when scanning is set out below.
LED
Reading
Window
Trigger
Beeper
LED
Displays the single-bar code reader status.
Reading Window
The laser beam is output from this window.
Beeper
A tone is generated when the single-bar code reader power is switched on.
Trigger
When using a handheld bar code reader, pulling the trigger will initiate the laser beam
from the reading window.
Types and Meanings of Beep
Types and Meanings of LCD
LED Meaning
Extinguished Ready for reading. Power OFF.
Illuminated (Green) Reading completed successfully.
Illuminated (Red) Data communication error. Scanner malfunction.
Beep Sequence Meaning
3 high beeps (Pu, Po, Pi) When the power is turned on or reset.
1 high and short beep (Pi !) Barcode reading is successful.
Note : Beep does not sound when it is disabled.
4 low and long beeps Data transfer error.
(Pu.., Pu.., Pu.., Pu..)
• When the barcode to be registered already exists.
• When failed to read the barcode.
(Check the barcode reading angle or position)
