Ch.4 Description of Screens
< 81 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2
This screen is used for checking examination data, reading cassette images and execution of exposure in
upright position reader. One large screen is displayed. The image read after completion of exposure is dis-
played.

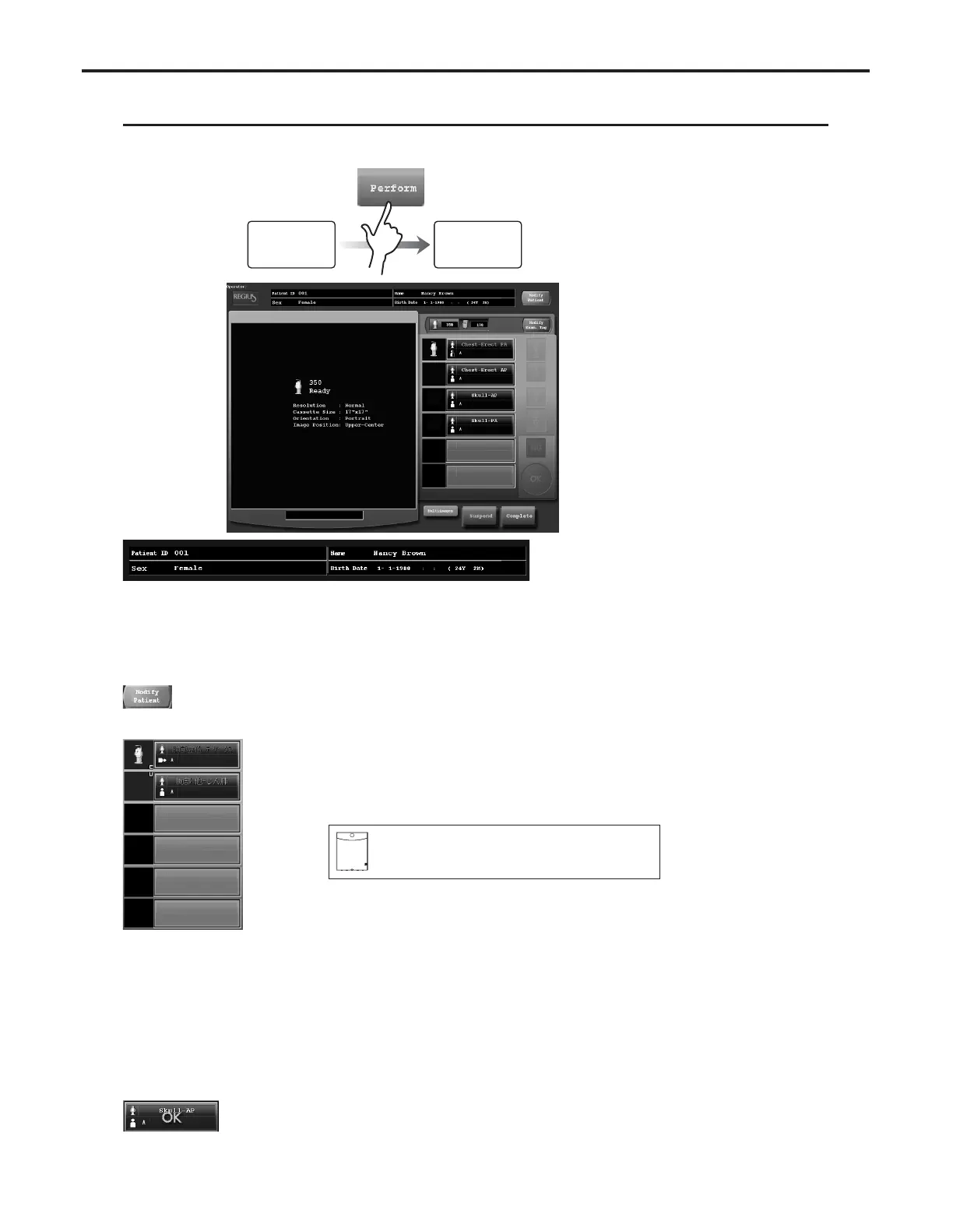

Examination Check Screen [Single-Image Screen]
Patient Data Display
Patient data to be used for exposure is displayed.
• In cases where the patient data is insufficient or wrong,
touch the [Modify Patient] button to modify the patient
data.
[Modify Patient] Button
Used to modify the patient data.
Order List Display
A list of orders set in patient data is displayed in button
format.
Orders to be used for examination and reading may be
selected prior to exposure.
<When Using REGIUS 170/190>
Select an order and register a corresponding
cassette using a bar code reader.
After exposure, depending on the image quality, the
image is either output (print or save) [OK] or erased
[NG]. Touching an order will result in selection of that
order and display of the order in a green frame.
An asterisk "
*
" is displayed in the "suspend" column
against patient data for which examination has been
restarted and suspended on the examination check
screen.
• Data for up to 6 set orders are displayed on one screen.
Where there are more than 7 orders set, the scroll button
may be touched to scroll down the list.
•A reduced image is displayed to the left of the button for
orders for which exposure has been completed.
• [OK] is displayed for orders for which exposure has been
completed and that have been output.
To Next Page
