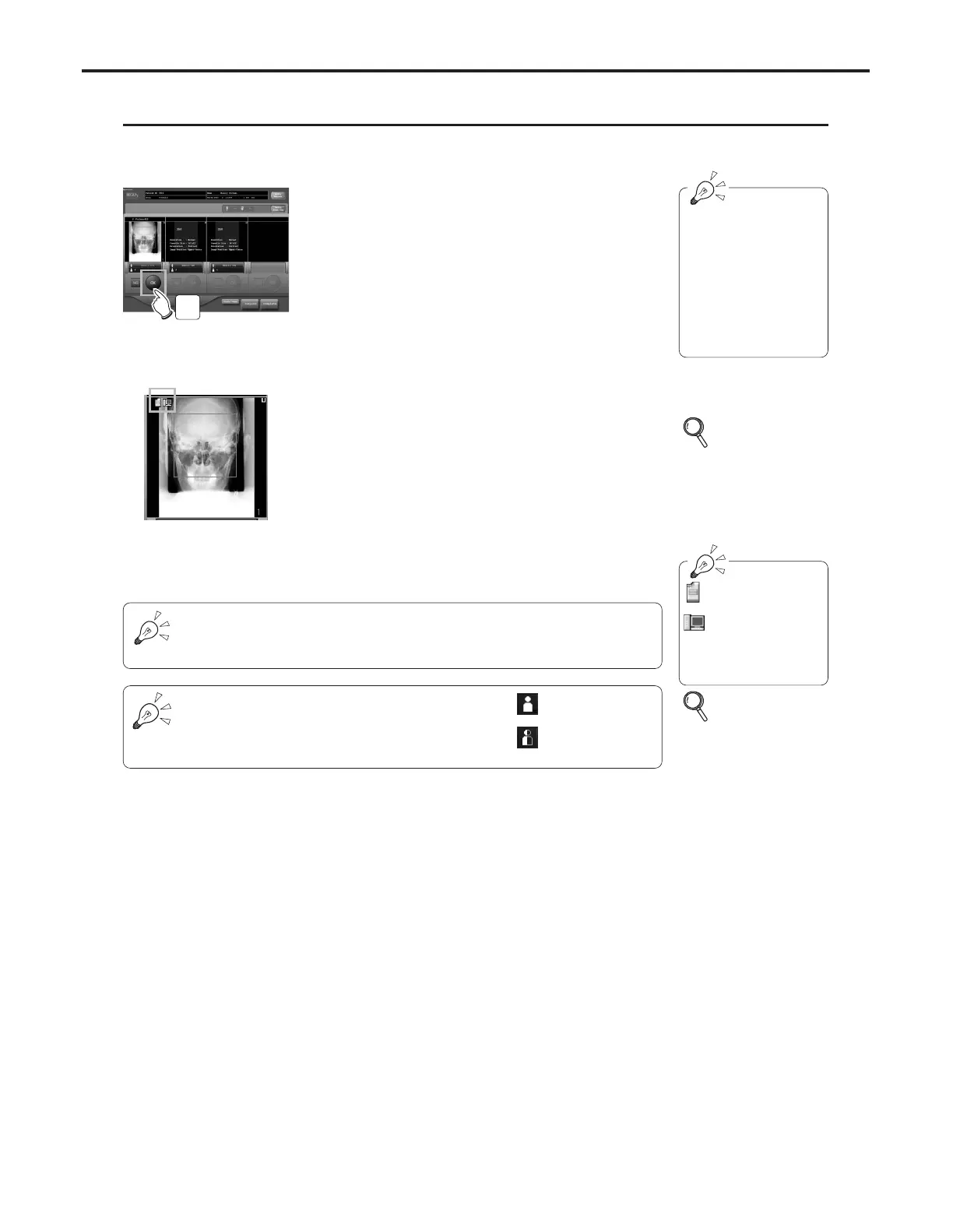

The procedure for image output per order with the examination check screen in multiple-image format is
described below.
Image Output [Multiple-Image Format/Output per Order]
2 Touch the [OK] button.
• Image output will be initiated and small printer and
host icons will be displayed at the top left of the
image display field.
• Upon initialization of image output, the icons will
change from white to green.
• After completion of output to each device, the
icons will disappear.
1 Check the image processing and overlay for the
order to be output.
3 Repeat steps 1 and 2 to output all the images.
4 Touch the [Complete] button.
• The display changes to the examination search
screen or examination list screen.
Images may be output
one at a time upon
completion of each
image reading opera-
tion, or in batch mode
upon completion of the
reading operation for all
orders.
p.48
Image Output
[Multiple-Image
Format/Batch Mode
Output of all Orders]
When outputting the image again even after the examination is completed, or out-
putting the image more than once, the second or later image will be output through
the "Image Reference Screen".
: Printer Output
Queue
: Host Output
Queue
Green: Outputting
White: Awaiting output
p.61
Image Reference
after Examination
(Output Again)
Depending on the set up at the time of installation,
either of the icons shown in the right may be printed on
the edge of output film(image data when output to the
Host), indicating the image is mirrored or not.
: not mirrored
: mirrored
