Ch.4 Description of Screens
< 142 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2
Enables referencing of images from examinations already completed. Repeat output of images is also possible.

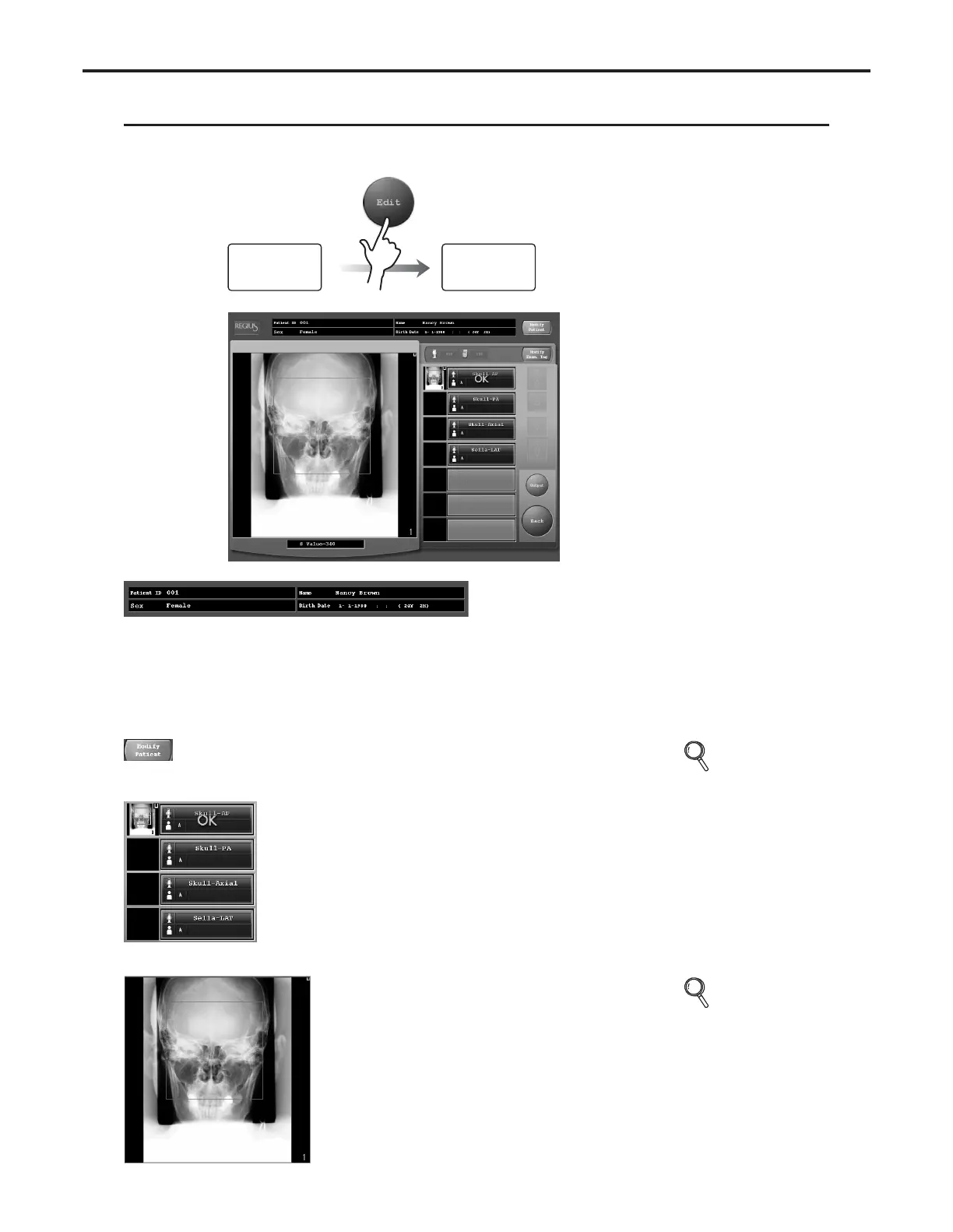

Image Reference Screen
Patient Data Display
Display of patient ID, name, sex and date of birth.
• In cases where the patient data is insufficient or wrong,
touch the [Modify Patient] button to modify the patient
data.
Examination
History Screen
Reference
Screen
p.95 Patient Data
Amendment
Screen
p.101, 103, 111, 118
Detailed Data
Setting Screen
(Acquisition)
(Image Processing)
(Print Format)
(Overlay)
[Modify Patient] Button
Enables modifications to referenced patient data.
Image Display
• To modify detailed data and additional examination data
settings, click on any point in the frame.
Order List Display
A list of executed orders is displayed in button format.
Selection of orders to be displayed may be made.
Clicking on the required order will result in display of
that order in a green frame.
•A maximum of 7 exposure orders may be displayed on
screen. In cases where there are more than 8 orders, the
scroll button may be clicked on to scroll the display.
