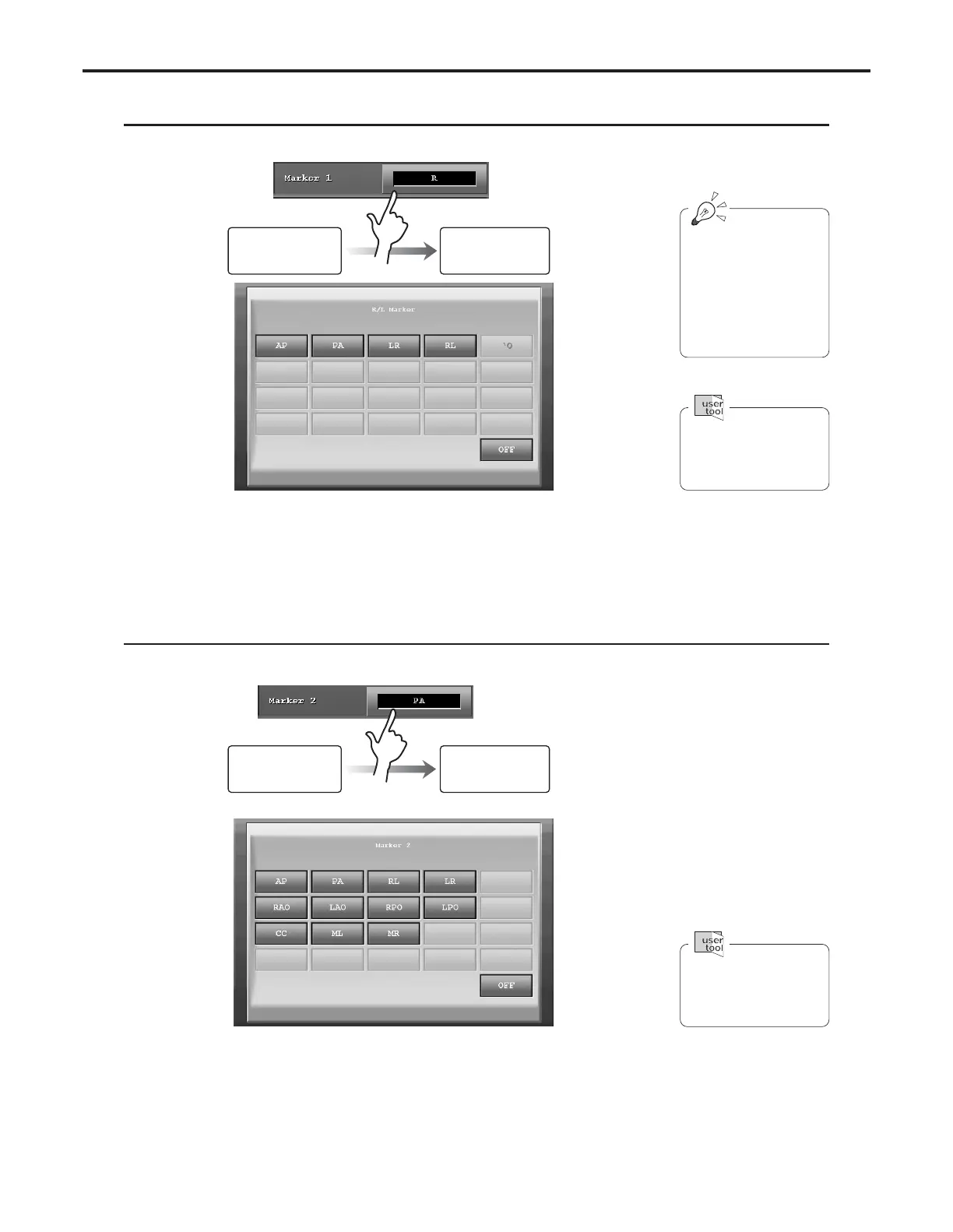

Allows selection of the marker to be output as marker 1.
Marker 1 Selection Screen
Marker 1 List
A list of markers available for output is displayed in button format.
Touch the required marker.
• If the [OFF] button is selected, marker 1 will not be output.
• The marker 1 selection screen is closed.
Characters displayed in
marker 1 are set using
user tools.
The overlay output
position may be located
upper left, upper center,
upper right, center left,
center, center right,
lower left, lower center,
lower right.
Marker 1
Selection Screen
Detailed Data
Setting Screen
(Overlay)
Allows selection of the marker to be output as marker 2.
Marker 2 Selection Screen
Marker 2 List
A list of markers available for output is displayed in button format.
Touch the required marker.
• If the [OFF] button is selected, marker 2 will not be output.
• The marker 2 selection screen is closed.
Characters displayed in
marker 2 are set using
user tools.
Marker 2
Selection Screen
Detailed Data
Setting Screen
(Overlay)
To Next Page
