Ch.4 Description of Screens
< 130 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2

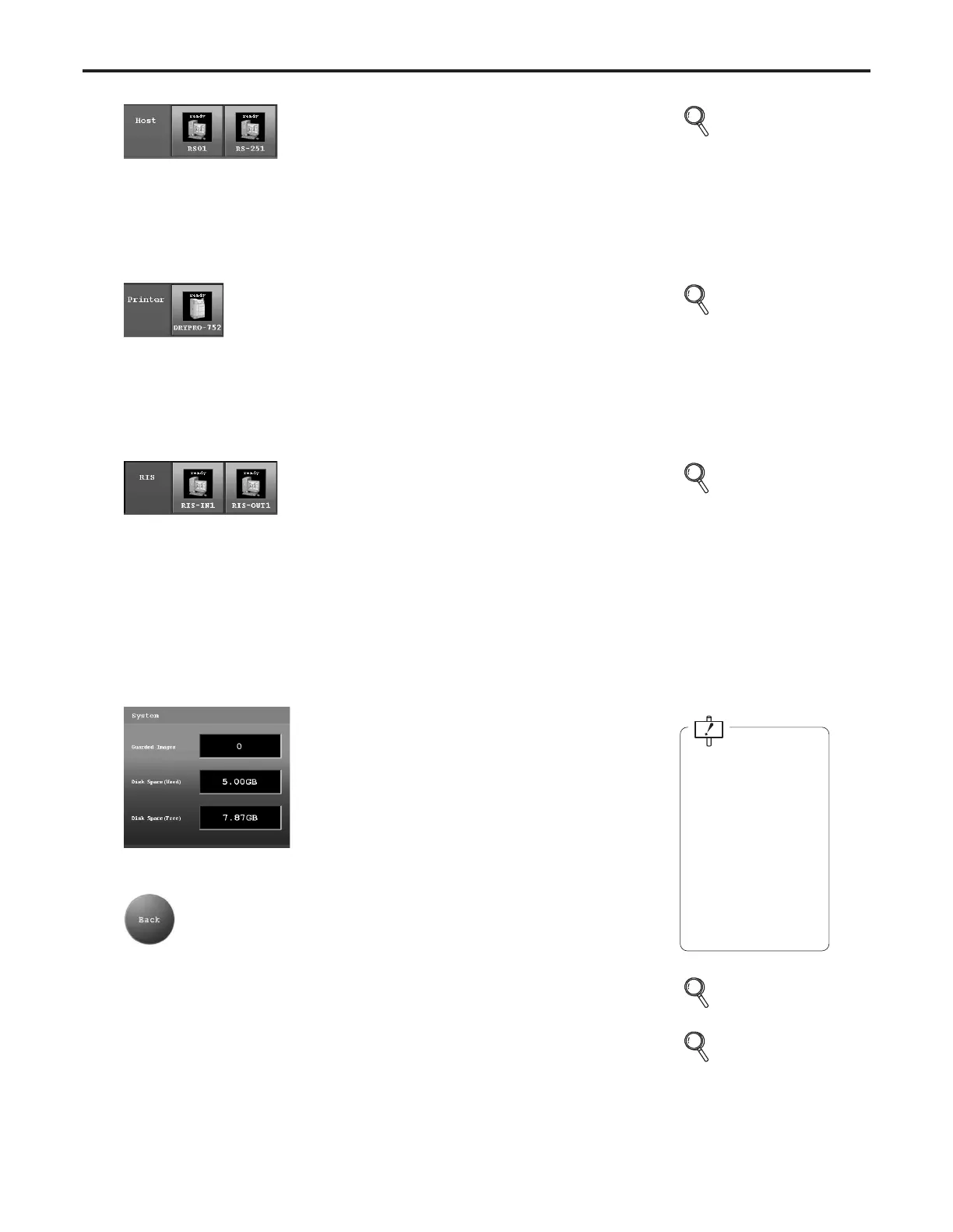

Host
The host connected to CS-3 is displayed in icon format.
The icon colour indicates the host status.
Black (normal) : Ready for operation.
Yellow (Initializing) : Currently initializing
Green (busy) : Currently outputting.
Red (error) : Error has been occurred.
• Touching an icon produces display of the status of the
host as well as examination data reserved for output.
Printer
A list of printers connected to CS-3 is displayed in icon
format.
The icon colour indicates the reader device status.
Black (normal) : Ready for operation.
Yellow (initializing) : Currently initializing
Green (busy) : Currently outputting.
Red (error) : Error has been occurred.
• Touching an icon produces display of the status of the
printer as well as examination data reserved for output.
RIS
ID-680 Series devices connected to CS-3 are displayed
in icon format.
ID-680 Series devices for input are displayed on the
left, those for output on the right.
The icon colour indicates the ID-680 Series device sta-
tus.
Black (normal) : Ready for operation.
Yellow (initializing) : Currently initializing
Green (busy) : Currently busy.
Red (error) : Error has been occurred.
• Touching an icon produces display of the status of the ID-
680 Series device as well as examination data reserved for
output.
p.134 Host Status
Check
Screen
p.135 Printer
Status
Check
Screen
p.136 RIS Status
Check
Screen
When disk capacity is
full, images on the
examination history
screen are automatical-
ly erased from the old-
est. A guard should be
applied to selected
examinations in the
examination history
screen to prevent eras-
ing those images.
p.139 Examination
History
Screen
p.129 System
Menu
Screen
[Back] Button
Terminates the device status screen and returns to the
system menu.
System
Displays the status of the hard disk incorporated into the
CS-3 System.
Guarded Images : Displays the number of images
guarded on the examination his-
tory screen.
Disk Space (Used) : Used disk capacity is shown in
giga-bytes (GB).
Disk Space (Free) : Remaining disk capacity is
shown in giga-bytes (GB).
To Next Page
