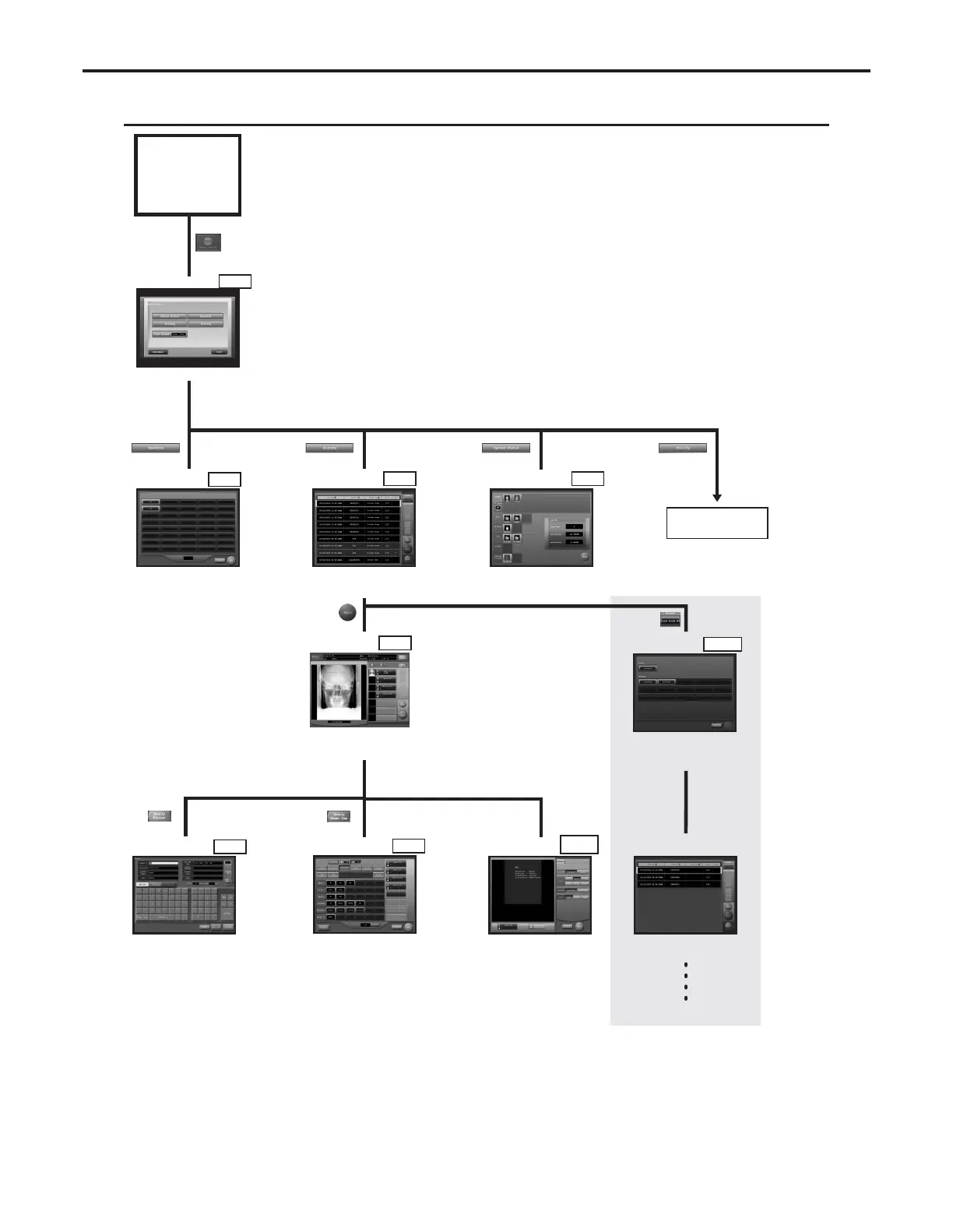

UserTool
Initial Screen
Examination List Screen
or
Examination Search Screen
System Menu Screen
Controls all the devices connected
to CS-3.
Page.128
Operator
Selection Screen
Page.138
Enables selection of the name of
the operator carrying out the
examination.
Examination
History Screen
The patient data for which
examination has already been
completed or suspended are
listed in this screen.
Page.139
Device Status Screen
Page.129
The status of all devices
connected to CS-3 are displayed.
Image Reference
Screen
Enables referencing or outputting
the patient data for which
examination has already been
completed or suspended.
Page.142
Patient Data
Amendment Screen
Page.95
The patient data currently being
examined on the examination
check screen cab be modified.
Body Part/Parameter
Selection Screen
Page.98
The body part and parameter can
be selected.
Detailed Data
Setting Screen
Page.101,103,
111,118
"Acquisition", "Image Processing",
"Print Format" and "Overlay" can
be set.
Touch the
"Image Display".
Examination History screen of the
browse target console. Starting from
this screen, browse or reprint can be
implemented.
Examination History Screen
of the browse target
Console Select
Screen
Browse of images processed on
other consoles is enabled using
the image sharing function. Select
the target console to be browed in
this screen.
Page.
141
To Next Page
