Ch.3 Sequence of Examination
< 63 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2

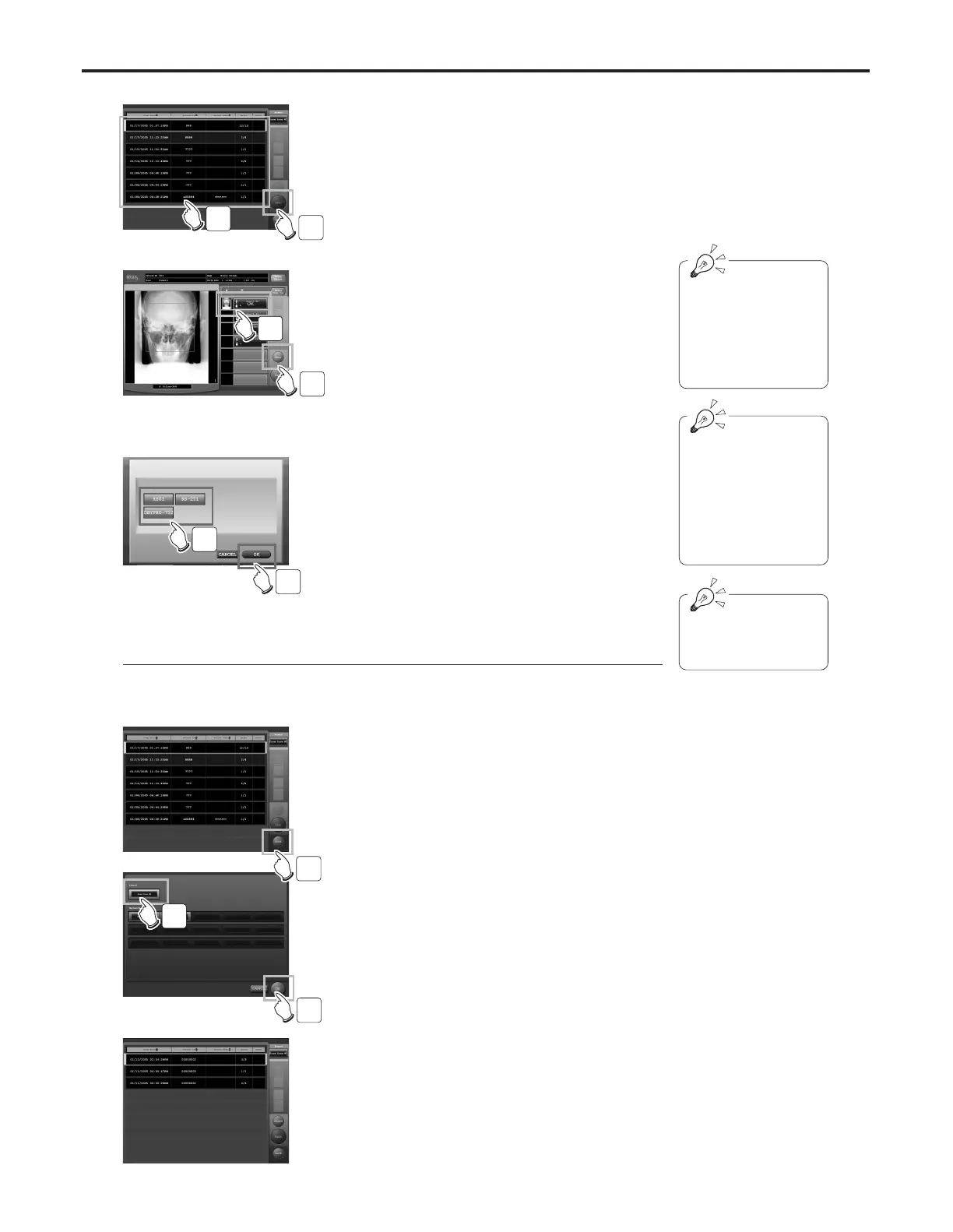

8 Touch the order whose image shall be referred.
• Image of the selected order will be displayed in the
image display field.
• Image processing or overlay setting as practiced
in “Exam Check” screen can be possible on this
screen as well.
9 Touch the [Output] to make a reprint.
• “Output Setup” screen will be displayed.
10
Select the [Device Select] button of the output
device (output devices set to your own Console)
from which the image shall be output.
11Touch the [OK] Button.
• Output of the image will be made to the selected
output device.
• Return to the “Image Reference” screen after clos-
ing the “Output Setup” screen.
Output devices set on
the “Output Setup”
screen are those set on
your own Console.
Actual output is also
performed from your
own Console.
Exiting the Image Reference/Reprint
Procedures to exit the image reference/reprint and to return to the “Exam History” screen
of your own Console is described below.
1 Touch the [Back] Button at the bottom right of
the examination history screen.
• “Console Select” screen will be displayed.
• Name of the target CS-3 that is under reference will
be shown on the [Network] button.
2 Touch the button in the local column (name of
your own CS-3 is displayed).
• Frame of the touched button changes to green.
3 Touch the [OK] Button.
• Returns to the “Exam History” screen of your own
CS-3.
• Touching the [CANCEL] button will switch to the
target CS-3 that has been referred to.
3
2
1
11
10
9
8
6 Touch the Patient Info that contains the images to
be browsed or reprinted.
• Suspended Patient Info is displayed in purple.
• The frame of the selected Patient Info changes to
green.
7 Touch the [Edit] Button.
• “Image Reference” screen will be displayed.
7
6
Changes on Exam
Condition, Image
Processing and Overlay
will be made using the
settings of your own
console.
Multiple output devices
can be selected at a
time.
To Next Page
