Installation
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 37

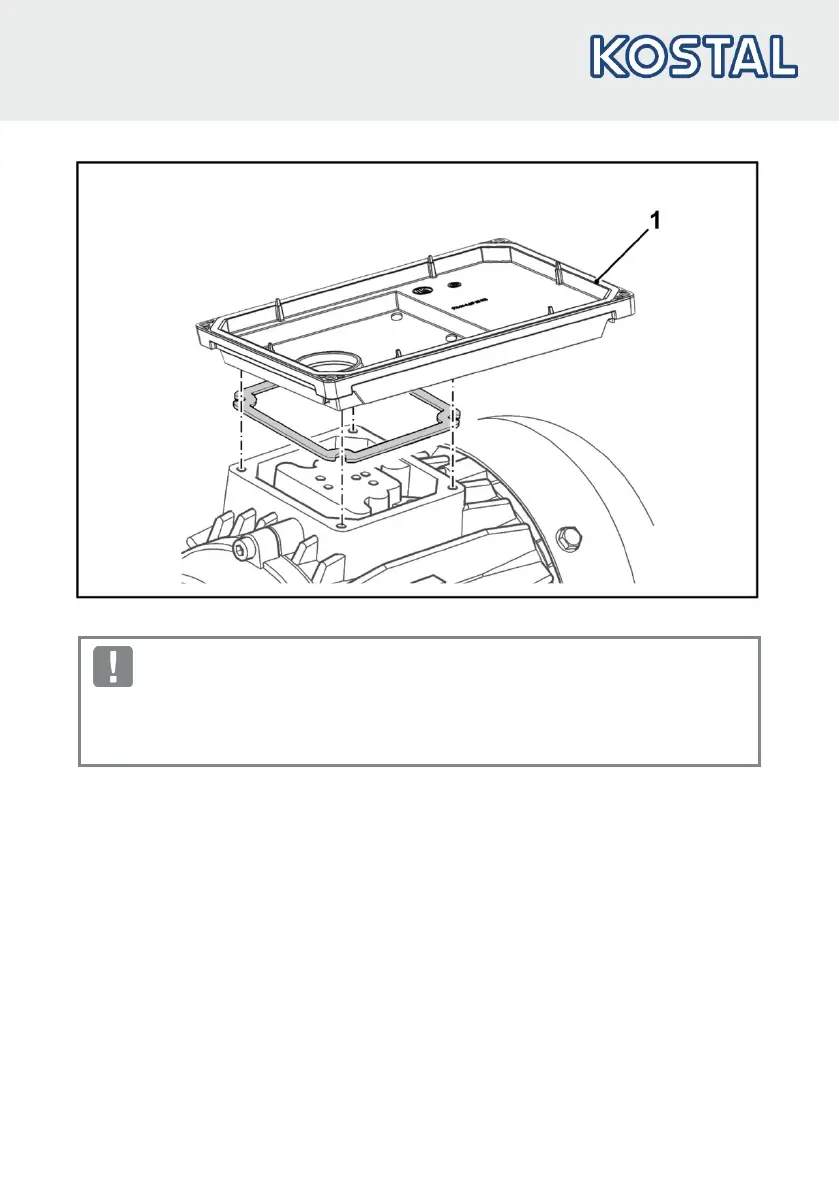

Fig.: 14 Assembly sequence: Connection box – adapter plate (size α)
INFORMATION
The standard adapter plate is a plate the underside of which is not reworked; i.e. no holes have
been produced yet.
You can order individually modified adapter plates from KOSTAL for selected motors.
5. Modify the adapter plate (1) by producing the necessary holes for mounting on the motor.
