Installation
38 Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN
The commissioning technician is responsible for protection class compliance when sealing the
adapter plate on the motor.
If you have any questions, please ask your KOSTAL contact.

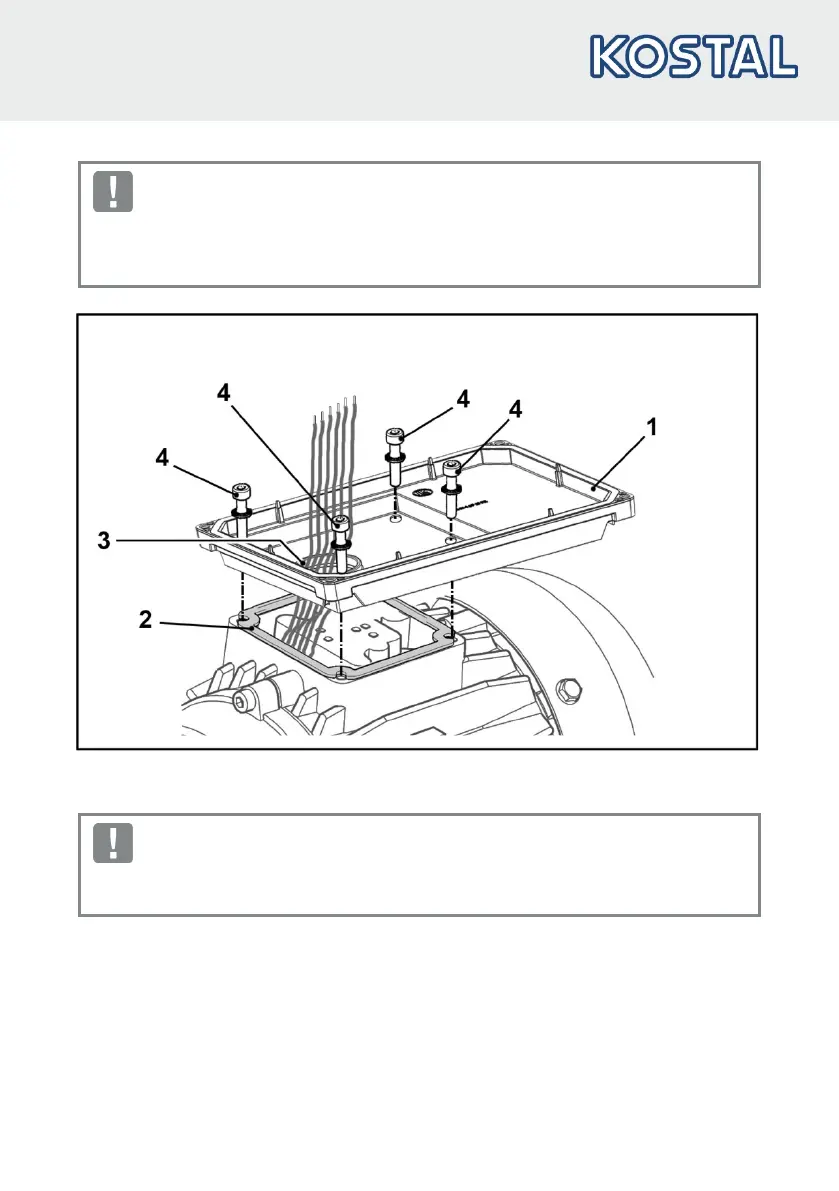

6. Fit the seal (2).
7. Lead the motor connection lines through the opening (3) in the adapter plate (1).
If the motor connection lines are too short, extend them as required with the cable set
extension (option) article no.: 10118226
8. Screw the adapter plate on to the motor with the four retaining bolts (4) and four spring
elements.
