Installation
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 39
When mounting the adapter plates, ensure that all four screws, including the spring elements,
are tightened to the necessary torque (M
A
= 2 Nm)!

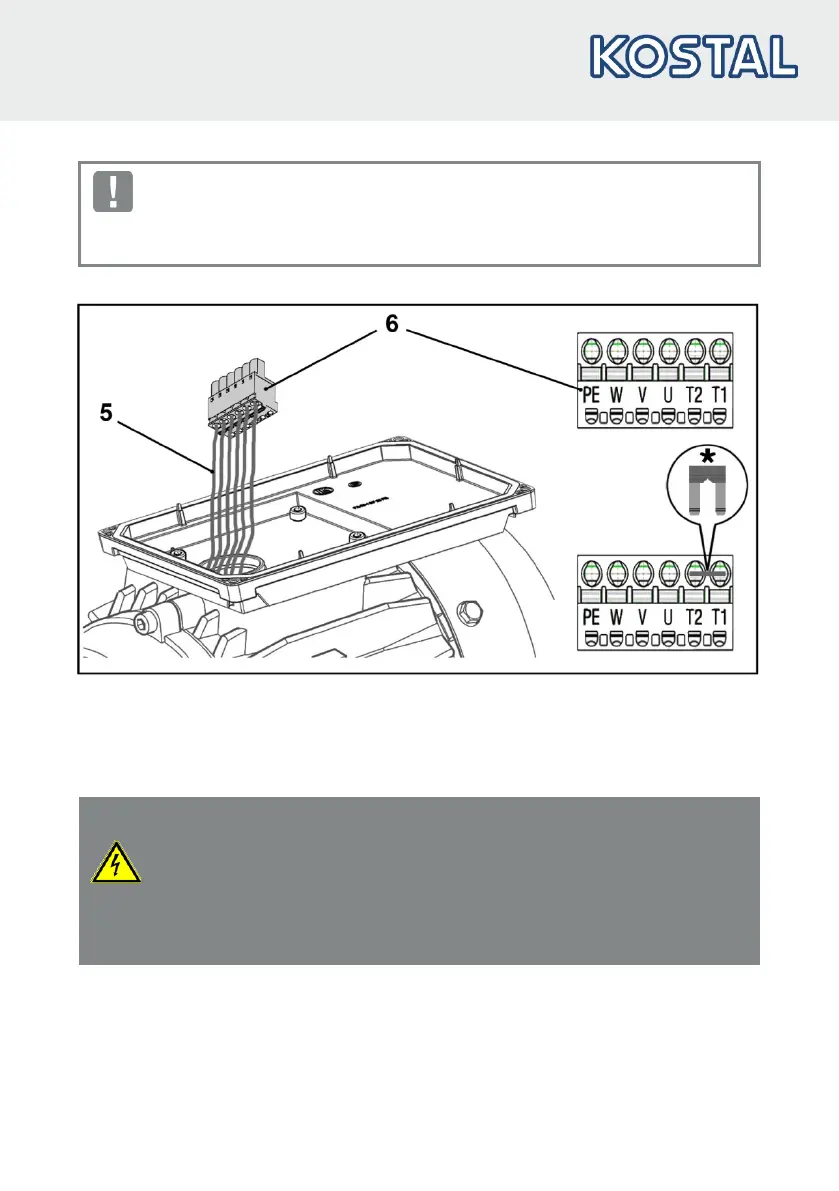

9. Attach the motor lines (5) in the correct circuit to plug of motor plugs (6).
10. If present, wire the connection cable of the motor PTC/Klixon to the T1 and T2 terminals.
If the motor used does not have a motor PTC, you must connect the bridge included in
the scope of delivery.
If the bridge is not connected, the red status LED lights up and the motor does not start.
DANGER!
Risk of death due to electrical shock!
Death or serious injury!
The motor PTC is potential-free once the INVEOR is connected,
therefore it must be connected using a separate motor lead.
Only motor PTCs corresponding to DIN 44081/44082 may be connected!
