Kyocera Ecosys M6526cdn Operation Guide

Part Names
1-5
1

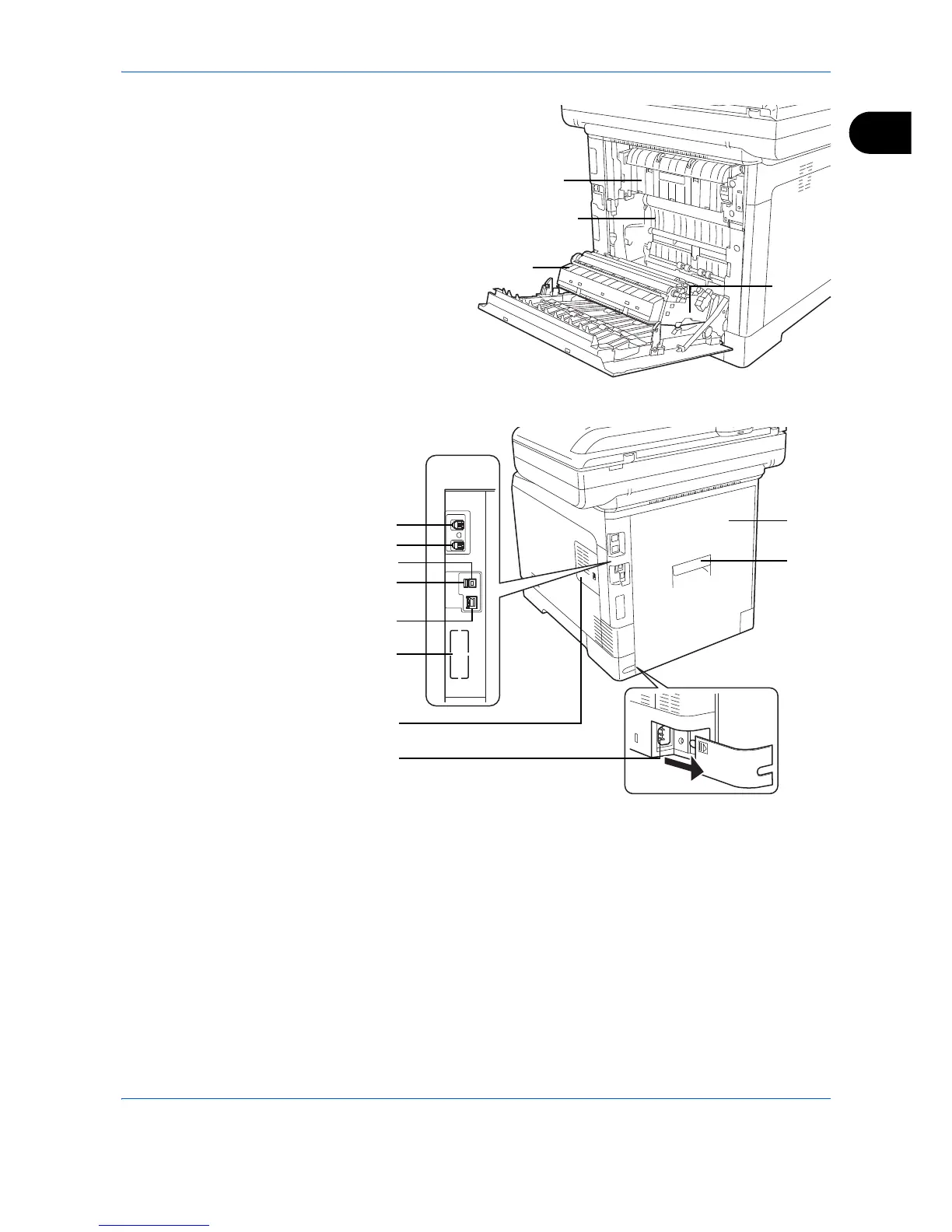

20 Fuser Cover
21 Paper Transfer Unit
22 Paper Ramp
23 Duplex Unit
24 LINE connector*
25 TEL connector*
26 USB Interface Connector
27 USB Memory Slot
28 Network Interface Connector / Indicators
29 Option Interface Slot 2
30 Right Cover
31 Power Cord Connector
32 Rear Cover
33 Rear Cover Lever
* Only on products with the fax function installed (Option Interface Slot 1)
22
21
23
20
24
25
26
27
28
30
32
33
31
29
