120 General Maintenance

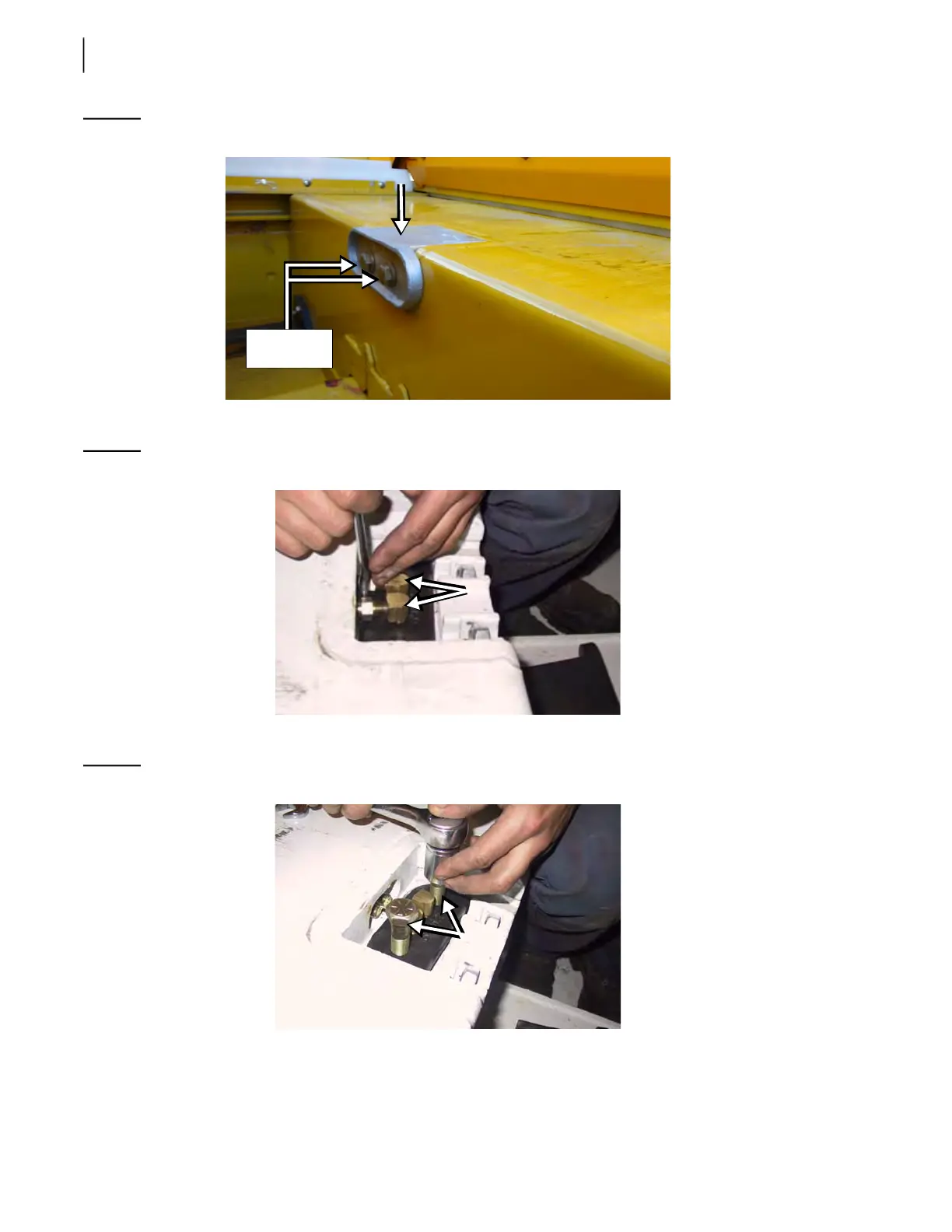

Figure 3-153
Access cover
8. Unscrew both grease fittings.
Figure 3-154
Grease fittings
9. Take 2 5/8-18 NF, 9-inch long fine-threaded bolts and screw them in the pin head holes.
Figure 3-155
5/8-18 NF fine-threaded bolts
10. Tighten the bolts until the cylinder pin is completely removed.
Bolts to be
removed
