244 Lubrication
Specific Components To Be Lubricated
Crusher Panel (optional)
To properly maintain the crusher panel:
1. Grease the crusher panel cylinder heads by using the grease fittings.
2. Grease the crusher panel bushings.
3. Grease the grease fittings on the lower tube rings (see Figure 4-15).

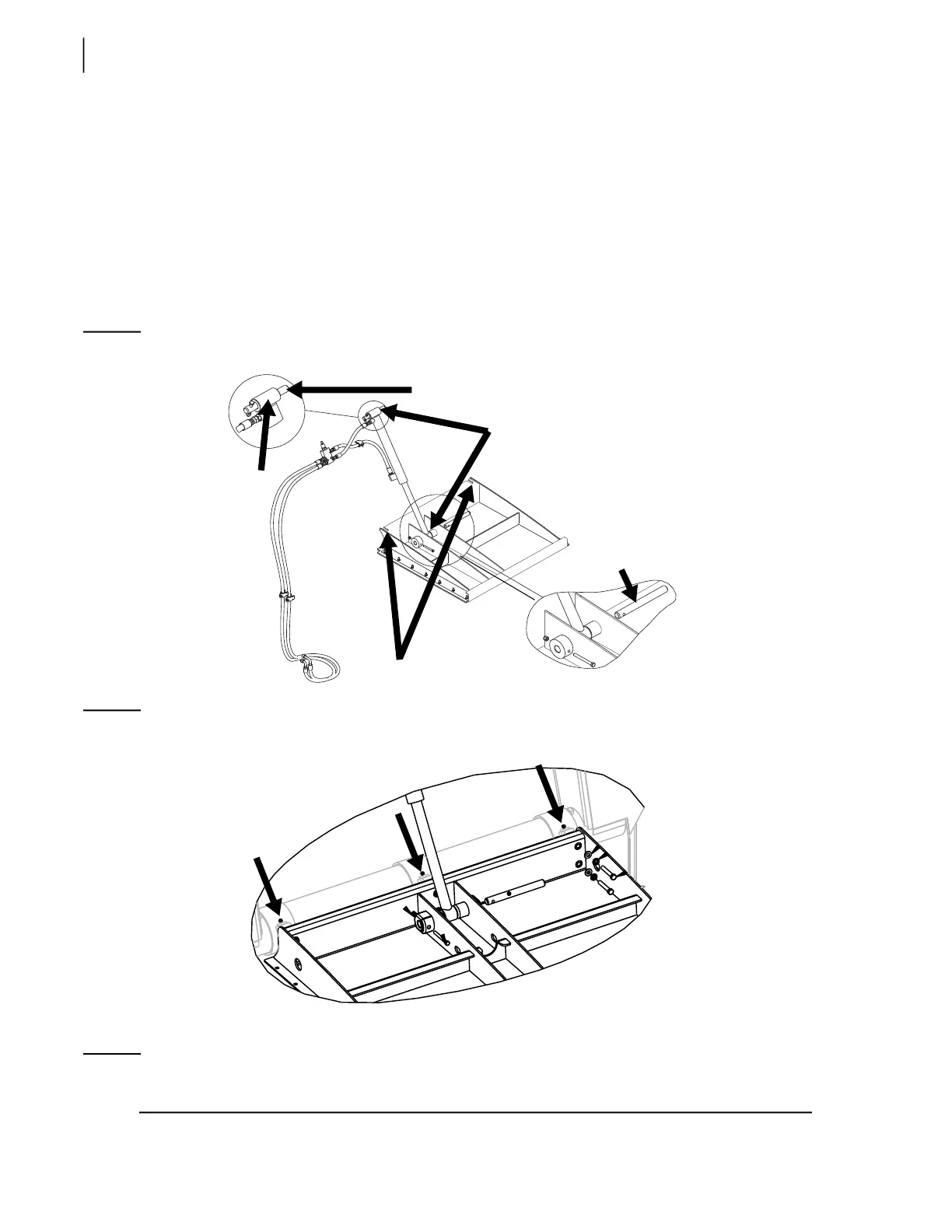

Figure 4-14
Grease areas
Figure 4-15
Grease fittings on lower tube rings
NOTE: If the truck is equipped with a chute, place the chute on the opposite side of the crusher panel
that you intend to lower for lubrication purposes.
Cylinder
axle
Cylinder
head
Grease
fittings
Bushings
Cylinder
axle
