94 General Maintenance

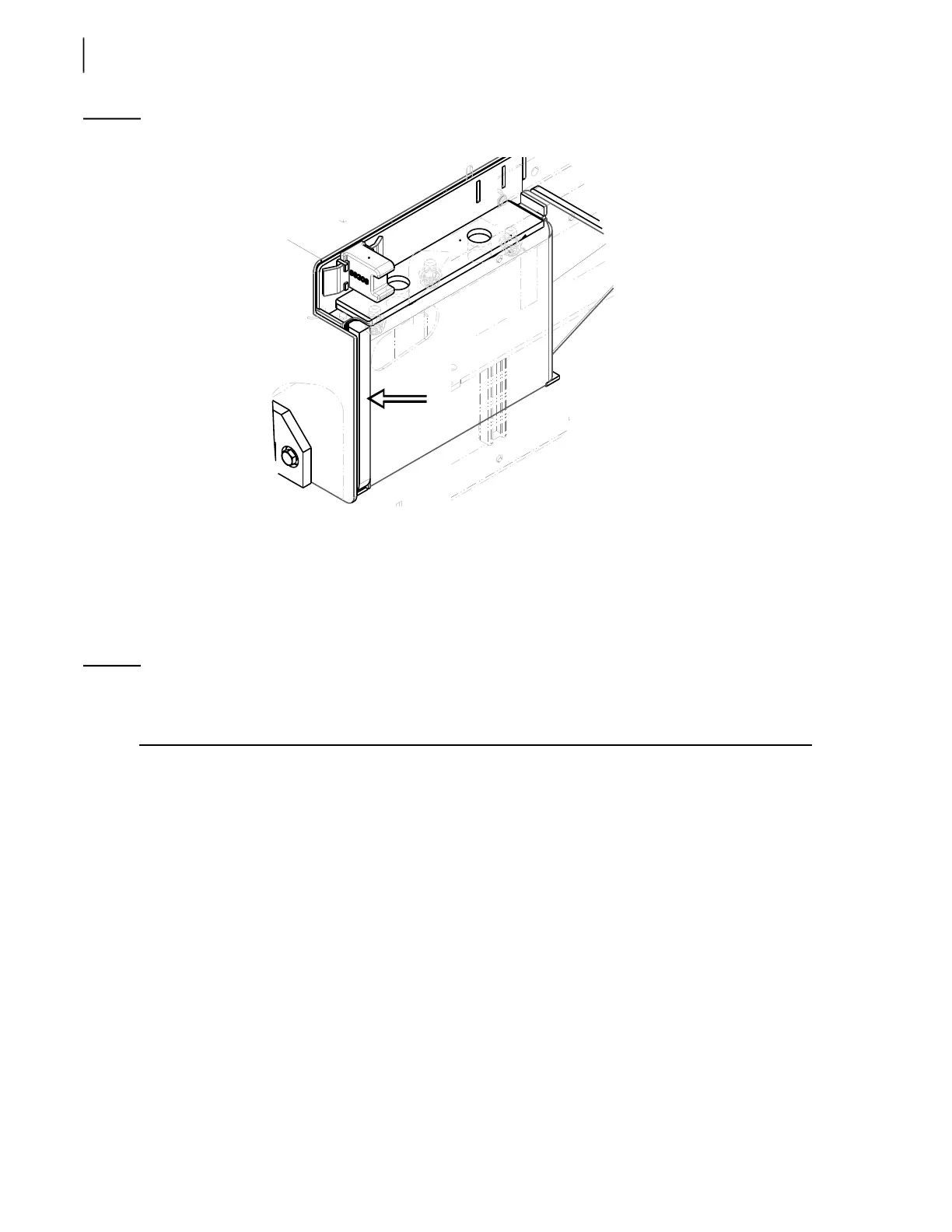

Figure 3-107
Plastic wiper blade
3. Reinstall all parts that have been removed by applying the following procedures in reverse order:
E. Removing Packer Panel - Dual H
ELPING-HAND™ UNITS on page 87, E. Disconnecting Packer -
Dual H
ELPING-HAND™ UNITS on page 79 and E. Accessing Packer - Dual HELPING-HAND™ UNITS
on page 70.
4. Once finished re-assembling the removed components, lubricate and check for proper operation
of the packer.
NOTE: If the packer moves vertically by more than 3/16”, the upper wear pads must be replaced or
adjusted (see Upper Wear Pads on page 135 and Replacing and Adjusting Upper Wear Pads on
page 163).
Chute (Co-Mingle Vehicles Only)
A mobile chute, located in the middle of the hopper, diverts waste on either side of the hopper. This
piece of equipment is controlled with two push-buttons on the top of the in-cab joystick or with a
lever located near the hopper if the unit is equipped with a tipper. The chute must be inspected and
lubricated on a weekly basis.
Inspecting Chute
To inspect the chute, apply the following procedure:
1. Start the engine and engage the hydraulic pump.
2. Lower the grabber, if equipped.
3. Move the chute towards the left side of the hopper.
