General Maintenance 81

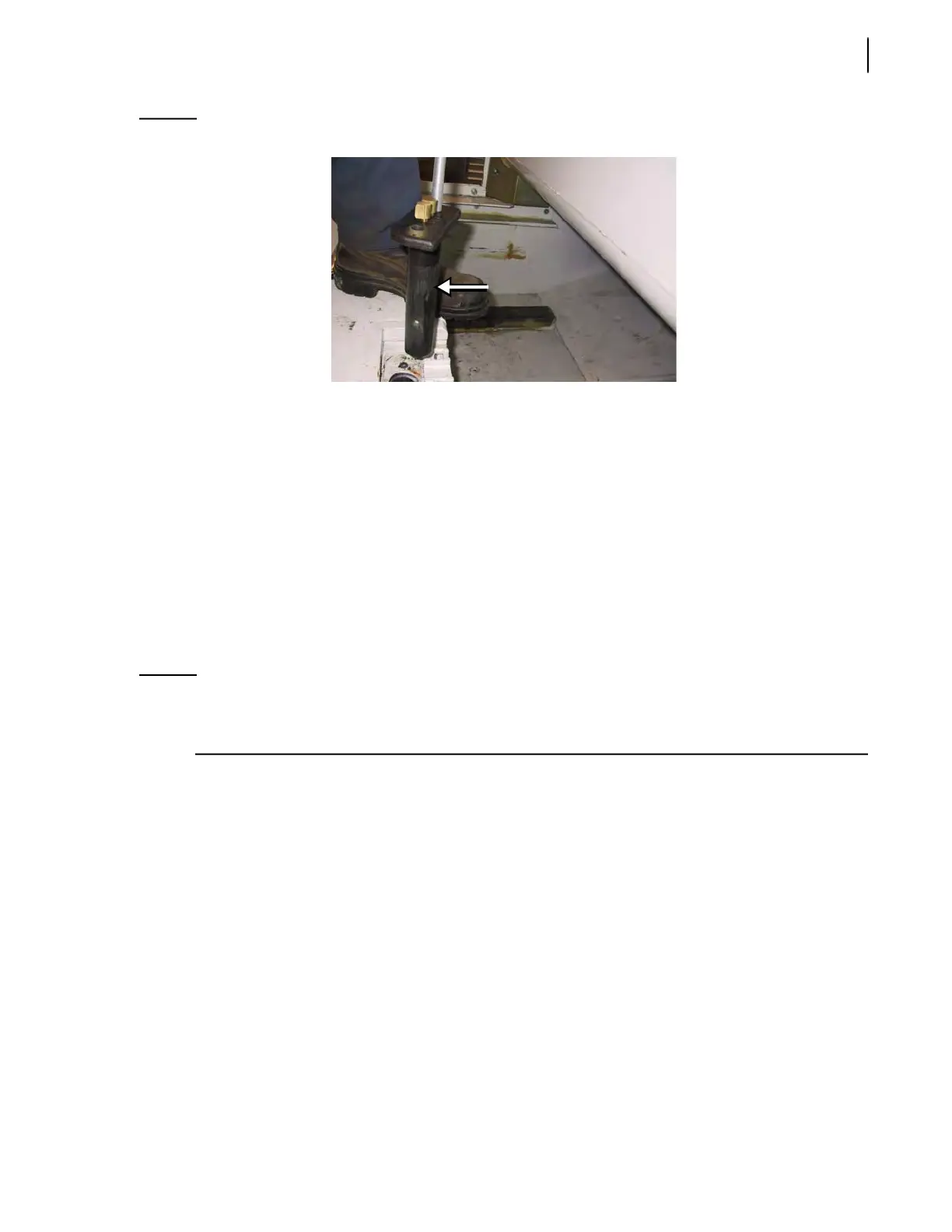

Figure 3-89
Cylinder pin removed
4. Exit the hopper.
5. Start the engine and engage the hydraulic pump.
6. Retract both hydraulic cylinders.
7. Turn OFF the hydraulic pump and the engine.
8. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
NEXT: REMOVING PACKER PANEL: See “E. Removing Packer Panel - Dual H
ELPING-HAND
Units” on page 87.
Removing Packer Panel
A. Removing Packer Panel - Standard Units W/ Loading Arm
NOTE: For standard units w/o loading arm, go to page 83; for co-mingle units w/ loading arm go to
page 84; for co-mingle units w/o loading arm, go to page 86; for dual Helping-Hand units, go
to page 87.
Once the packer has been prepared, accessed and disconnected, you can remove it from the hopper.
To do so:
1. Remove the arm stopper.
Before removing it, make sure you mark down the arm stopper location with a pen.
