80 General Maintenance

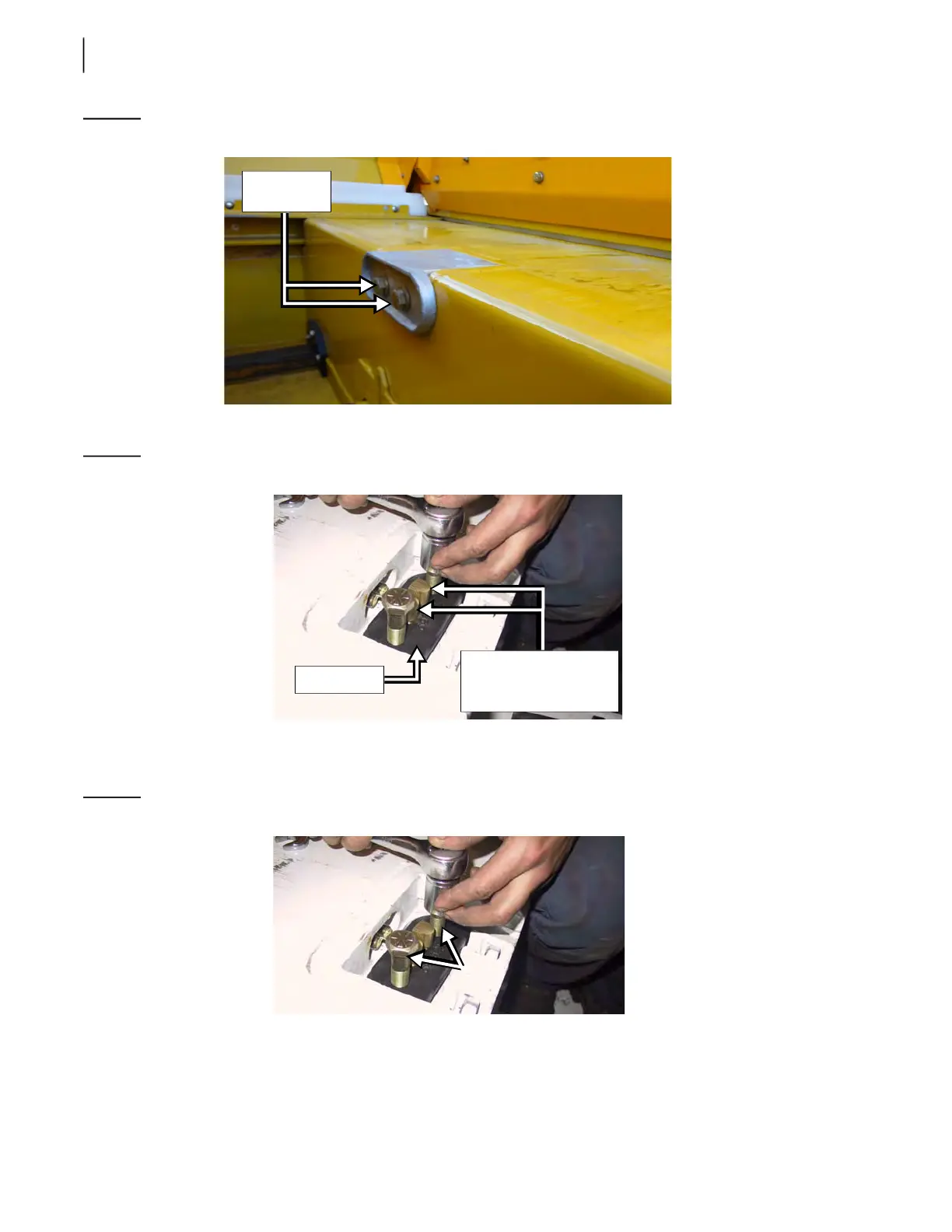

Figure 3-86
Access cover
2. Disconnect the cylinder pin from the greasing hoses (see Figure 3-87).
Figure 3-87
Cylinder pin
3. Remove the cylinder pin.
Take 2 5/8-18 NF, 9-inch long fine-threaded bolts and screw them in the pin head holes.
Figure 3-88
5/8-18 NF fine-threaded bolts
Tighten the bolts until the cylinder pin is completely removed.
Remove
these 2 bolts
Loosen these 2 bolts to
disconnect greasing
hoses from cylinder pin
Cylinder pin
