100 General Maintenance
Adjusting Chute Cylinder
When performing inspection inside the hopper, check if the chute rests on all rubber bumpers. The
cylinder that controls the chute can be adjusted so that the chute rests properly on the bumpers.
To adjust the chute cylinder:
1. Start the truck and engage the hydraulic pump.
2. Fully retract the packer and position the chute on the hopper streetside (see Figure 3-119).
3. Lower the crusher panel completely, if equipped, using the CRUSHER PANEL DOWN switch on
the in-cab control panel (see Figure 3-120).

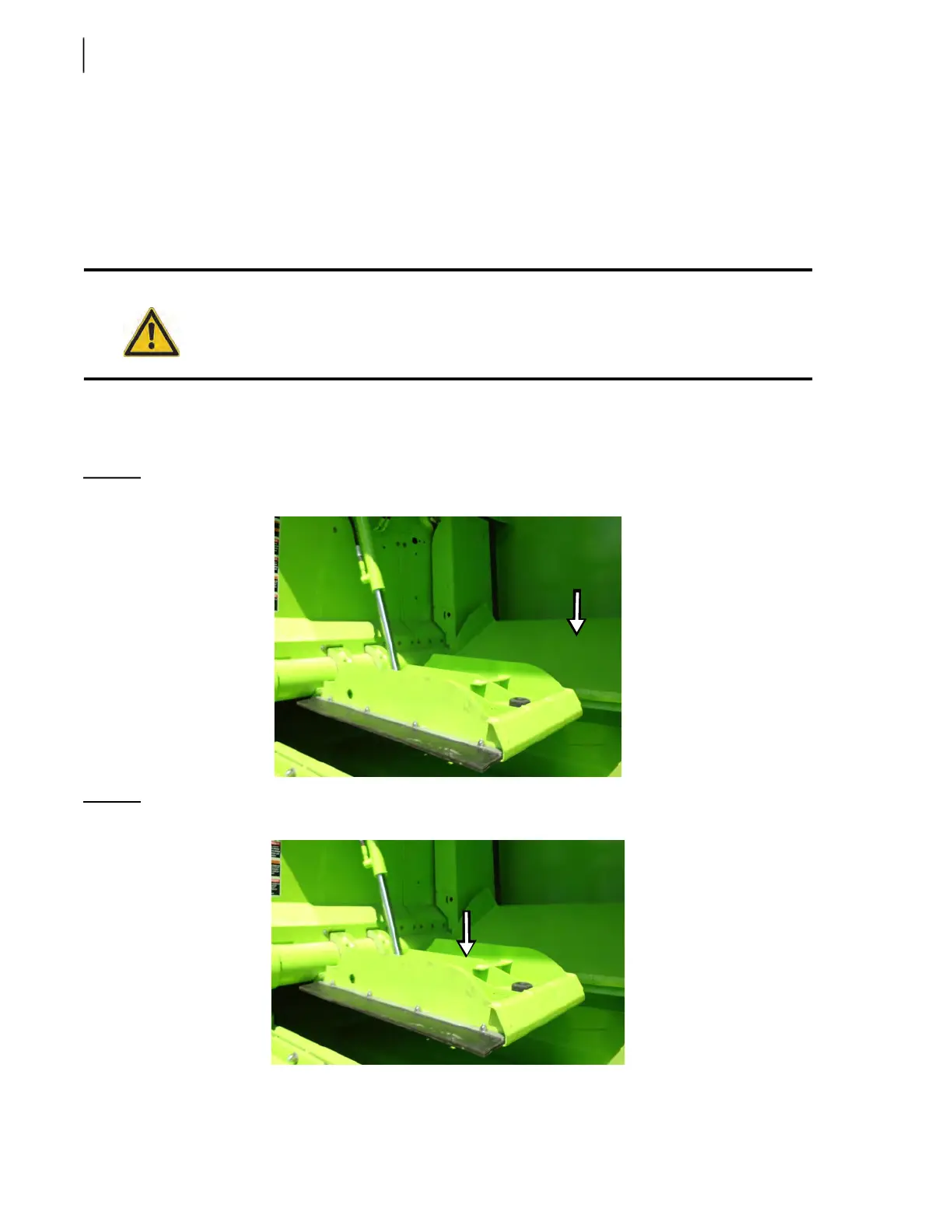

Figure 3-119
Chute tilted towards streetside
Figure 3-120
Crusher panel in lowered position
4. Turn OFF the hydraulic pump and the engine.
Danger!
Never enter the hopper while the hydraulic system is engaged.
