General Maintenance 99
Once the protective cover is removed, you will be able to access the area where the chute cylinder
is.
7. Check for leaks on cylinder head, jacket and rod.

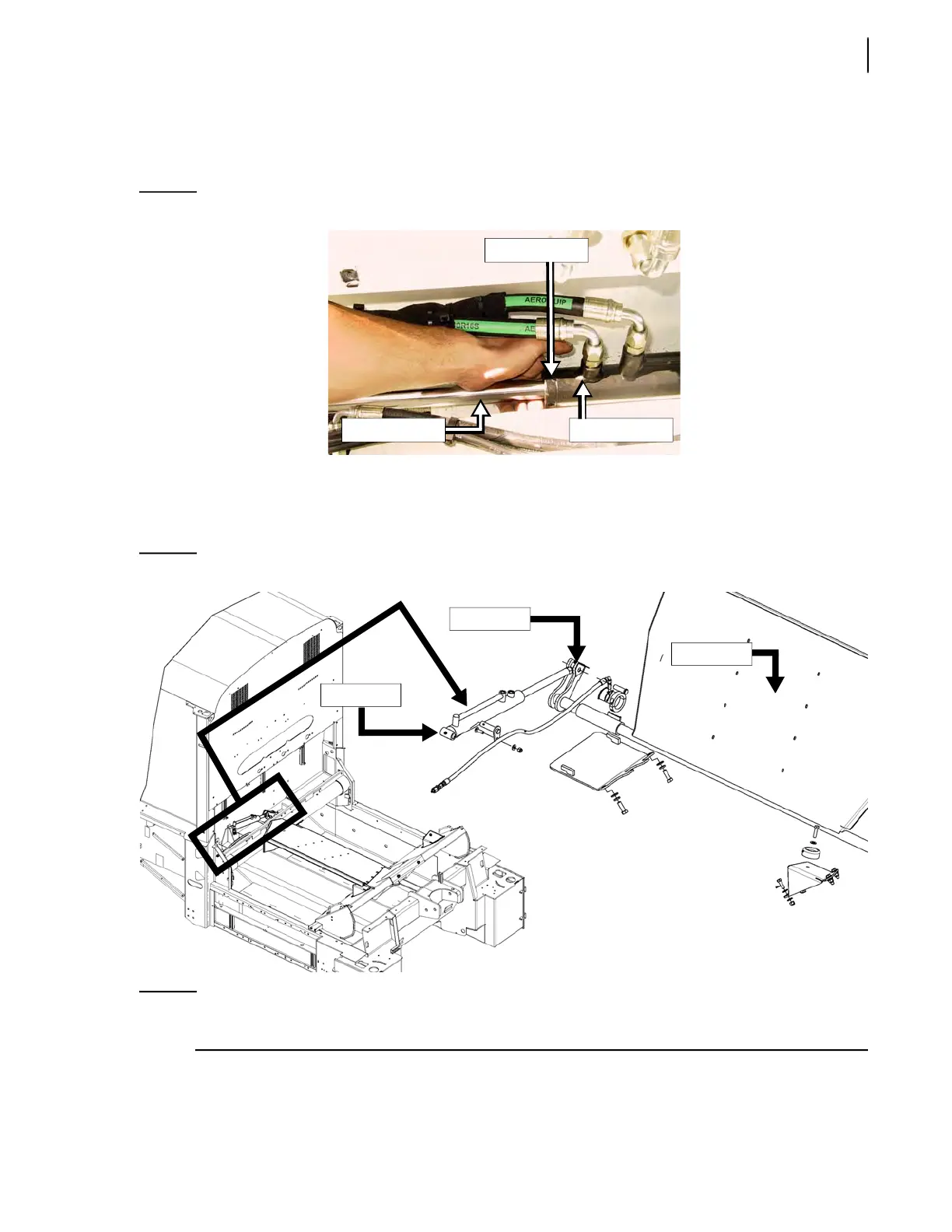

Figure 3-117
Chute cylinder
8. By using a straight edge, check the cylinder rod to make sure it is straight.
9. Lubricate the 2 grease fittings on the cylinder, one at the base end, the other at the rod end
(see Figure 3-118).
Figure 3-118
Chute cylinder
NOTE: Proceed the same with the other chute cylinder if the truck is equipped with a dual or split
chute.
Cylinder head
Cylinder rod Cylinder jacket
Base end
Rod end
Chute
