118 General Maintenance

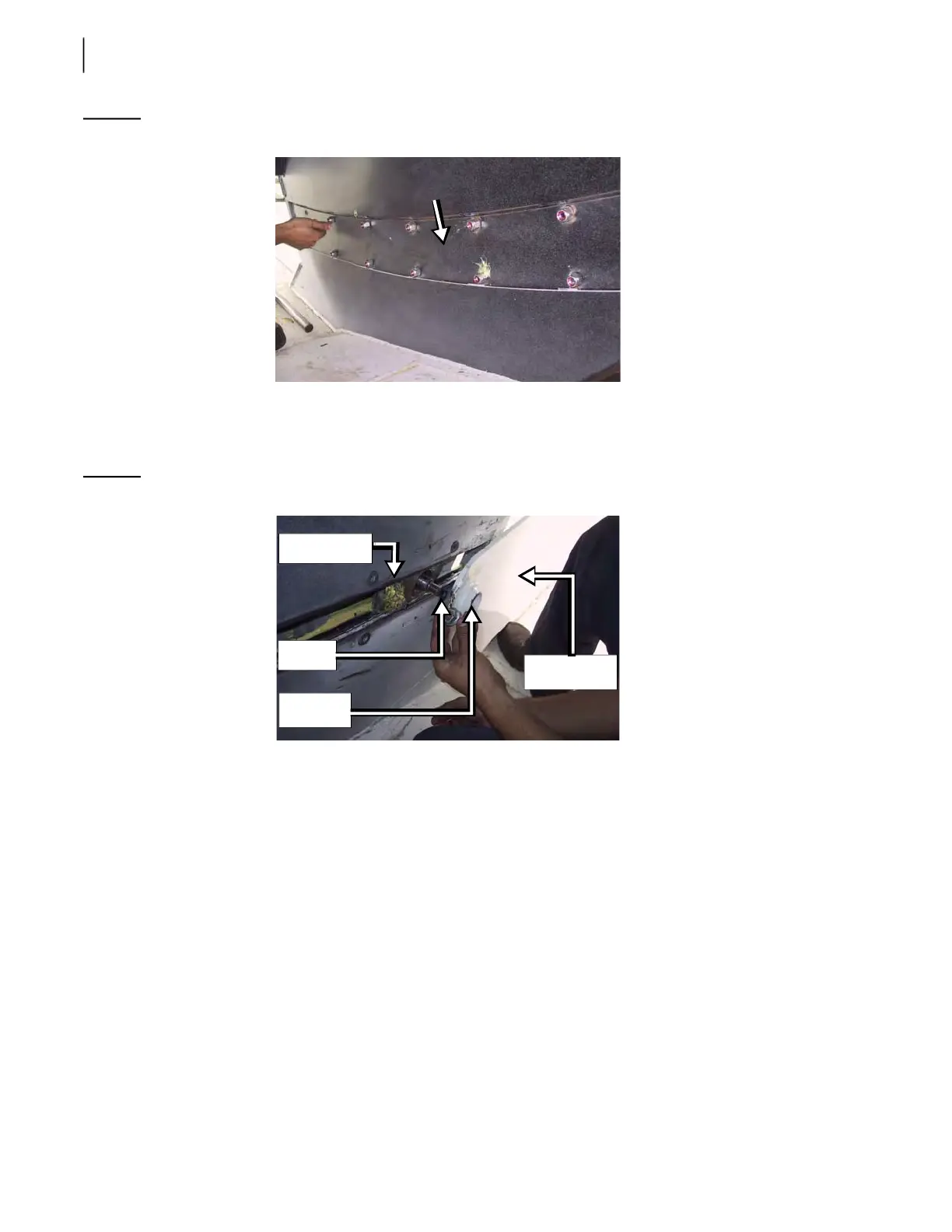

Figure 3-150
Exterior guide
11 f. Position the sliding shoe at the start of the rail near the hopper and fix it to the hopper
divider by inserting the sliding shoe stud into the divider bushing (see Figure 3-151).
Use the nut to secure the stud. Tighten the nut back.
Figure 3-151
Fixing sliding shoe to hopper divider
11 g. Reconnect the hopper divider to the packer panel.
Insert the pin into the divider front-end bushing, reinstall both bolt and nut and tighten the
nut (see Figure 3-142).
Packer Cylinders
Packer cylinders that become defective through time need to be replaced. To do so, you first have to
access the faulty cylinder, remove it, and then properly proceed with the installation of the
replacement cylinder. These steps are explained in the following sections.
Accessing Packer Cylinders
To access both packer cylinders:
1. Start the engine and engage the hydraulic pump.
Sliding shoe
Hopper
divider
Stud
Bushing
