406 Lifting Arms
13. Once all wear pads have been replaced, use same procedure in reverse order to reinstall the parts
that have been removed.
Replacing White Wear Pads
To replace the white wear pads, proceed with the following procedure:
1. Fully retract the HELPING-HAND™ automated arm.
2. Open the doghouse located on the streetside and remove the 2 wear pad retaining bolts that are
exposed on each side of the sliding rail (see Figure 10-39).
These bolts are only accessible when the arm is completely retracted.

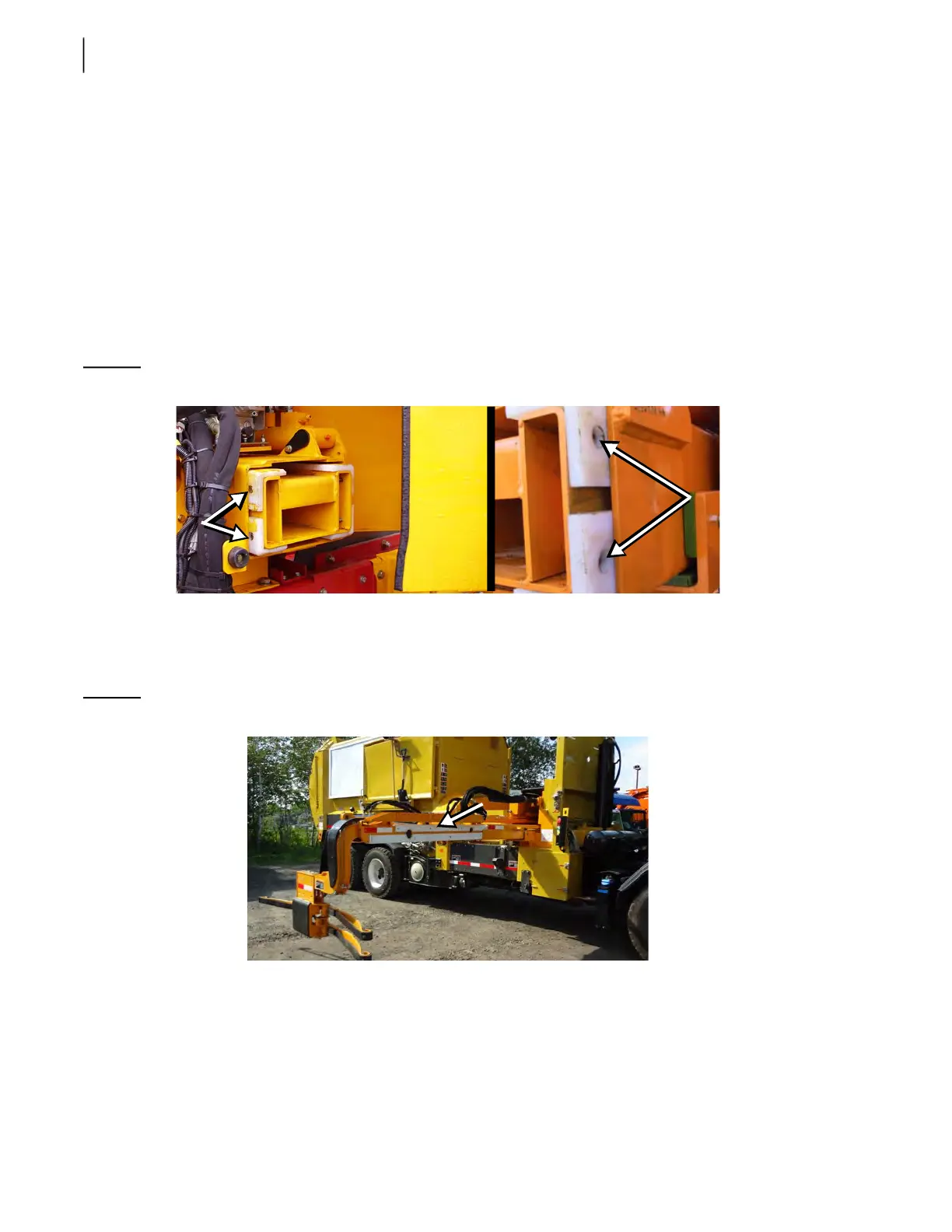

Figure 10-39
Wear pad retaining bolts (2 on each side)
3. Fully extend the HELPING-HAND™ automated arm.
4. Remove wear pads A and B (3 bolts each).
Do not install the new wear pads at this time.
Figure 10-40
Wear pad A
