196 General Maintenance
Replacing Body Hoist Cylinder
To replace the body hoist cylinder:
1. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
2. Disconnect the hydraulic hose and fitting.

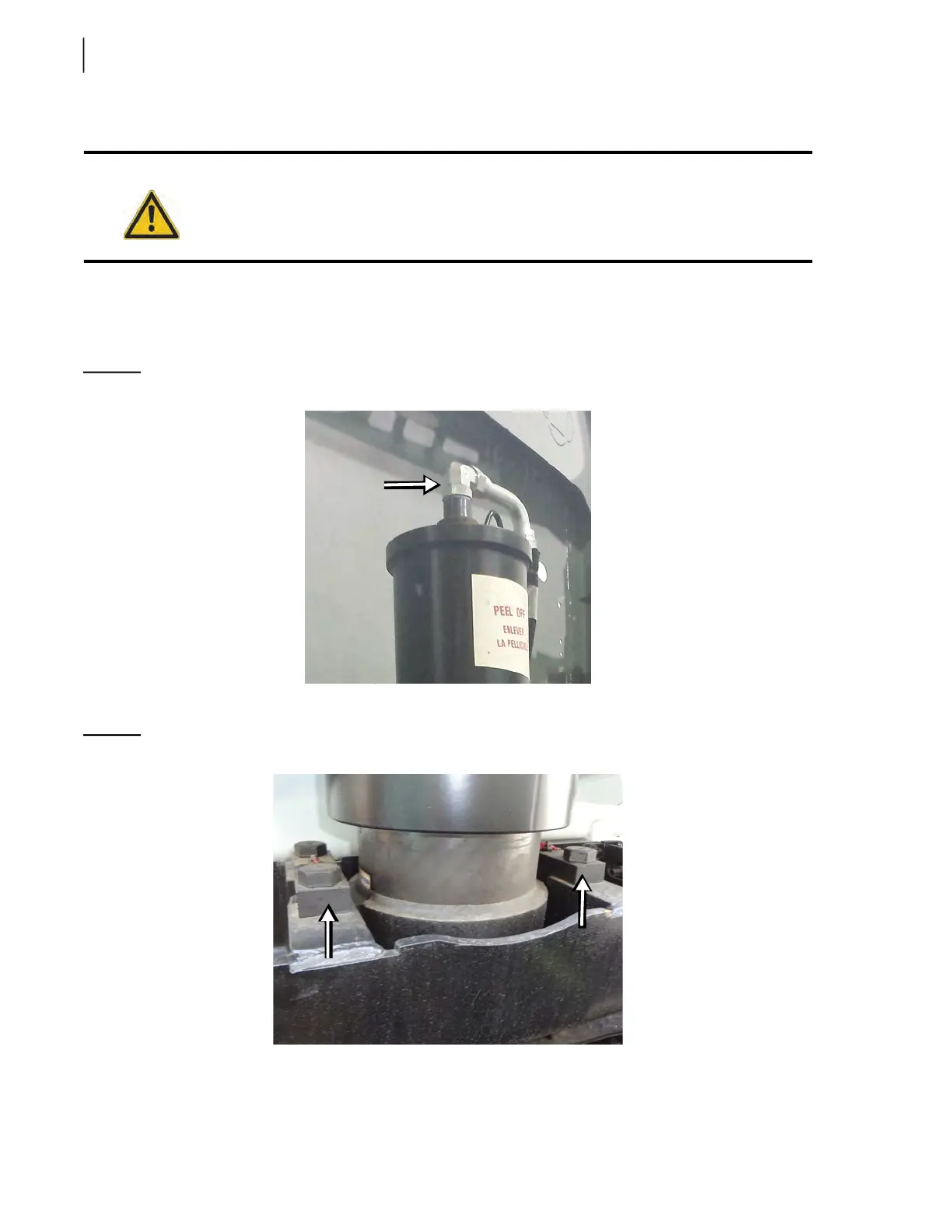

Figure 3-287
Hydraulic fitting
3. Take off the 2 cylinder base pillow blocks by unscrewing the bolts that hold them in place.
Figure 3-288
Base pillow blocks
4. Remove all 4 bolts that retain the pillow blocks to the cylinder support (see Figure 3-289).
The pillow blocks will remain in place.
Danger!
Never prop a loaded body. Unload the body prior to doing any repairs.
