98 General Maintenance

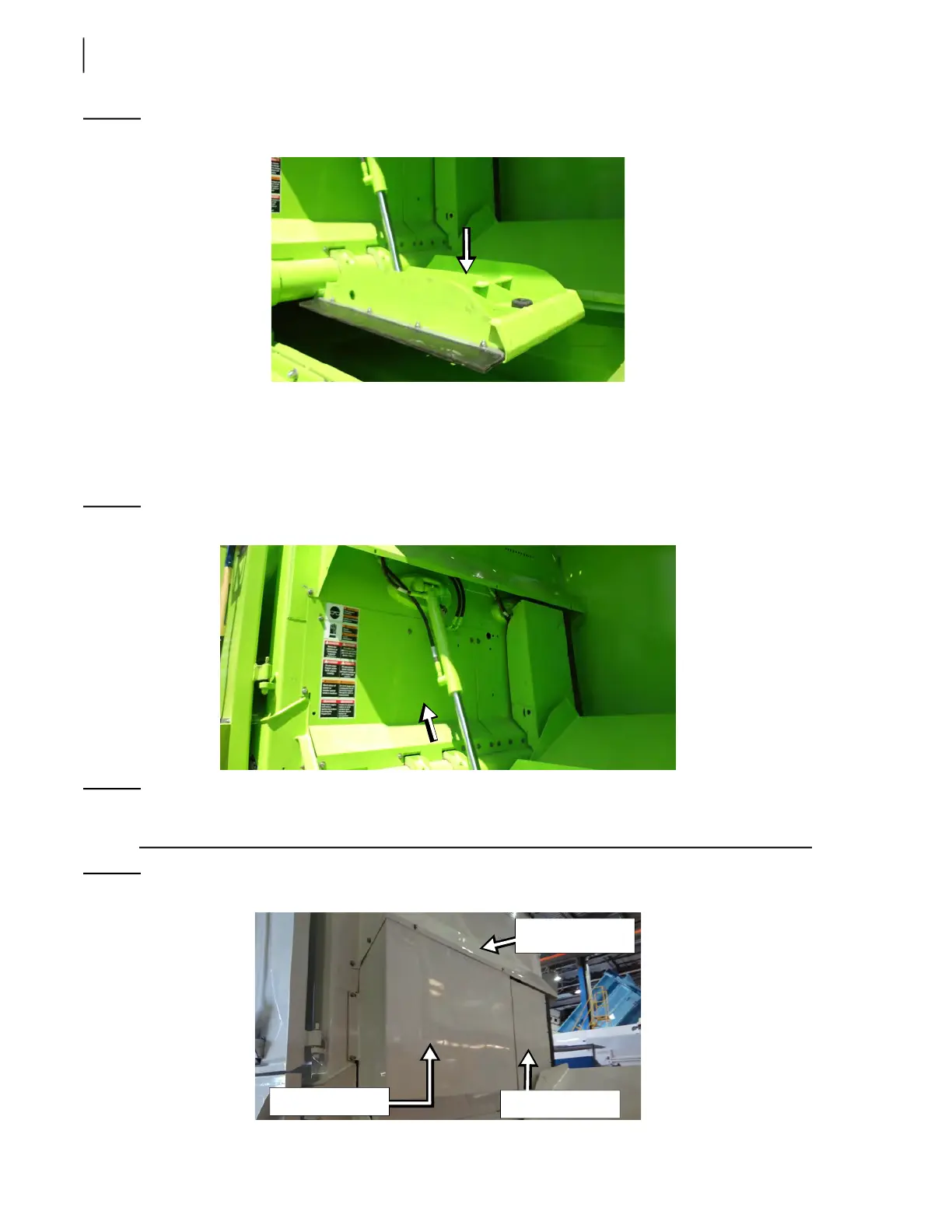

Figure 3-114
Crusher panel in lowered position
4. Turn OFF the hydraulic pump and the engine.
5. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
6. Remove the right-hand side protective panel that is fixed to the rear hopper wall (see Figure
3-115).
Figure 3-115
RHS protective panel
NOTE: On some trucks, especially those with a single split crusher panel, the crusher panel deflector
also needs to be removed (see Figure 3-116).
Figure 3-116
Hopper rear side
Protective cover
Crusher panel
Crusher panel
deflector
