General Maintenance 213

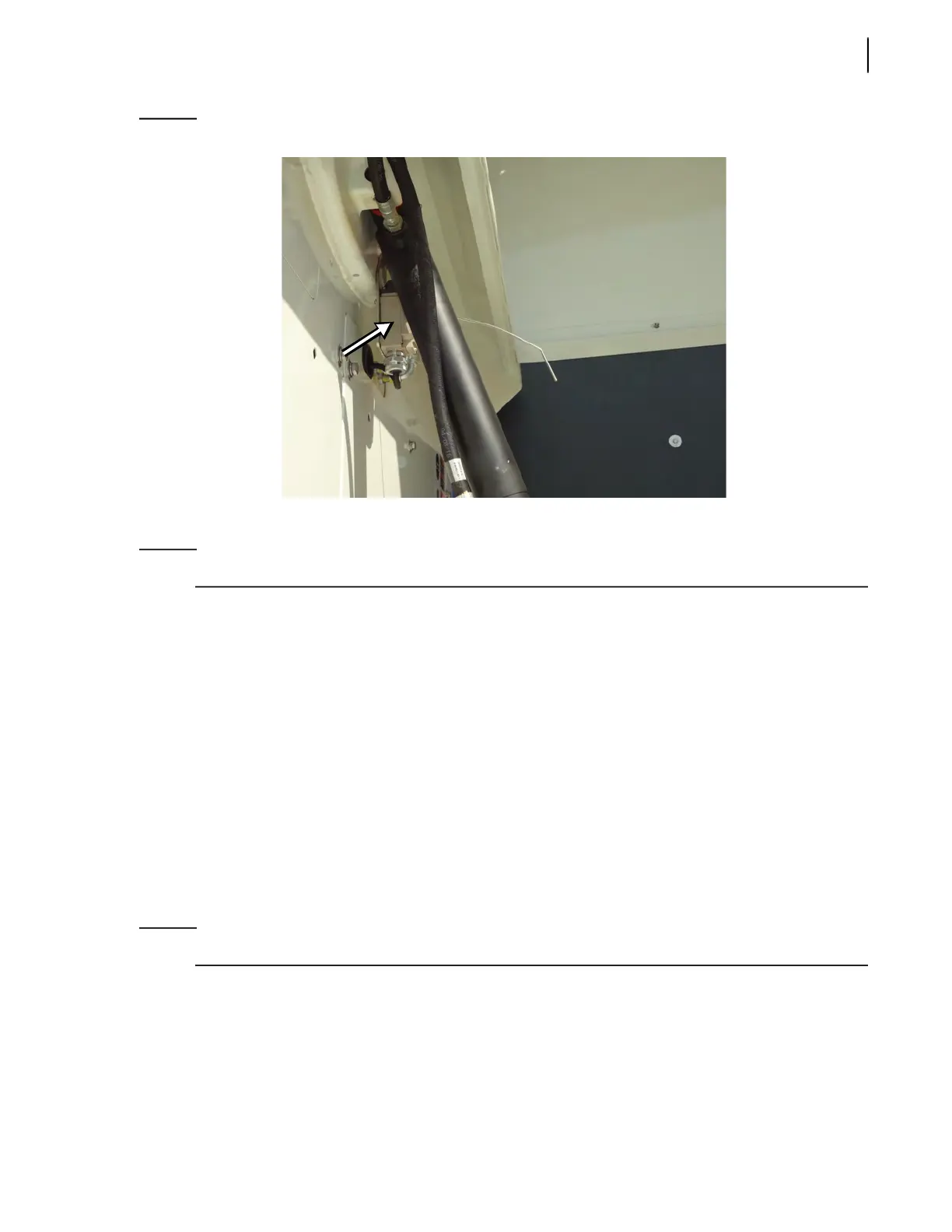

Figure 3-309
Crusher panel up limit switch
This switch is located behind the crusher panel itself.
NOTE: The crusher panel has to be lowered to access this limit switch.
To adjust the crusher panel up limit switch:
1. Lower the crusher panel using the CRUSHER PANEL DOWN switch on the in-cab control panel.
2. Turn OFF both the hydraulic pump and the engine.
3. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
4. Enter the hopper.
5. Adjust the crusher panel up limit switch so that it is triggered when the crusher panel is in the up
position.
6. Exit the hopper and enter the cab.
7. Start the truck and engage the hydraulic pump.
8. Fully raise the crusher panel using the CRUSHER PANEL UP switch on the in-cab control panel.
9. Using the joystick try to move the automated arm.
The arm should move.
NOTE: Do not forget to depress the deadman switch on the joystick to activate joystick functions.
10. If the arm does not move, repeat the procedure until the limit switch is properly adjusted.
The rod of the switch must touch the crusher panel while in fully raised position.
