216 General Maintenance
The detection lever or actuator must touch the black curved plastic cover when the arm is in the
hopper for the switch to be triggered.
8. Close the black plastic springed cover.
9. Start the engine and engage the hydraulic pump.
10. Test the operation.
11. Repeat the procedure until the limit switch is properly adjusted.
The A
RM EXTENDED warning light (see Figure 3-313) should turn off when the arm is in the
parked travel position.

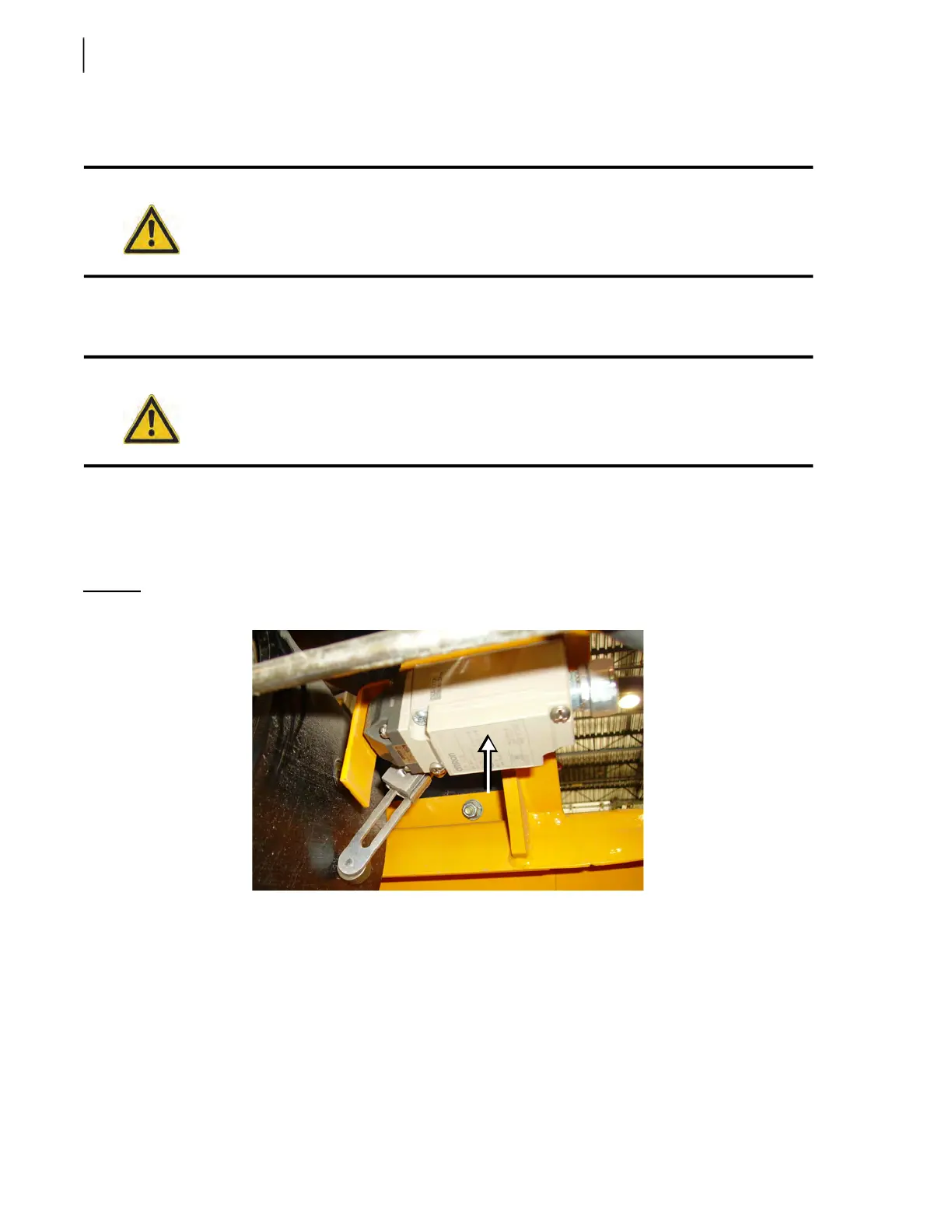

Figure 3-310
Arm parked limit switch
Warning
Injury or death may occur if you attempt to enter the body while the packer or arm is in
motion.
Caution
Make sure the ball valve on the suction line is fully open before starting the vehicle.
