Hydraulic System 267
IMPORTANT: Be sure not to pull on the front cap. Otherwise, the dowel pin may leave its position in the housing
causing damage to the pump.
NOTE: The cartridge will rotate with the housing.
13 i. Put all 7 bolts back in place.
13 j. Check if the shaft rotates freely.
13 k. Tighten up all bolts to the torque of 50 ft-lb.

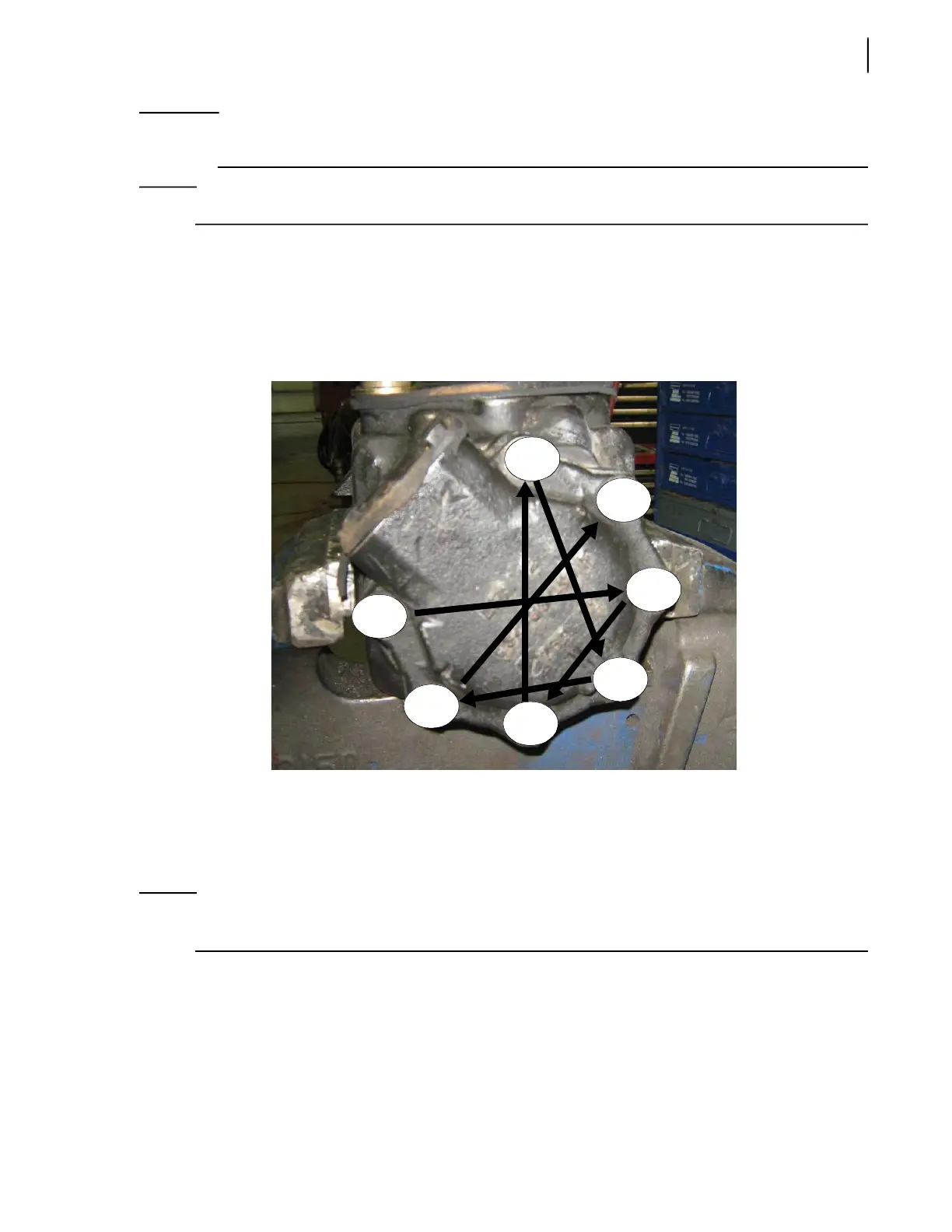

When tightening bolts, be sure to respect the following number sequence to avoid
damaging the seals:
14. Reinstall the drive shaft if it has been removed from the engine.
Before proceeding with the installation of the drive shaft apply the following procedure:
14 a. On the drive shaft mark the location where a hole must be drilled.
Use the yoke as a jig to determine where exactly the hole must be drilled then remove it.
NOTE: The yoke must be fully engaged on the shaft before determining the exact location where the
hole must be drilled.
14 b. Drill a hole with a 5/16” diameter on the drive shaft.
4
7
2
5
3
6
1
