Hydraulic System 289

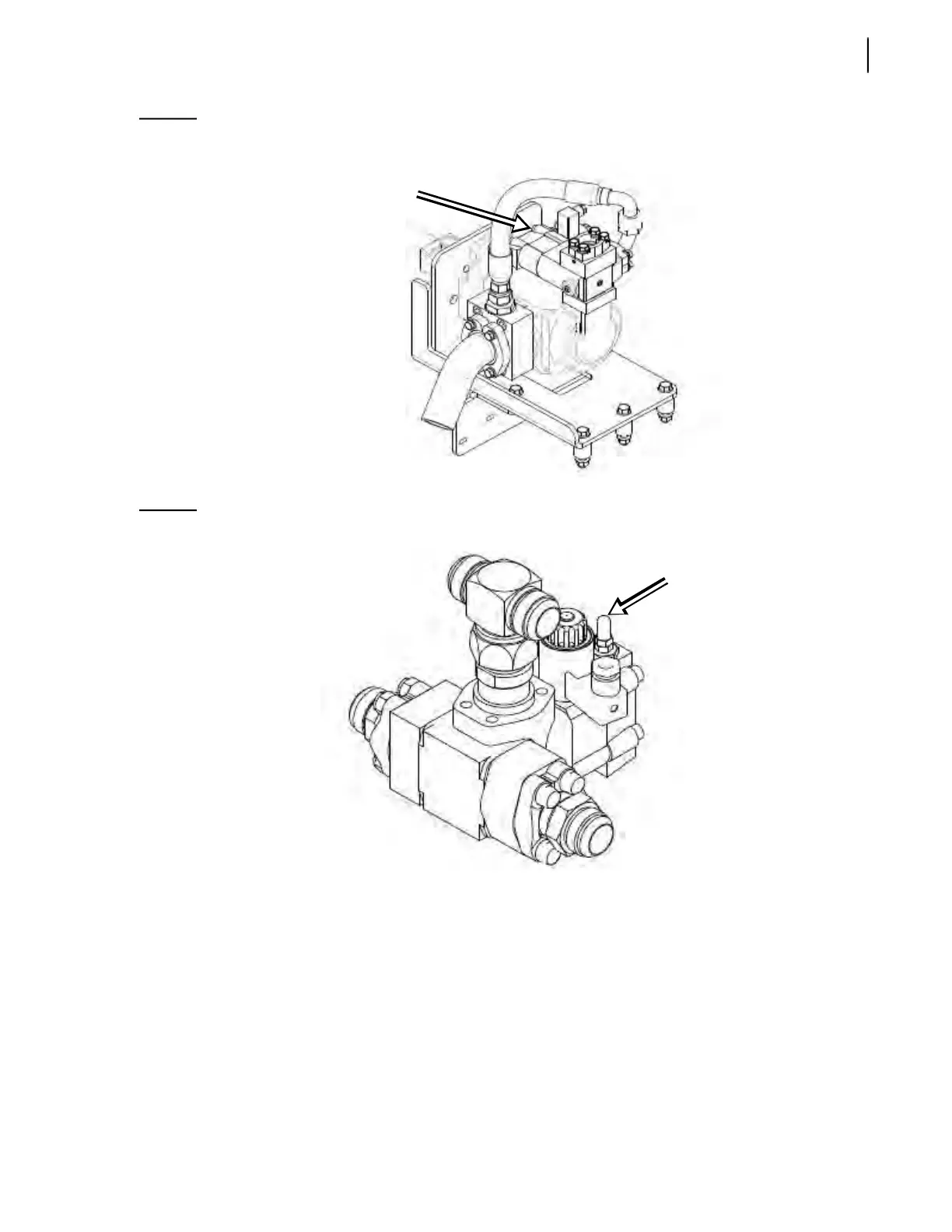

Figure 5-31
Relief valve on pump
Figure 5-32
Relief valve on chassis
To adjust the body vane pump relief valve:
1. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
2. Install the 0–4000 PSI pressure gauge on the quick-connect coupler located on the valve inlet
cover.
Adjustment screw
Adjustment screw
