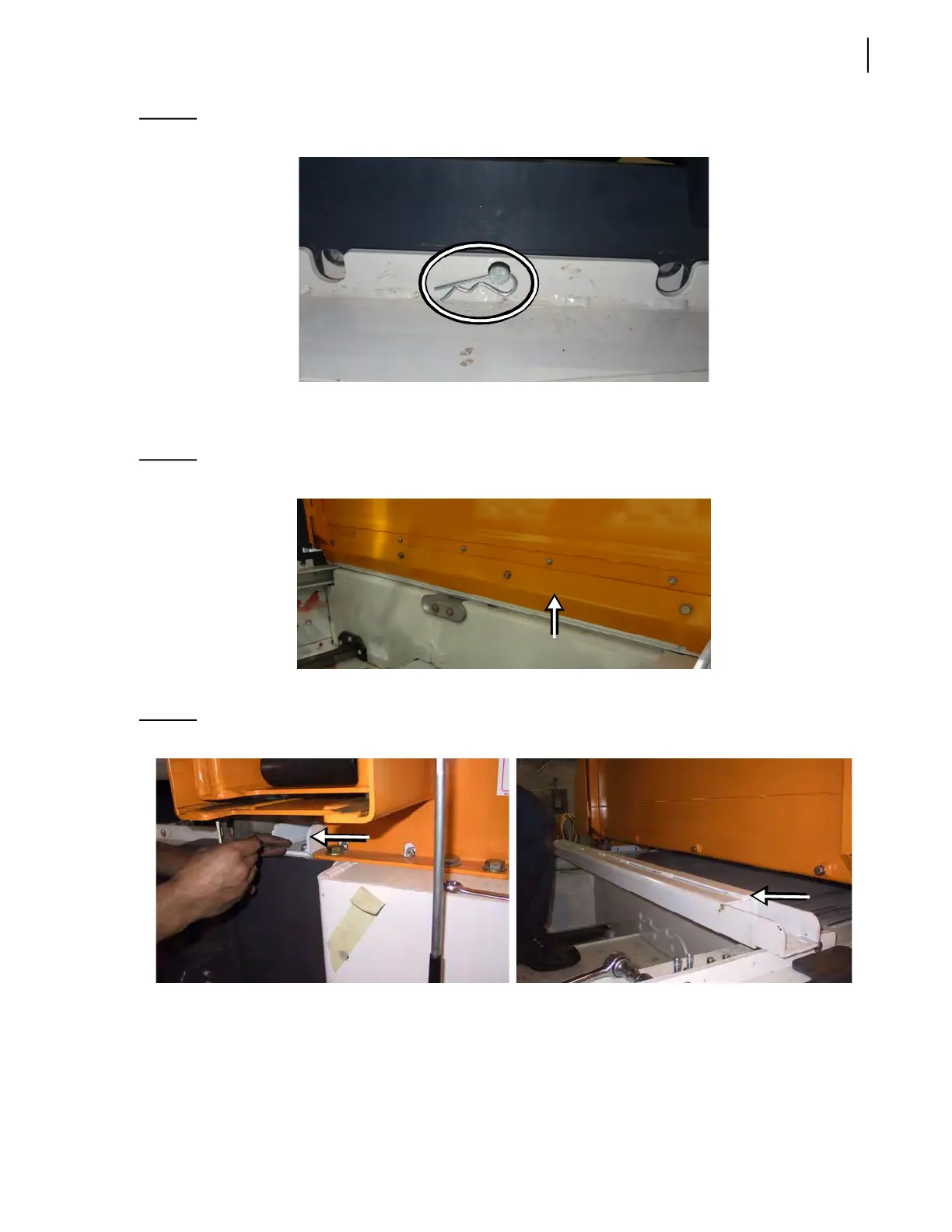

General Maintenance 51
Figure 3-25
R-pin holding anti-spill guard in place
2. Remove the deflector panel.
Use a ¾-inch wrench to remove the 4 bolts that hold the panel.
Figure 3-26
Deflector panel
3. Remove the transversal beam by taking out the 4 bolts (2 on each side) that retain it.
Figure 3-27
Transversal beam
4. Remove the upper part of both side rails (one on each side of the hopper) [see Figure 3-28].
4 bolts are to be taken out to remove this section of the side rail.
