General Maintenance 77

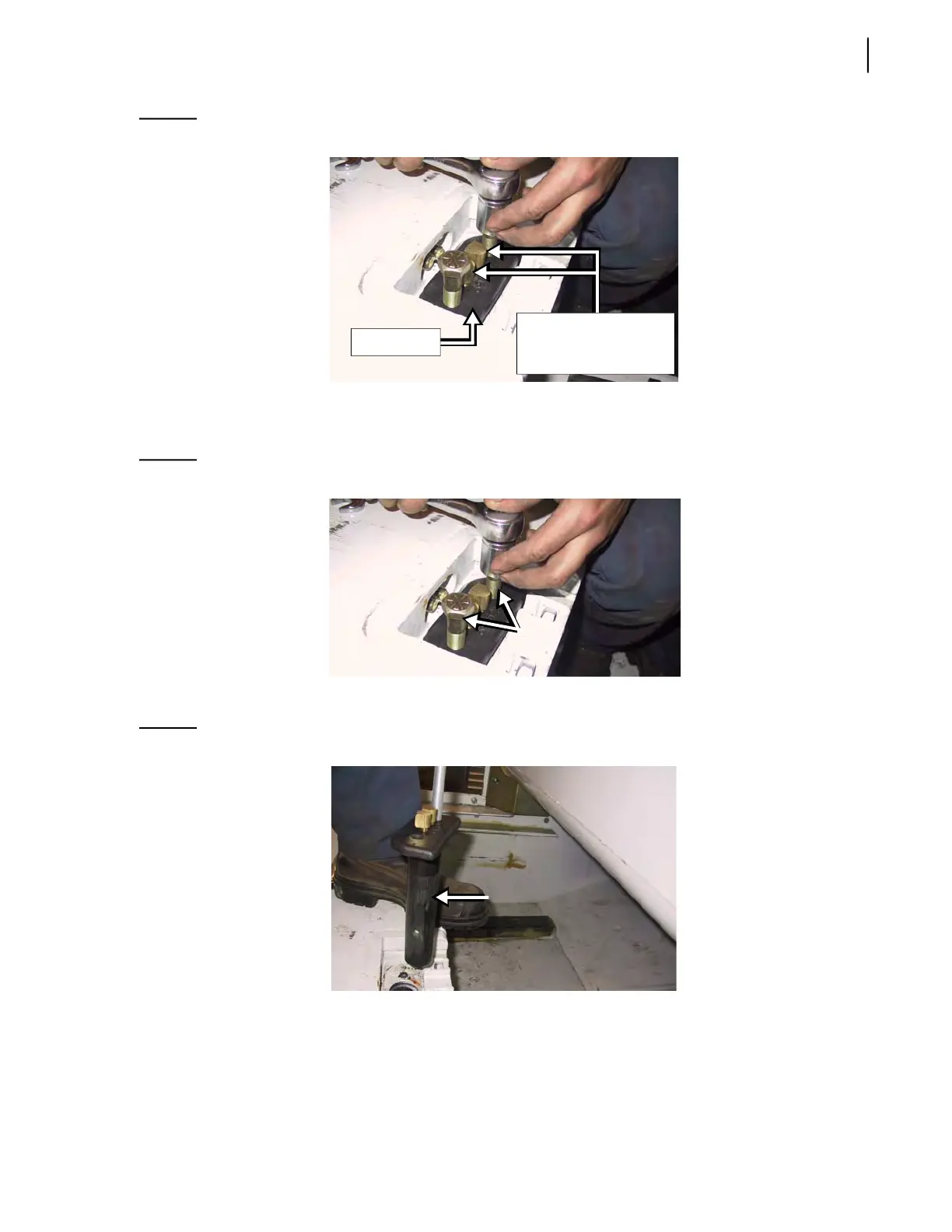

Figure 3-79
Cylinder pin
3. Remove the cylinder pin.
Take 2 5/8-18 NF, 9-inch long fine-threaded bolts and screw them in the pin head holes.
Figure 3-80
5/8-18 NF fine-threaded bolts
Tighten the bolts until the cylinder pin is completely removed.
Figure 3-81
Cylinder pin removed
4. Exit the hopper.
5. Start the engine and engage the hydraulic pump.
6. Retract both hydraulic cylinders.
7. Turn OFF the hydraulic pump and the engine.
Loosen these 2 bolts to
disconnect greasing
hoses from cylinder pin
Cylinder pin
