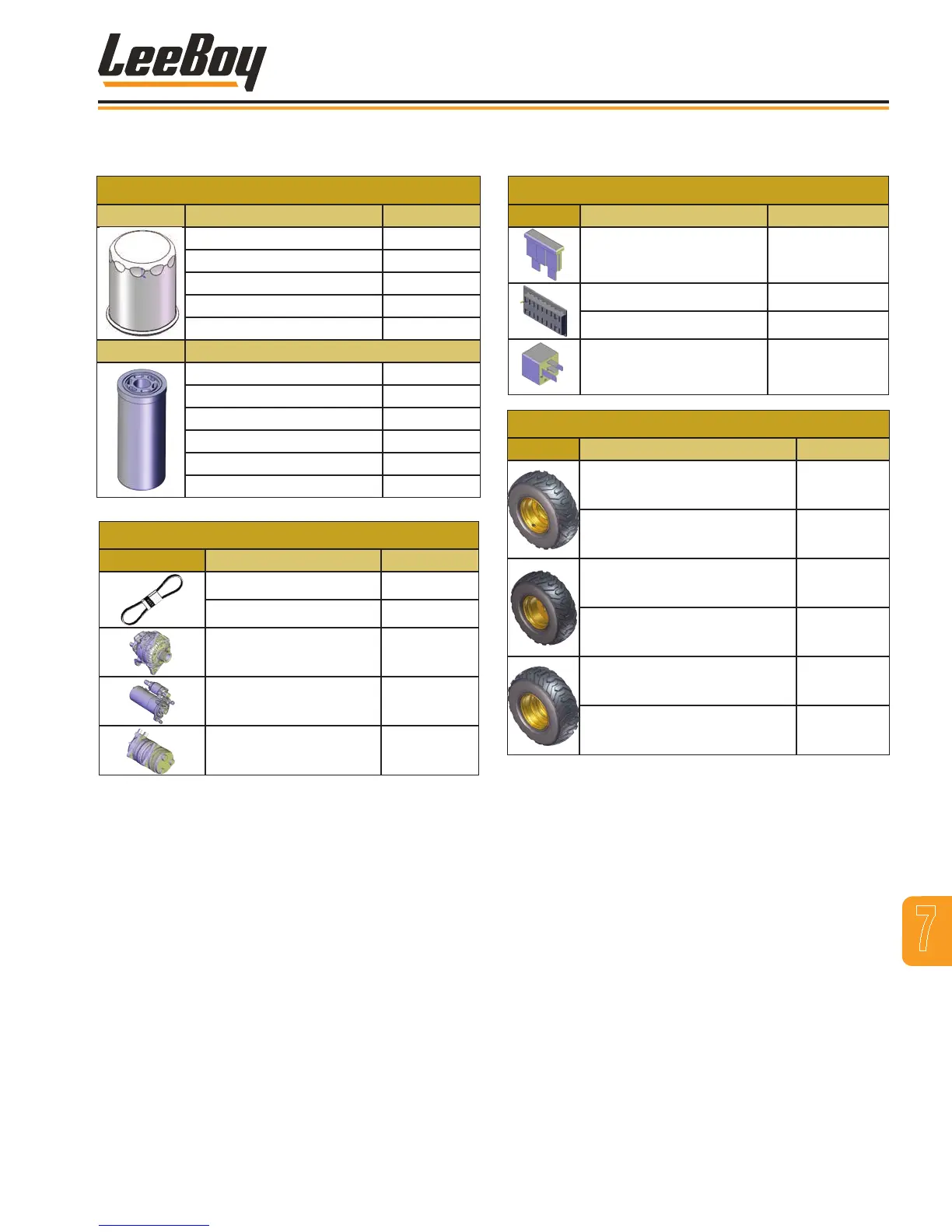

LeeBoy 685D - Quick Reference for Parts

QUICK REFERENCE
FILTERS/STRAINERS
Engine Description Part #
Oil Filter 1012474-12
Water Separator 1013667-18
Fuel Filter 1012474-27
Air Cleaner, Primary 1011263-13
Air Cleaner, Secondary 1012474-25
Hydraulic
Suction Strainer 1014037
Suction Strainer 1014027
Charge Filter 290030
Charge Filter Head 1017402
Return Filter 1018447
Return Filter Head 1018446
ENGINE COMPONENTS
Description Part #
Engine Belt, Non-AC 1017509-08
Engine Belt, w/AC 1017509-12
Alternator 1017509-06
Starter 1008650-01
AC Compressor 1013772
ELECTRICAL COMPONENTS
Description Part #
• 10A ATC
• 15A ATC
36340
36341
Fuse Block, 18 Gang - ATC 685060
Fuse Block, 6 Gang - ATC 36695
Relay, 12V 36085
TRACK ASSEMBLIES
Description Part #
Rear Tire/Wheel Assembly - Right 1010197R
Rear Tire/Wheel Assembly - Left 1010197L
Front Tire/Wheel Assy, 2WD - Right A120330AL
Front Tire/Wheel Assy, 2WD - Left A120330AR
Front Tire/Wheel Assy, AWD - Right 1012240R
Front Tire/Wheel Assy, AWD - Left 1012240L
Specications and designs may change without prior notice. These
illustrations do not necessarily show the standard versions.
7
Illustrated Parts List
LeeBoy 685D Motor Grader 7-3
