MACHINE OVERVIEW
1
2
3
4
5
6
7

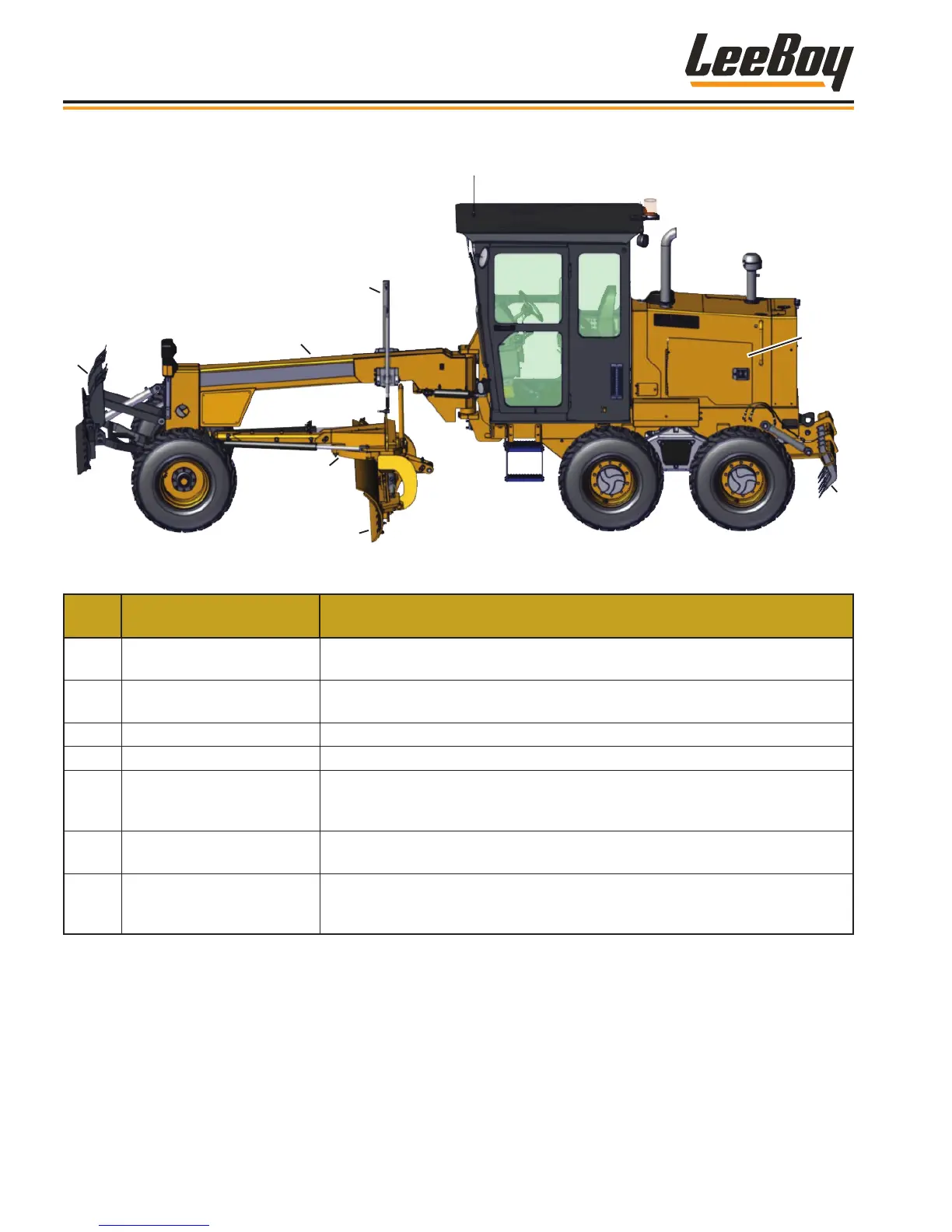

Figure 3-1. Machine Overview
ITEM
NO.
CONTROL NAME FUNCTION
1 Front Attachment Mount
Optional attachments can be mounted to the attachment plate on the nose of
the grader, including an 8-foot blade or scarier..
2 Front Boom
The front part of the grader that pivots. The moldboard and optional
attachments are mounted onto the boom.
3 Lift Cylinders Cylinders lift and lower moldboard blade.
4 Turntable Rotates the moldboard left and right.
5 Moldboard
The moldboard blade is used for grading and smoothing surfaces. Also used
for ditch digging. Mounted under the boom, supported by a drawbar and
turntable.
6 Engine Access Panel
Lockable access doors on both sides of the machine for easy access to
engine and other components.
7 Rear Scarier (Option)
Used for penetrating and loosening earth, gravel, asphalt and similar surfac-
es. Includes nine (9) replaceable teeth mounted on adjustable shanks and
secured with pin locks..
Components
LeeBoy 685D Motor Grader3-6
