LeeBoy 685D - Main Control Panel Functions

MAIN CONTROL PANEL
1
2
3
17
18
4
5 6
7 8
9
10
11
12
13
14
15
16
19
20
21

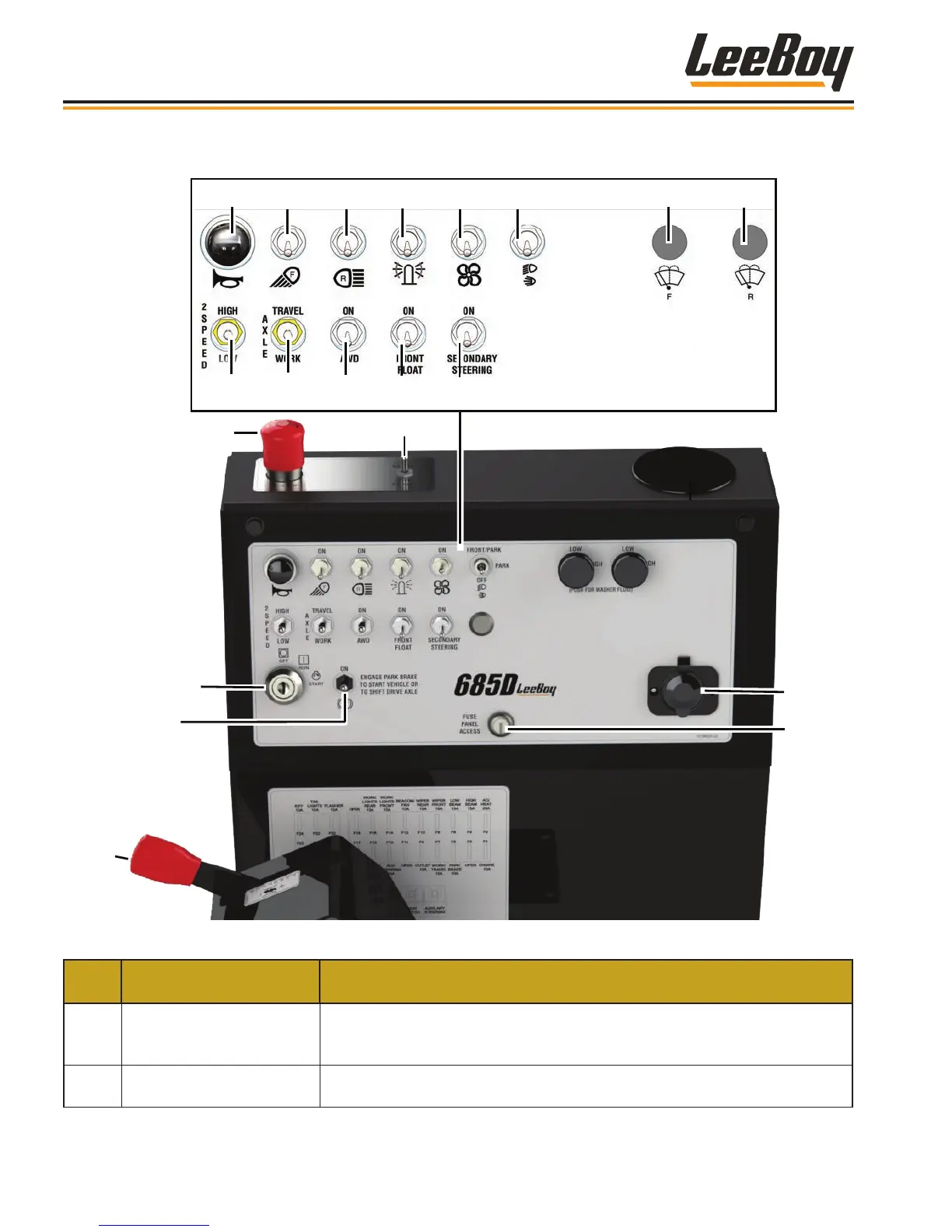

Figure 3-4. Main Control Panel
ITEM
NO.
CONTROL NAME FUNCTION
1 (Emergency) E-Stop
Immediately stops the engine and all electronic functions. Turn clockwise to
release the emergency stop. If machine is moving, the park brake will apply
and the grader will stop rapidly.
2 Headlight High/Low Beam
Use this switch to select HIGH or LOW beam when the headlights are on.
Turn the switch up for HIGH BEAM and down for LOW BEAM.
Components
LeeBoy 685D Motor Grader3-10
