Grading Around Objects
Avoid hazards and obstructions
such as overhangs, ledges, slide areas, electrical
lines, underground cable, water main and gas lines,
etc., that can result in serious injury or even death.
ALWAYS request assistance from the appropriate
authorities if operating close to electrical or gas
lines, water main and any underground cables.
Method 1: Slowly drive around.
Method 2: Use moldboard slide.

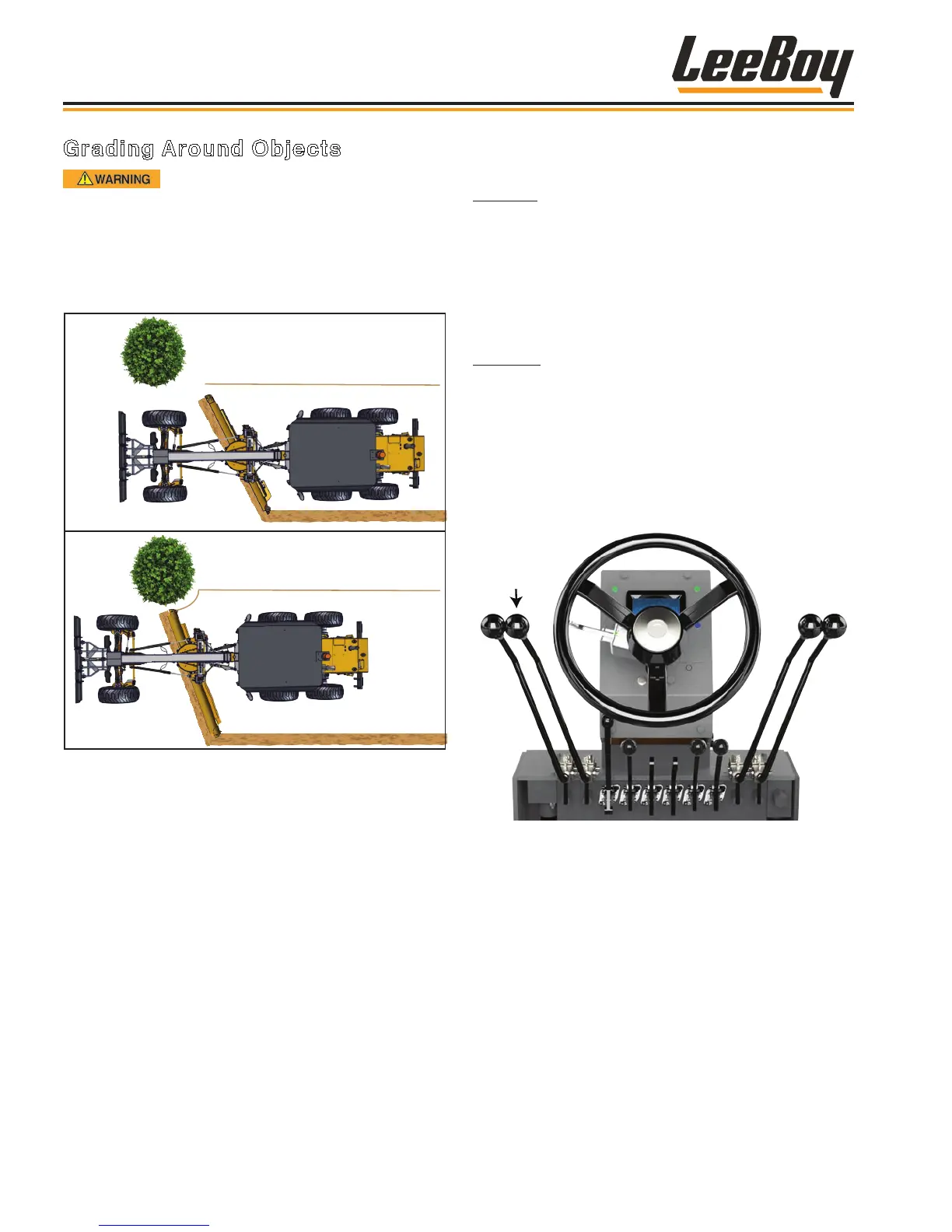

Figure 4-49. Grading Around Objects
There are two basic methods for grading around objects
(Figure 4-49):
Method 1:
1. Reduce speed before approaching object.
2. Slowly maneuver the grader around the object,
driving as close as possible (depending upon
skill level) to reduce the amount of hand shoveling
needed.
Method 2:
1. Reduce speed before approaching object.
2. Use the moldboard slide shift lever to shift the
moldboard in the opposite direction of the object.
(Figure 4-50)
• Pull lever to slide the moldboard left.
• Push lever to slide the moldboard right.
Moldboard
Slide Lever
Figure 4-50. Moldboard Slide Lever
3. Slowly follow the shape of the object, sliding the
moldboard more if needed.
4. Slide the moldboard back to its original position
after passing the object.
Operation
LeeBoy 685D Motor Grader4-30
