SPECIFICATION CHARTS

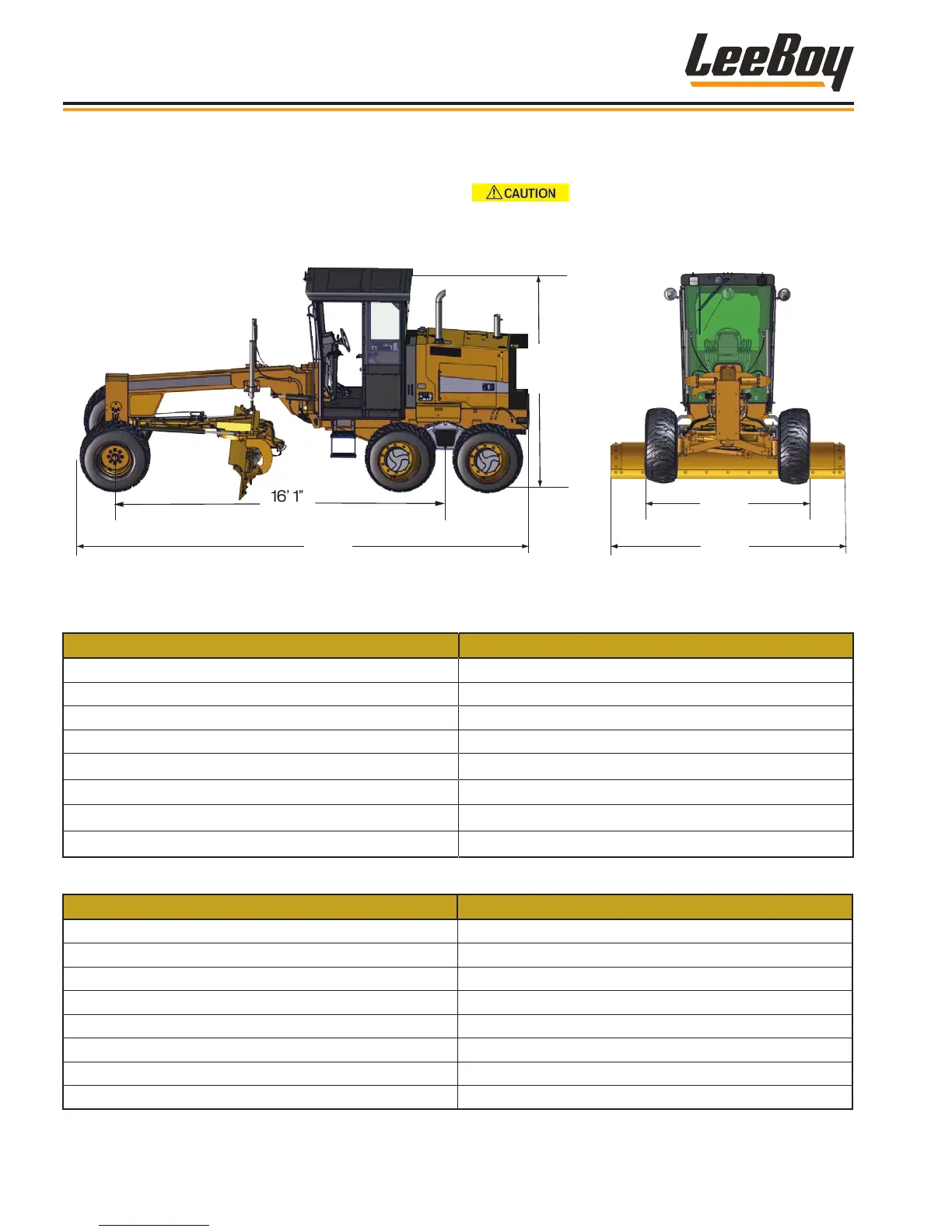

The specications provided in this section include
screed weights, dimensions, performance, and torque
values for both metric and standard inch fastener.
16’ 1”
(4.9 m)
22’ 3”
(6.8 m)
11’
(3.35 m)
10’ 2”
(3.1 m)
7’ 8”
(2.3 m)
Table 2-1. Machine Dimensions
ITEM SPECIFICATION
Base Overall Length 22 ft 3 in (6.8 m)
Overall Height with Beacon 10 ft 2 in (3.1 m)
Overall Width (Outside Front Tires) 7 ft 8 in (2.37 m)
Overall Width (Moldboard ) 11 ft (3.3 m)
Base Weight 16,000 lbs (7257.47 kg)
Wheelbase 16 ft 1 in (4.9 m)
Outside Turning Radius 22 ft (6.7 m)
Minimum Ground Clearance 1 ft (30.4 cm)
Table 2-2. Engine Specications
ITEM SPECIFICATION
Model Cummins 3.8 Tier 4F
Engine Type 4-Cylinder, Water-Cooled Diesel
Horsepower 130 HP @ 2200 RPMs (97 kW)
Displacement, Bore and Stroke 229 cu in (3.8 L); 4.02 in (102 mm); 4.53 in (115 mm)
High Idle Speed 2200 RPMs
Maximum Gross Torque 360 ft lbs (488 N•m)
Maximum Gross Torque 360 ft lbs
Idle Speed 1200 RPMs
Replace original equipment only with
components approved by LeeBoy.
LeeBoy 685D Motor Grader
