Table 5-2. Lubrication Points
No. ITEM INTERVAL
1 Front Axle Joints (both sides) Weekly
2 Front King Pins (both sides) Monthly
3
Drawbar Ball (until grease es-
capes from the ball joint)
Daily
4 Steering Cylinders and Tie Rod Daily
5 Moldboard Swing Cylinders Daily
6 Turntable (4 grease ttings) Weekly
7
Articulated Cylinder (until grease
escapes from clevis pin joints)
Weekly
8
Rear Axle
* (6 on each side)
Monthly
9
Moldboard Lift Trunnion (both
sides)
Daily
10
Moldboard Lift Cylinders (both
sides)
Daily
11 Moldboard Stabilizer Weekly
12
Articulated Joint (until grease
escapes from the upper and
lower joints)
Monthly
13 Moldboard Tilt Cylinder Weekly
14
Moldboard Mounting Pins (both
sides)
Weekly
15 Valve Handles Monthly
16 Door Handle Monthly
17 FNR Pedal Weekly
18 **
Front Blade/Scarier Lift Cylinder
(See Below)
Weekly
19 ** Front Blade Joints Weekly
20 ** AWD Front King Pins (both sides) Weekly
21 **
Rear Scarier Lift Cylinders (both
sides)
Weekly
* Not all grease ttings are shown on rear axle
graphic. Be sure to look closely and grease all
ttings on inside of tandems at the pivot point (6 on
each side of axle.

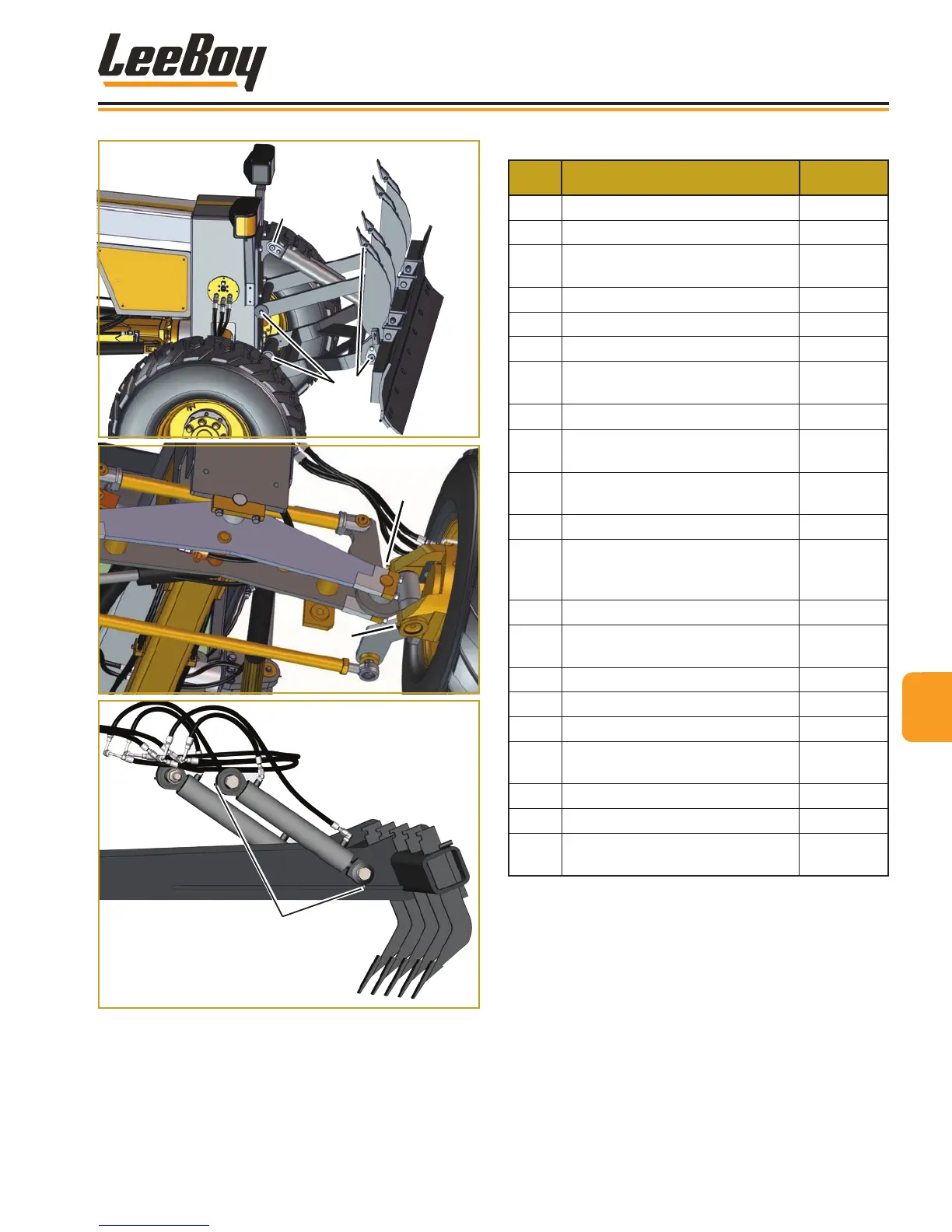

** OPTION. Only applicable if equipped with options
as shown:
19
18
20
20
21
5
Maintenance
LeeBoy 685D Motor Grader 5-7
