Page 281
MegaRAID SAS Software User Guide Chapter 8: Configuration
| Changing Power Settings

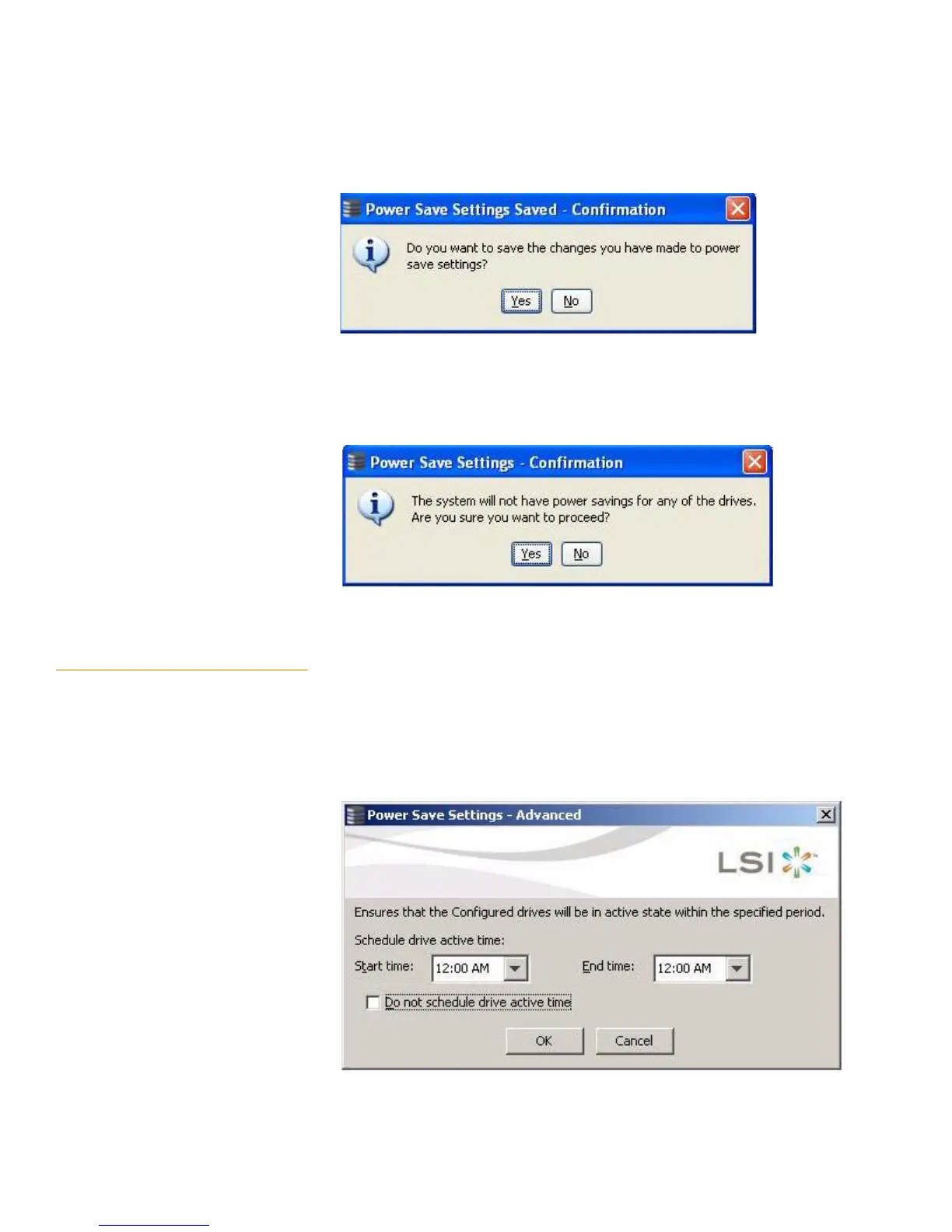

Figure 160: Power-Save Settings
If you do not specify the Power-Save settings in the Manage Power Save Settings
screen as shown in Figure159, the following dialog box appears.
Figure 161: Power-Save Settings Not Saved
8.5.2 Power Save Settings -
Advanced
You can schedule the drive active time by selecting the Start time and End time in the
Power Save Settings - Advanced screen.
Perform the following steps to schedule the drive active time.
1. Click the Advanced button in the Manage Power Save Settings screen as shown in
Figure159.
2. The Power Save Settings - Advanced screen is displayed in the following figure.
Figure 162: Power Save Settings - Advanced
