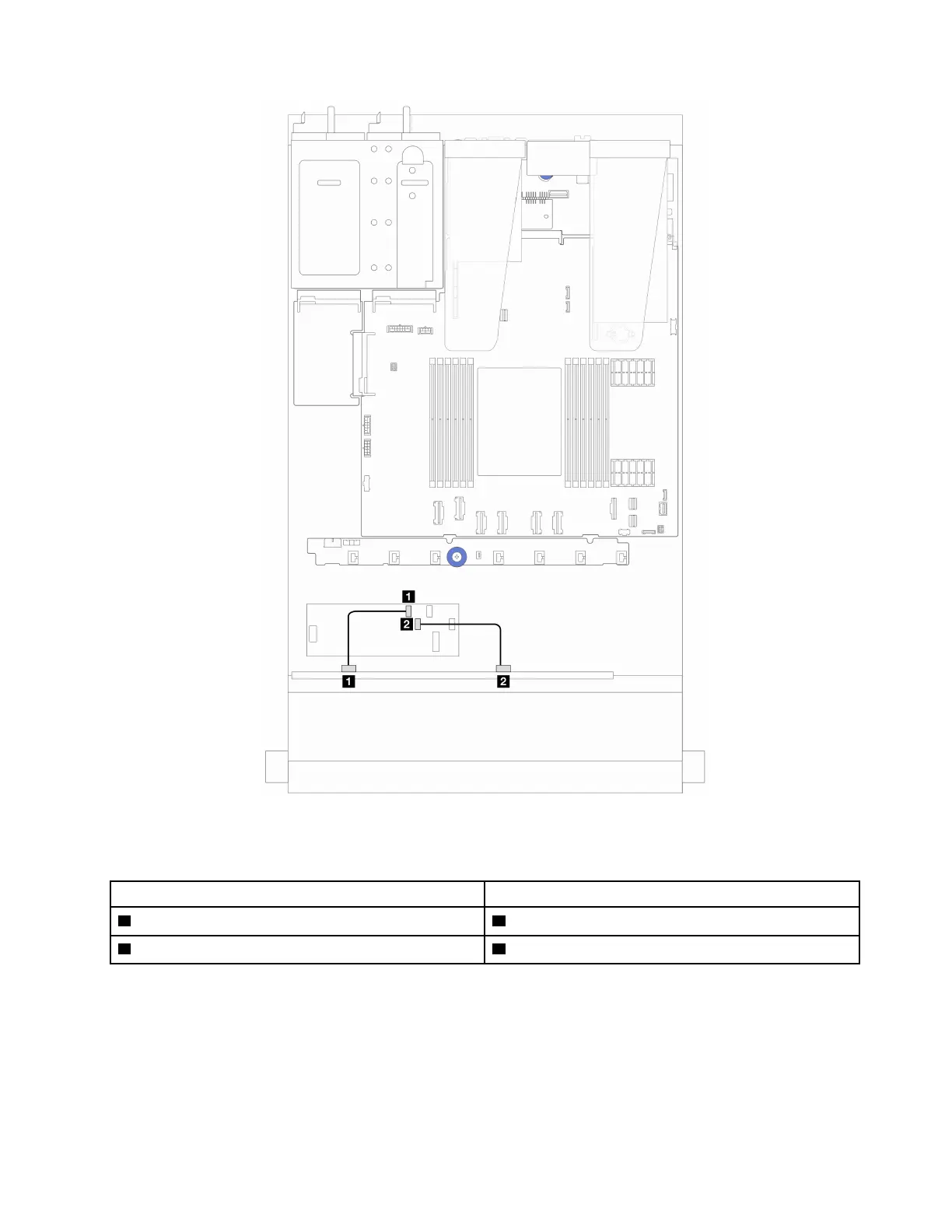

Figure 196. Cable routing for 8 x 2.5-inch front SAS/SATA drive bays with a 16i CFF RAID/HBA adapter (Gen 4)
Table 37. Mapping between one 8 x 2.5-inch front SAS/SATA backplane and a 16i CFF RAID/HBA adapter
From To
1 SAS 0 on the front backplane 1 C0 on the CFF RAID/HBA adapter
2 SAS 1 on the front backplane 2 C1 on the CFF RAID/HBA adapter
For power and input connections of CFF RAID/HBA adapters, refer to
“CFF RAID/HBA adapter” on page
222
.
Chapter 6. Internal cable routing 261
