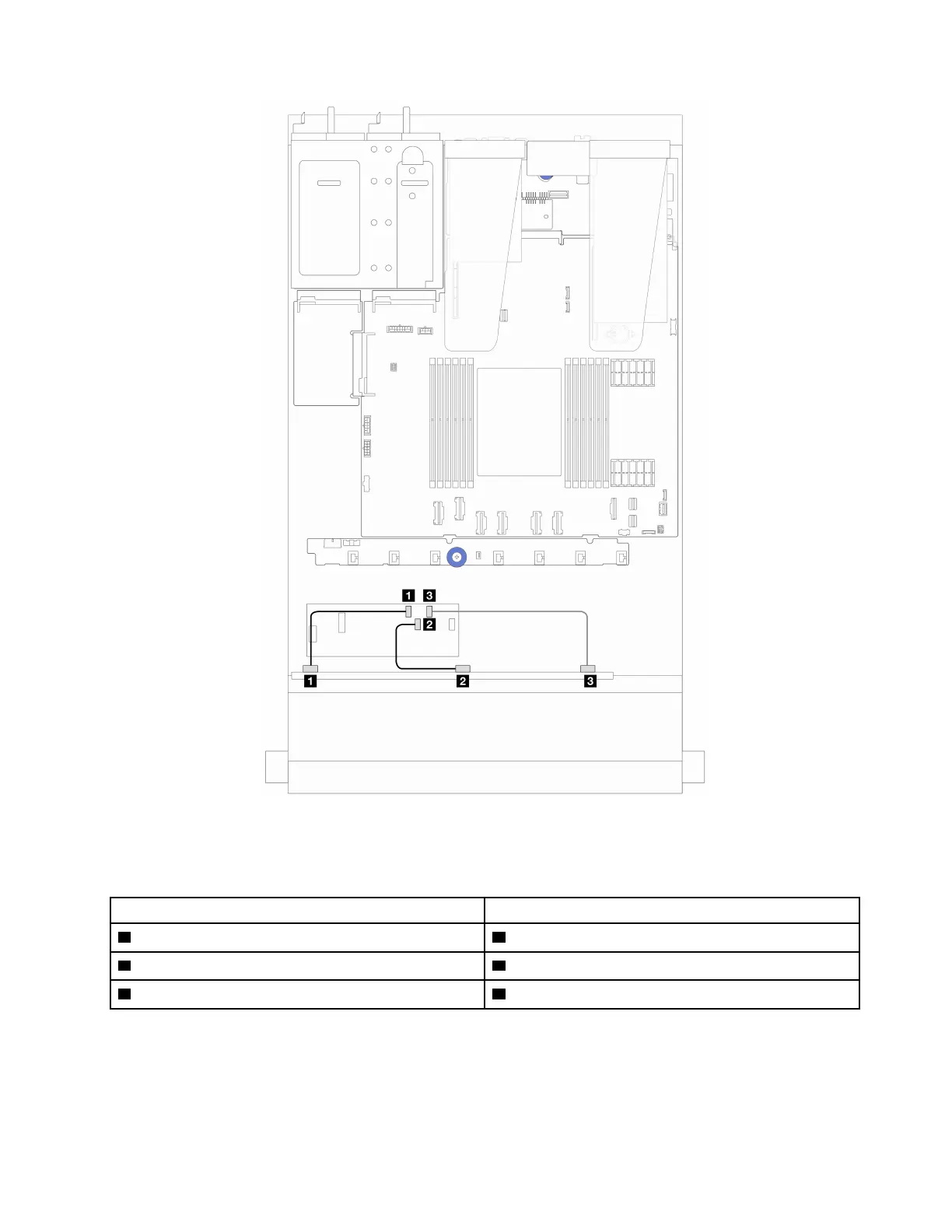

Figure 203. Cable routing for 6 front SAS/SATA drives and 4 front AnyBay drives bays and a 16i CFF RAID/HBA adapter
(Gen 3)
Table 44. Mapping between one front AnyBay and a 16i CFF RAID/HBA adapter (Gen 3)
From To
1 SAS 0 on the front backplane 1 C0 on the CFF RAID/HBA adapter
2 SAS 1 on the front backplane 2 C1 on the CFF RAID/HBA adapter
3 SAS 2 on the front backplane 3 C2 on the CFF RAID/HBA adapter
Chapter 6. Internal cable routing 273
