Note: Gen 3 and Gen 4 16i CFF RAID/HBA adapters are slightly different in their connector locations, but the
connection method is similar. The following illustration takes Gen 4 16i CFF RAID/HBA adapters as an
example.

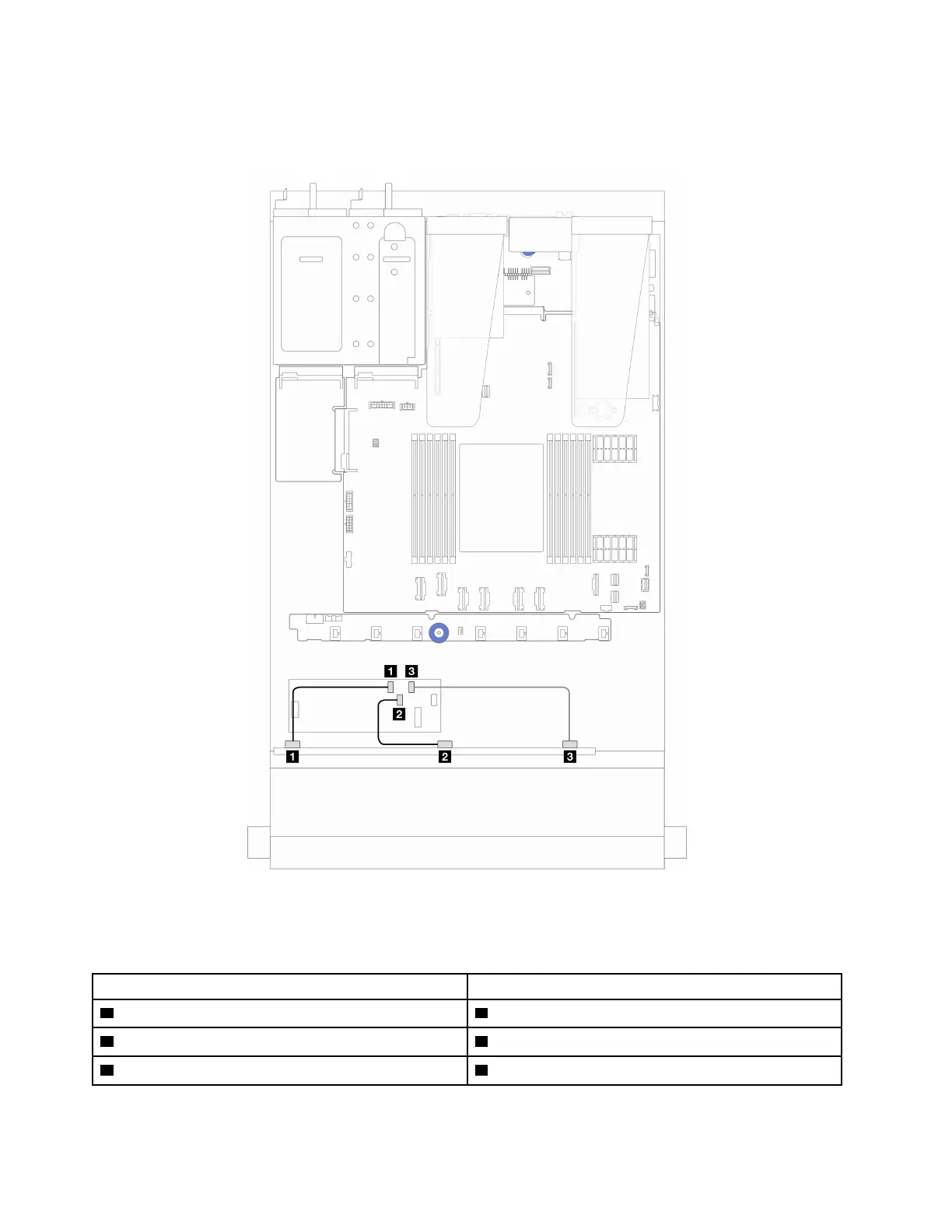

Figure 204. Cable routing for 6 front SAS/SATA drives and 4 front AnyBay drives bays and a 16i CFF RAID adapter (Gen 3
or Gen 4)
Table 45. Mapping between one front AnyBay and a 16i CFF HBA/RAID adapter
From To
1 SAS 0 on the front backplane 1 C0 on the CFF RAID/HBA adapter
2 SAS 1 on the front backplane 2 C1 on the CFF RAID/HBA adapter
3 SAS 2 on the front backplane 3 C2 on the CFF RAID/HBA adapter
274 ThinkSystem SR635 V3 User Guide
