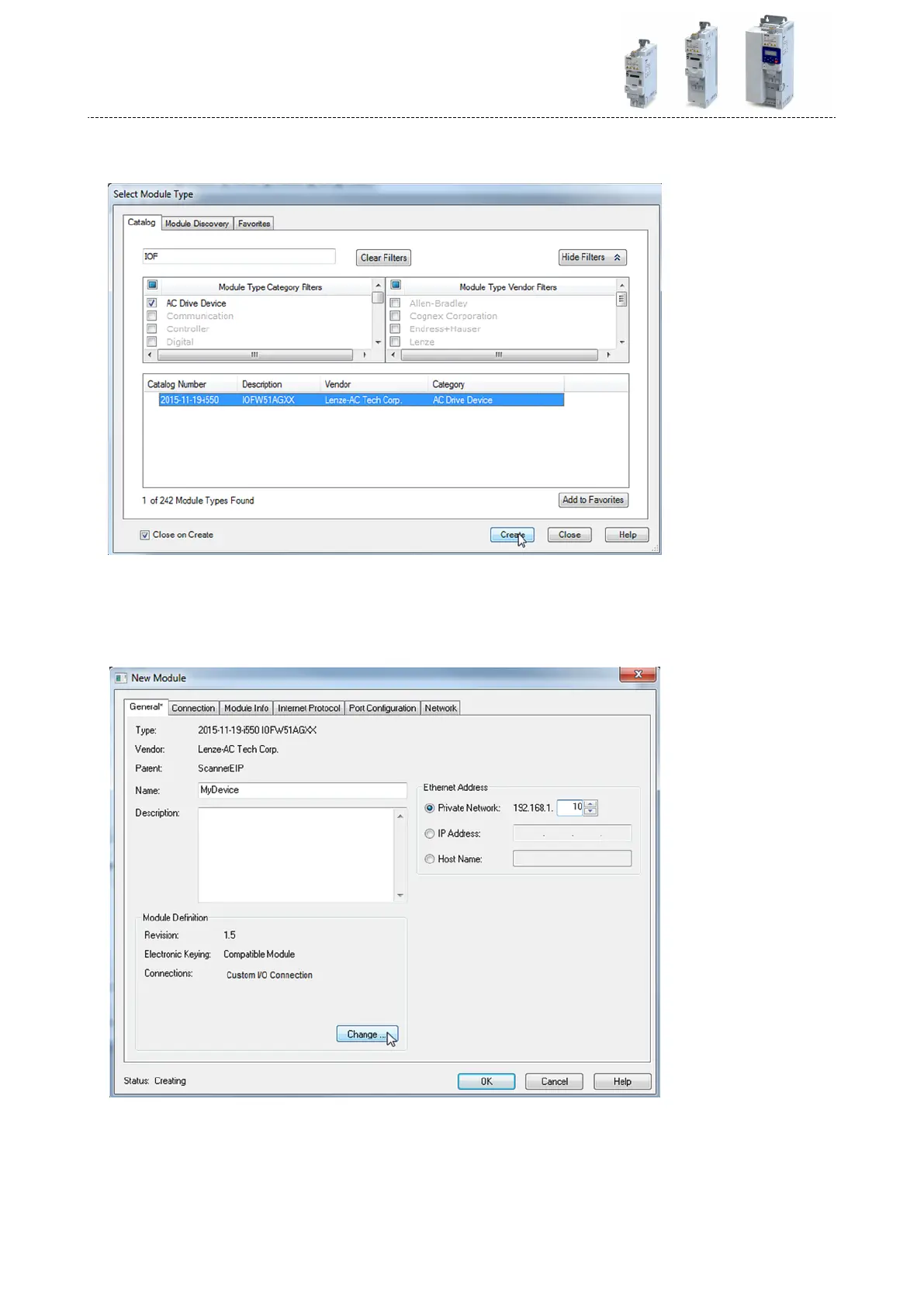

Execute a customer specic conguraon in »RSLogix™ 5000« (from version 20):
1.Open the dialog "Select Module Type".
2.Go to the "Catalog" tab ...
a) and select the "AC Drive Device" type category.
b) select the "IOFW51AGXX" catalog.
3.Click "Create".
The "New Module" dialog box is opened.
4.Go to the "General" tab ...
a) assign a name for the inverter.
b) assign an unambiguous IP address.
Conguring the network
EtherNet/IP
Process data transfer
338
