4.4.7 PROFINET

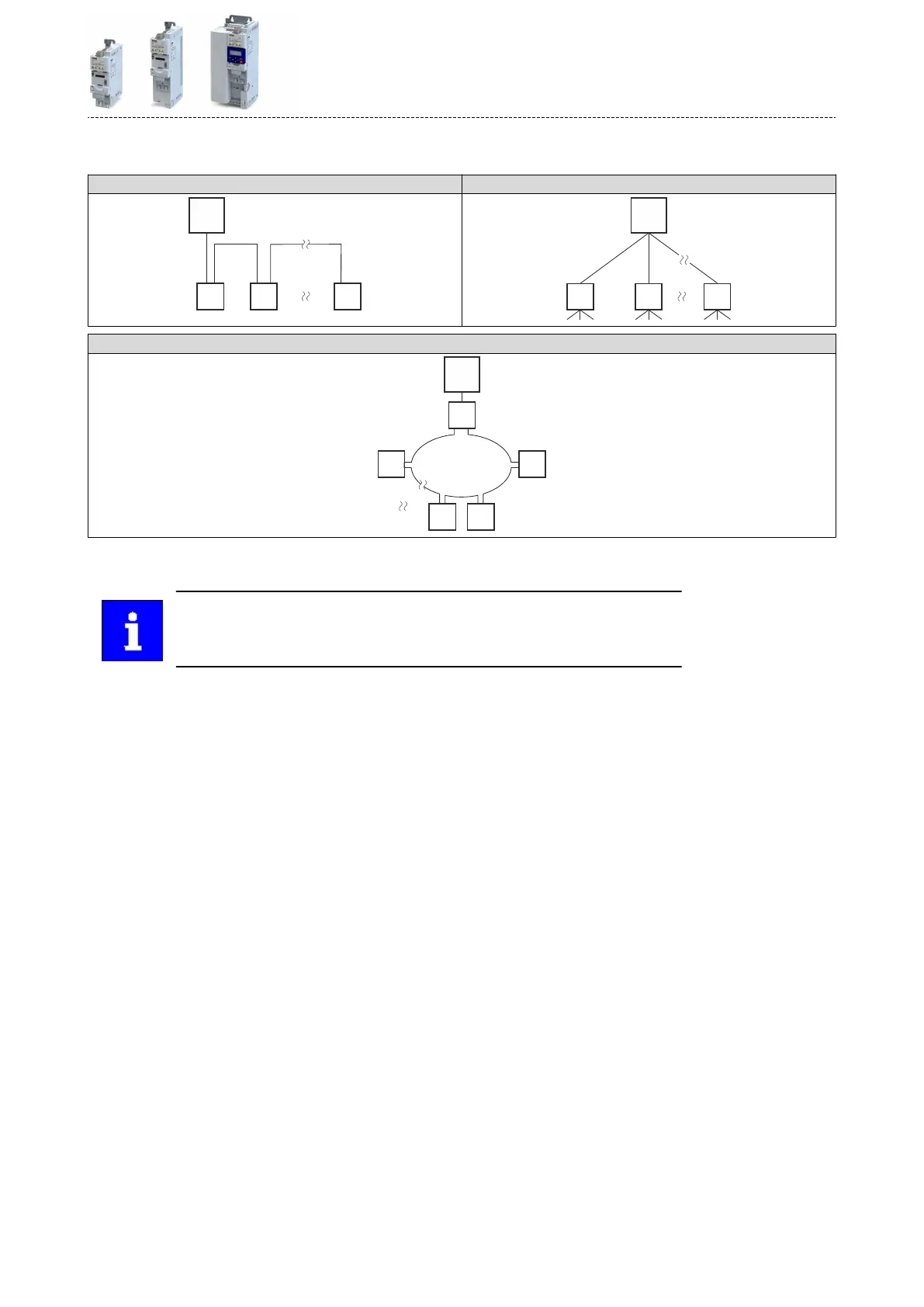

Typical topologies
Line Tree
C
R
Dn
D2D1
C
SWn
SW2
SW1
Ring
C
Dn
D2
D1
D3
R
SW
C IO controller SW Switch SCALANCE (MRP capable)
D IO device R Redundant domain
The rotary encoder switch has no funcon.
