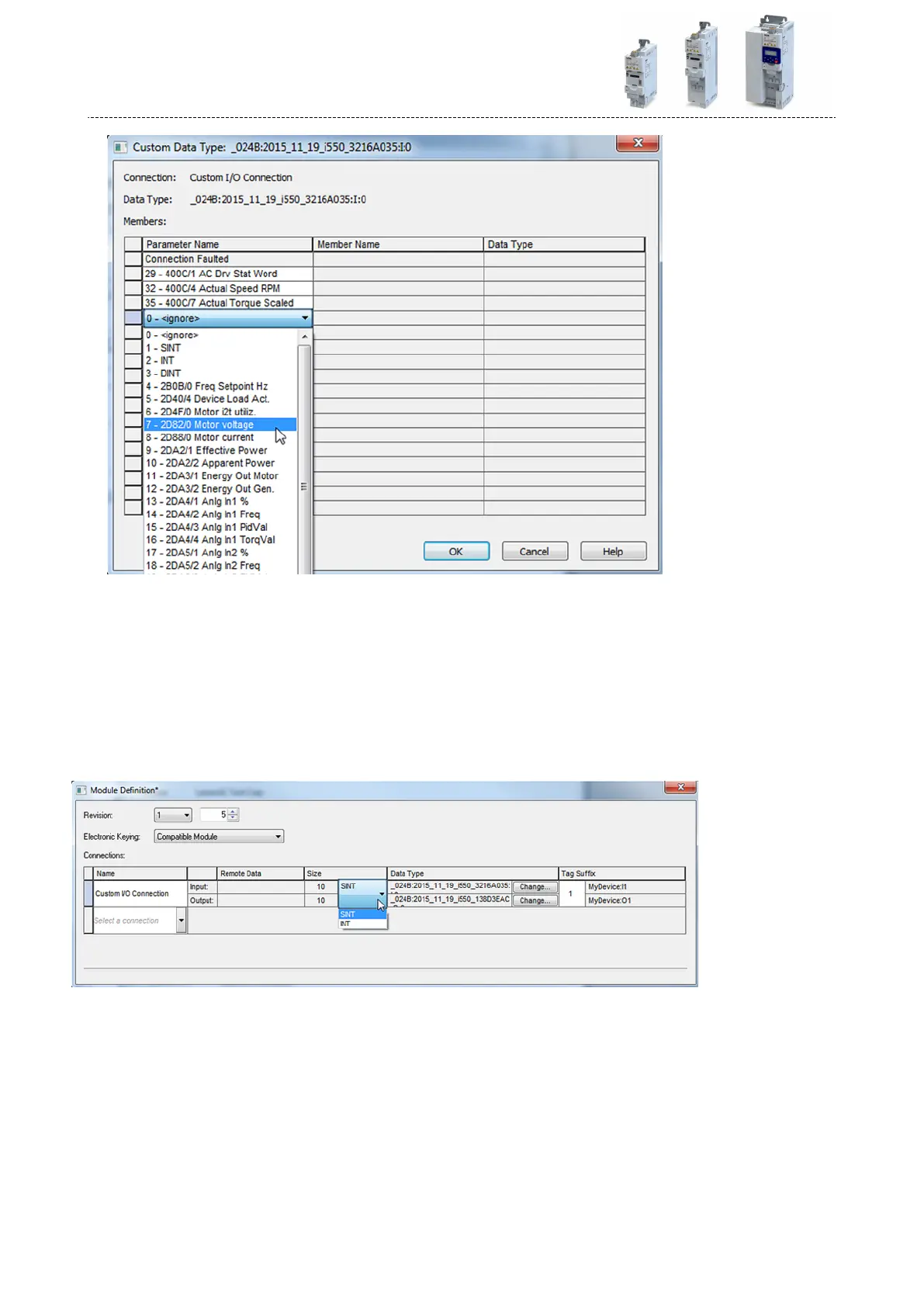

9.Group the process data according to their data length to prevent gaps.
Example:
1. All required DINT data
2. All required INT data
3. All required SINT data
At the end, a DINT value is automacally added to prevent tool zero-length problems.
Data types are provided according to the input or output data length.
Thus, e. g., no DINT type is provided at 10 bytes of input data:
The customer specic conguraon is now completed.
Conguring the network
EtherNet/IP
Process data transfer
340
