Lexmark C910 - Adjustments; High Capacity Paper Feed Timing Belt Adjustment

Repair Information 4-3
5055-01X
Adjustments
High Capacity Paper Feed Timing Belt Adjustment

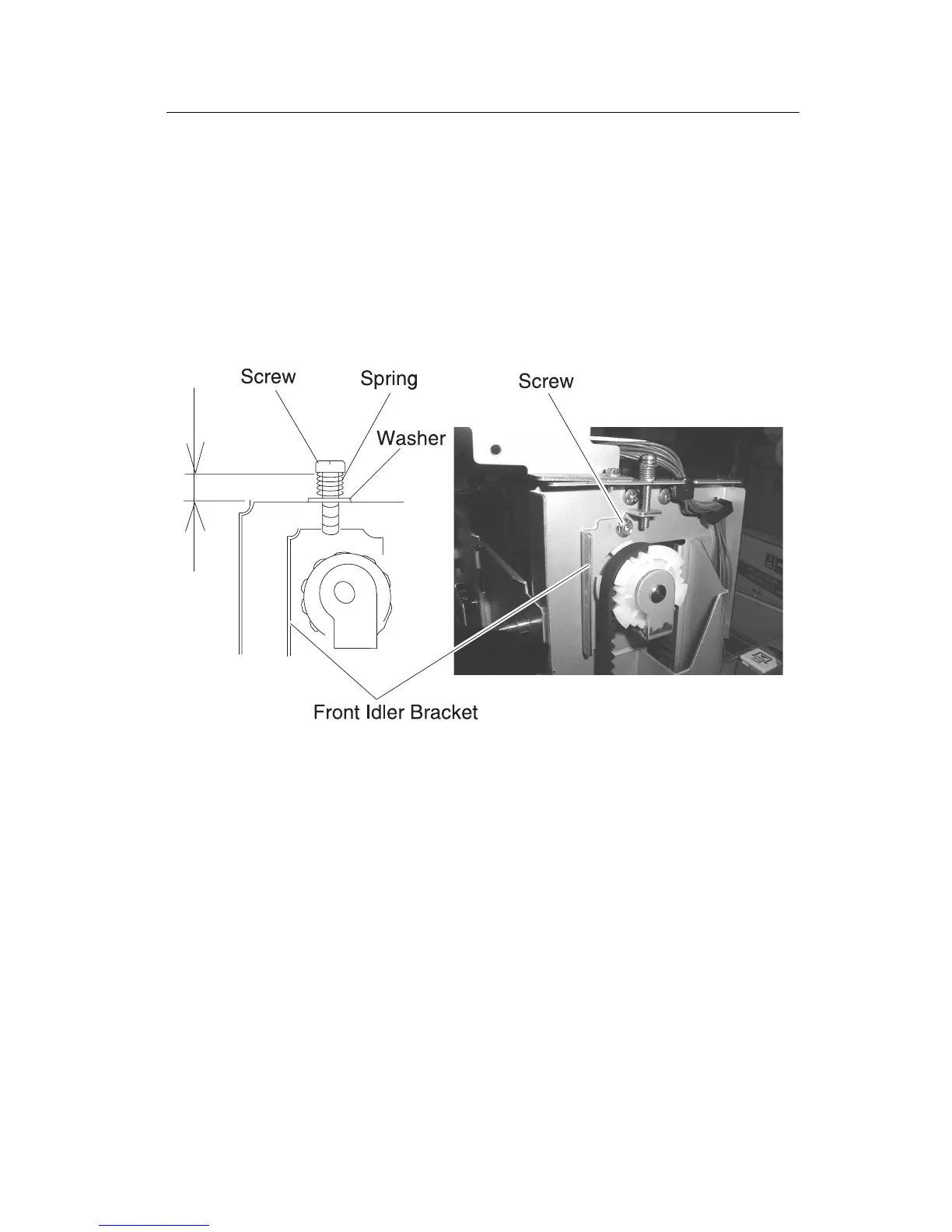

1. Secure the bracket with the screw, as shown.
2. Attach the spring and washer to the bracket with the screw.
3. Adjust the screw to 6mm +/- 1mm.
4. Tighten the screw completely.
5. Adjust the timing belt on the rear in the same manner.
