4-100 Service Manual
5055-01X
Straight Paper Exit Discharge Brush Removal

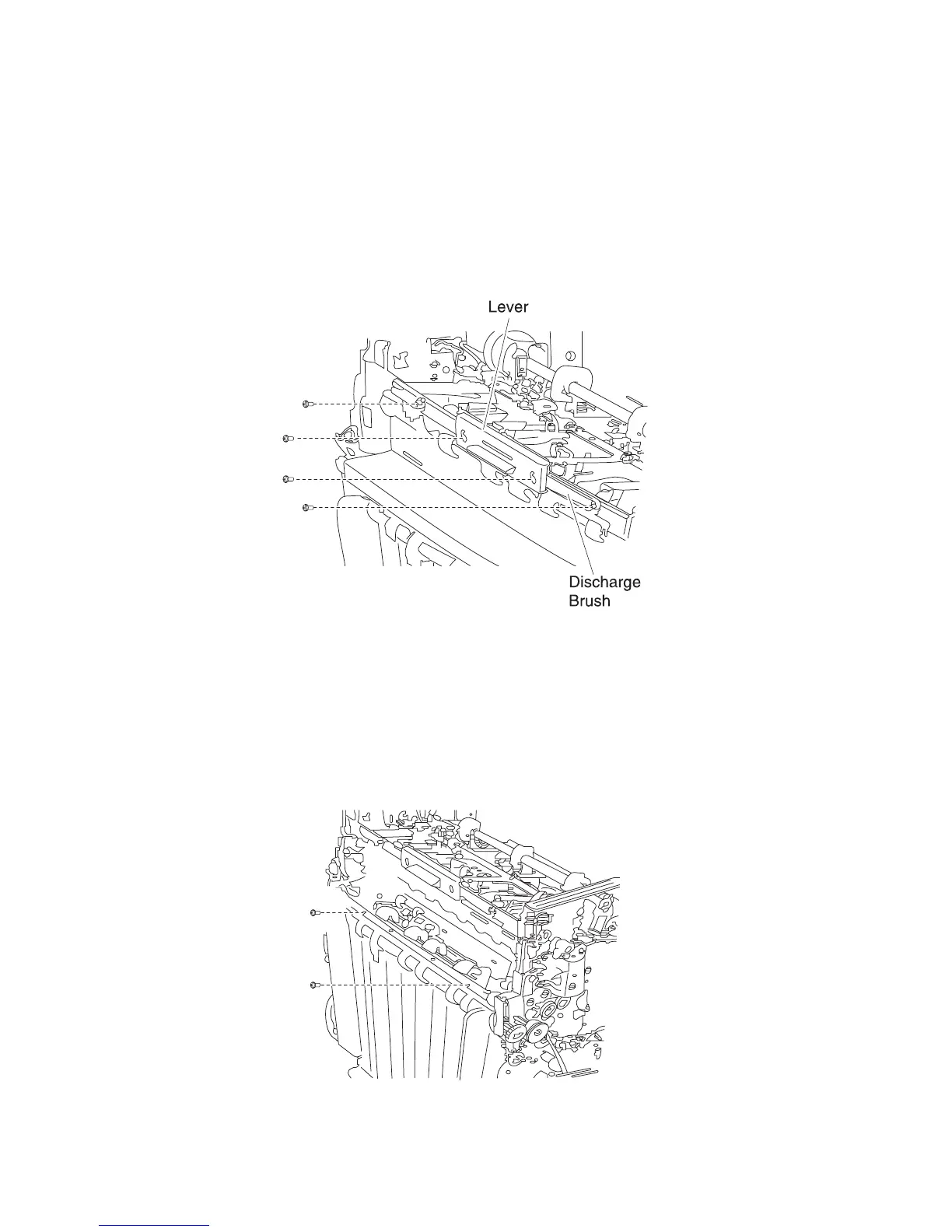

1. Remove the external covers.
2. Remove the two screws from the top cover and remove the
cover.
3. Remove the two lever screws and remove the lever.
4. Remove the two discharge brush screws and remove the brush.
Inverter Paper Exit Discharge Brush Removal
1. Remove the external covers.
2. Remove the finisher control board.
3. Remove the upper left panel.
4. Remove the two discharge brush screws and remove the brush.
