4-54 Service Manual
5055-01X
Face Up Paper Exit Assembly Removal
Face Up/Down (Flapper Detection) Sensor Removal
Face Up/Down Solenoid Removal
Paper Delivery Sensor Removal
Paper Exit Tray Switch Removal
1. Open the top unit and remove the upper cassette. Open the
duplex cover and remove the duplex unit.
2. Remove the left front cover, left side cover and rear cover.

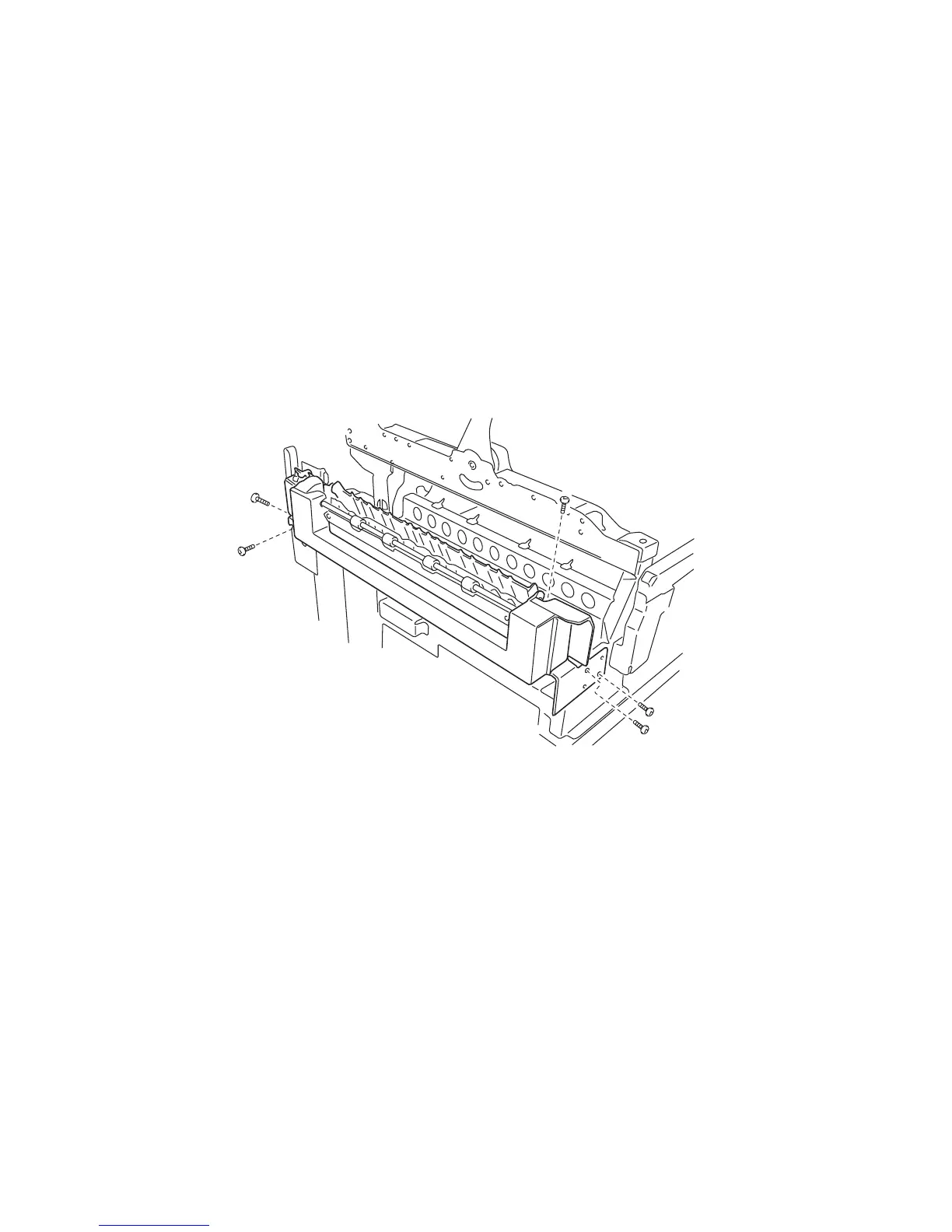

3. Remove the three screws from the face up delivery assembly
and remove the assembly.
4. Remove the paper delivery sensor from the face up paper
delivery assembly.
5. Remove the face up/down sensor from the face up paper
delivery.
6. Remove the two screws from the face up/down solenoid and the
face up paper delivery assembly. Remove the assembly.
7. Remove the screw from the paper exit tray switch and the face
up paper delivery assembly. Remove the assembly.
